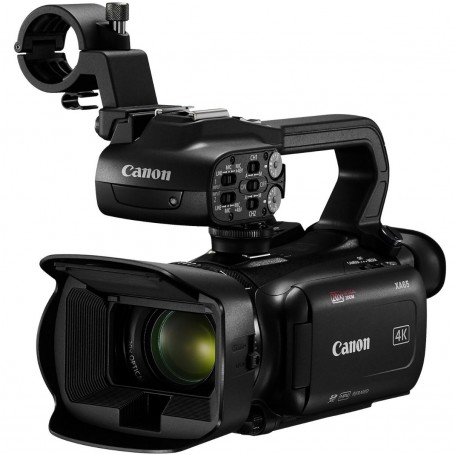

Canon XA65 Professional UHD 4K Camcorder

Discover the power of professional-grade filmmaking with the Canon XA65 Professional UHD 4K Camcorder. This compact and lightweight camcorder is perfect for documentary and journalism-style productions, offering advanced features that cater to the needs of professional videographers.

Key Features

• UHD 4K Capture: Equipped with a 1/2.3" CMOS sensor for stunning 4K video quality.
• Professional Audio Inputs: Includes two XLR audio inputs and a built-in stereo microphone.
• Multiple Output Options: Features mini-HDMI and BNC 3G-SDI outputs for versatile connectivity.
• Advanced Display: Enjoy a larger 3.5" LCD capacitive touchscreen and a high-resolution 0.36" OLED EVF.
• Recording Flexibility: Supports XF-AVC and MP4 formats, with dual SD card slots for seamless recording.
• Livestreaming Capability: Fast USB Type-C video-only output with UVC support for easy livestreaming.

Optical and Performance Specifications

The Canon XA65 is equipped with an integrated 20x 4K/HD optical zoom lens, featuring an eight-bladed circular iris for natural highlights. The camera's pro-style features include:

• Focus Modes: Hybrid, Normal, Face Only, manual focus, Instant, and Canon's Medium autofocus.
• Image Stabilization: Optical and electronic stabilization for smooth video capture.
• Slow and Fast Motion Recording: Capture dynamic scenes with full manual control.
• Infrared Mode: Shoot in low-light conditions with ease.
• DIG!C DV 6 Image Processor: Ensures high sensitivity and low noise.

Recording and Output

Record UHD 4K30 and Full HD 1080p60 videos directly to dual SD card slots, with automatic switching and simultaneous recording capabilities. The camera outputs up to 1920 x 1080p 10-bit 4:2:2 video at 59.94 fps via its mini-HDMI and 3G-SDI outputs.

Audio Features

• LPCM Audio: Up to four channels in 720p mode with manual/automatic recording levels.
• XLR Inputs: Two XLR inputs with phantom power for professional audio quality.
• Additional Audio Options: Includes a 3.5mm stereo mini input and a headphone jack.

Additional Features

Canon 4K Sensor

A 4K sensor and DIGIC DV6 image processor deliver sharp, crisp images, while the 8-blade iris creates cinema-style out-of-focus highlights. Frame your shots with the ultrabright 3.5" LCD or the OLED EVF.

On-Screen Display (OSD) "Time Stamp" Recording

Embed date, time, timecode, and other data into your original camera files, ideal for legal and law enforcement videographers.

UVC Livestreaming

Stream HD video directly via UVC to a Windows or macOS computer. Note: Audio output through USB is not supported.

Professional Input and Output

Features simultaneous backup and relay recording, infrared mode, slow and fast-motion recording, and color matching with other Canon cameras using a custom picture menu.

Technical Details

Imaging

• Sensor Type: 1/2.3" CMOS sensor
• Image Stabilization: Optical in Integrated Lens

Video Capture

• Formats: H.264 / MP4 / XF-AVC
• Resolutions:
  • 3840 x 2160 at 23.98p / 24.00p / 29.97p [150 Mb/s]
  • 1920 x 1080 at 23.98p / 24.00p / 29.97p / 59.94p [17 to 35 Mb/s]
  • 1280 x 720 at 59.94p [8 Mb/s]

Interface

• Media Slots: Dual SD/SDHC/SDXC (UHS-I)
• Video Outputs: 1 Mini-HDMI 2.0, 1 BNC (3G-SDI)
• Audio Inputs: 2 x XLR with +48 V phantom power, 1/8" TRS stereo inputs
• USB: 1 USB Type-C input

Dimensions and Weight

• Dimensions: 7.2 x 4.3 x 3.3 inches (18.3 x 10.9 x 8.4 cm)
• Weight: 750 g / 1.7 lb (body only), 1140 g / 2.5 lb (with battery and grip)

Experience professional video production at its finest with the Canon XA65 Professional UHD 4K Camcorder, designed to meet the demands of serious filmmakers and videographers.
