Description

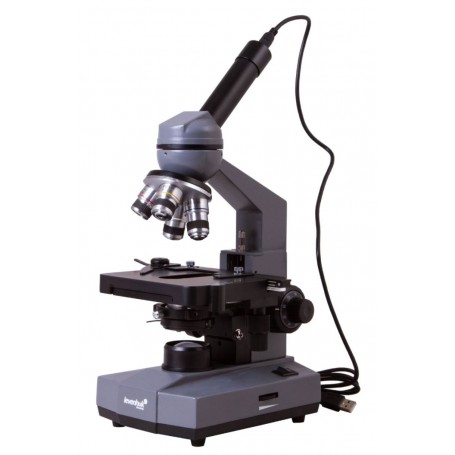

Levenhuk D320L Base Monocular Transmission Microscope with 3 MPix Camera
The Levenhuk D320L Base Monocular Transmission Microscope is a versatile tool designed for both laboratory professionals and educators. Its classic design features a rotating tube, offering a range of magnification options and essential functionalities ideal for microbiological and histological observations.
Magnification and Optics
Equipped with achromatic lenses (4x, 10x, 40x, and 100x) and a WF 10x eyepiece, this microscope provides a robust magnification range of 40x to 1000x, suitable for most microscopic examinations in the fields of microbiology and histology.
Integrated Camera
The included camera replaces the traditional eyepiece, allowing for real-time presentation and discussion of specimens. Capture high-quality photos and videos for documentation or remote learning, enhancing your microscopic study experience.
Key Features of the Levenhuk D320L Base Microscope:
- Achromatic optical system with four lenses
- Magnification range of 40x to 1000x
- 3 MPix camera for capturing photos and videos
- Halogen light source with adjustable brightness
- Rotating tube for easy observation
Technical Specifications of the Microscope:
- Magnification: 40x to 1000x
- Eyepiece: WF 10x (diameter 23.2 mm)
- Lenses: Achromatic (4x, 10x, 40x, 100x immersive)
- Mechanical object table: 110 x 125 mm
- Stage motion range: 58 x 25 mm
- Abbe condenser: with iris diaphragm
- Focus adjustment: Coaxial macro and micrometer screw
- Light source: 20W halogen lamp
- Power supply: 220 V, 50 Hz
- Body material: Metal
Camera Technical Specifications:
- Camera matrix size: 3 MPix, 2048 x 1536 px, 1/2.7"
- Single pixel diameter: 2.2 µm
- Spectral range: 380 - 650 nm
- Shutter type: Electronic, rolling shutter
- White balance: Automatic, manual
- Exposure metering: Automatic
- Supported graphic file formats: .jpg, .bmp, .png, and others
- Movie recording: Yes
- Supported video formats: .wmv, .avi, .h264, .h265
- System requirements: Windows XP (32-bit), Windows Vista/7/8/10 (32-bit or 64-bit), Mac OS X, Linux; Intel Core 2 2.8 GHz processor or higher, 2 GB RAM, USB 2.0 port, CD-ROM
- Camera power: Powered via USB connector
Kit Components:
- Levenhuk D320L Base microscope
- Achromatic lenses (4x, 10x, 40x, 100x immersive)
- WF 10x eyepiece
- Blue filter
- Immersion oil
- AC adapter
- Carrying case
- Camera
- USB cable
- Software CD
Warranty:
The Levenhuk D320L Base microscope comes with a 24-month warranty, ensuring customer satisfaction and peace of mind.
