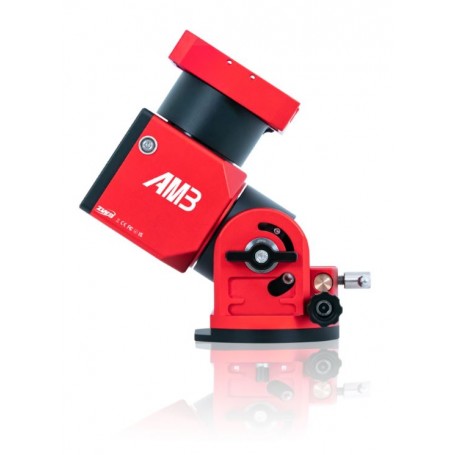

ZWO AM3 mount
The ZWO AM3 mount is a follow-up to the highly successful AM5 assembly, widely popular amongst astrophotography enthusiasts. This new model is strategically designed for those who prefer a more compact assembly optimal for guiding smaller optical tubes. The AM3 continues ZWO's commitment to delivering precision, high-quality, and reliable astrophotography equipment. Its straightforward operation and compact design make it a perfect choice for both beginners and seasoned astrophotographers. Enjoy a seamless astrophotography experience like never before with the ZWO AM3 mount.
1500 $ net price (non-EU countries)
Anatolii Livashevskyi
Product Manager
/
+48721808900
+48721808900
+48721808900
[email protected]
Description
Following the overwhelming response to the AM5 assembly among astrophotography enthusiasts, ZWO has introduced the AM3, a new model designed to cater to users seeking a compact assembly for precise guiding of smaller optical tubes.
Similar to its larger counterpart, the ZWO AM3 offers both equatorial (EQ) and azimuthal (AZ) modes of operation. The EQ mode is specifically tailored for astrophotography needs, while the AZ mode provides a convenient observation configuration. Equipped with NEMA 35 stepper motors boasting a resolution of 0.17", and a total gear ratio of 300:1, the assembly allows for full control over your setup. You can control it via a handheld controller or application, as well as through a computer with ASCOM, INDI, and SkySafari compatible software. Additionally, this top-of-the-line assembly is fully compatible with the highly popular ASIAIR™ series controllers.
Despite its remarkable capabilities, the ZWO AM3 assembly remains compact and lightweight. The head supports the attachment of counterweights, enabling you to increase the maximum load capacity from 8 to 13 kilograms.
IMPORTANT NOTICE! The preorder and pre-sale period ends on May 31, 2023. Take advantage of the promotional price, featuring a 7% discount, before the deadline!
Key Features of the ZWO AM3 Assembly:
Lightweight equatorial assembly with high load capacity, offering azimuth mode functionality.
Exceptional driving precision thanks to top-quality stepper motors and a wave gear with a 300:1 ratio.
Individually corrected periodic error within the range of ±20".
Control options include a hand controller or a mobile application using WiFi or Bluetooth connectivity.
An integrated brake protects the optical tube from potential damage during power failures.
Full compatibility with ASIAIR™ computers and ASCOM, INDI, and SkySafari drivers.
Technical Specifications:
- Mounting Type: Equatorial (EQ)
- Mounting Modes: Equatorial (EQ) / Azimuthal (AZ)
- Maximum Load without Counterweights: 8 kg
- Maximum Load with Counterweights: 13 kg
- Optical Tube Mount: Losmandy / Vixen
- Maximum Length of Counterweight Rod: 20 cm
- Maximum Counterweight Weight: 5 kg
- Latitude Adjustment Range: 0 - 90°
- Azimuth Adjustment Range: ±10°
- Right Ascension (RA) Axis Drive: NEMA 35 Stepper Motor with 100:1 Ratio and Brake
- Declination Axis Drive (DEC): NEMA 35 Stepper Motor
- Stepper Motor Resolution: 0.17"
- Drive Transmission: Wave Gear with Toothed Belt, 300:1 Ratio
- Periodic Error: <±20"
- Duration of a Single Period: 288 s
- Maximum Rotation Speed: 6°/s
- Scroll Speeds: 0.5x, 1x, 2x, 4x, 8x, 20x, 60x, 720x, 1440x
- Connectors: USB, ST-4 (Guider), Hand Controller Connector, Power Jack
- WiFi Module: Yes
- Bluetooth Module: Yes
- Communication with ASIAIR™ Module: Wired / Wireless
- Supported Libraries: ASCOM, INDI, SkySafari
- Power Supply: 12 V, 3 A
- Power Consumption (Standby / Tracking / GoTo): 12 V, 0.386 A / 12 V, 0.58 A / 12 V, 1.7 A
- Permissible Operating Temperatures: -15°C to 40°C
- Head Weight: 3.9 kg
Included Set Components:
- ZWO AM3 Assembly
- Transport Box
- USB 2.0 Cable (2m)
- Hand Controller
- Controller Cable
- M6 Hex Key
- M4 Hex Key
- Documentation
Warranty:
The ZWO AM3 Assembly comes with a 24-month guarantee.
