Hikmicro Gryphon HD LRF GH35L thermal imaging camera + illuminator 850 nm
Anatolii Livashevskyi
Product Manager
/
+48721808900
+48721808900
+48721808900
[email protected]
*** This product is available with delivery restrictions, ensuring that we can only ship it within Poland.
Description

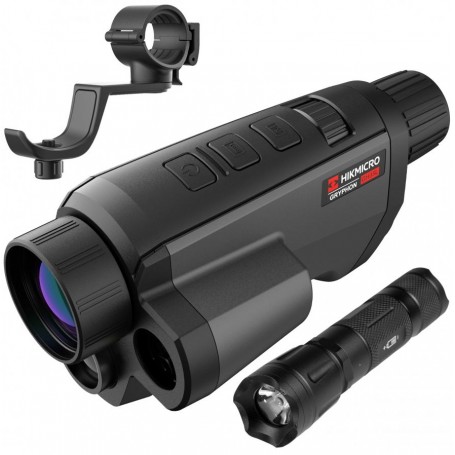

HIKMICRO Gryphon HD LRF GH35L: Advanced Thermal Imaging Camera with 850 nm Illuminator
Released in 2021, the HIKMICRO Gryphon HD LRF GH35L revolutionizes thermal imaging, offering unparalleled observation capabilities for specialized tasks. More than just a thermal camera, the Gryphon is a comprehensive observation tool designed to excel in any scenario, ensuring you make the most of every moment.
Key Features:
Thermal Imaging Excellence:- Equipped with state-of-the-art 12μm technology detectors
- Available in two resolutions: 384 × 288 or 640 × 512
- Remarkable 50 Hz refresh rate
- High-sensitivity sensor with full HD resolution
- Illuminates dark environments up to several hundred meters with an additional infrared illuminator (required, not included)
- Fusion of thermal and digital images for a new perspective
- Superimposed images offer detailed HD previews day and night (additional IR required, not included)
- Integrated rangefinder with a range of up to 600 meters
- IP67 standard for complete dust and waterproofing up to 1 meter
- High-quality workmanship for challenging conditions
- Powered by a single 18650 cell for up to 5 hours of operation
- Rechargeable battery replaceable with another of the same standard
- USB-C port for external power sources like power banks
- 16GB built-in memory for photos and videos
- Connect to the T-Vision app for remote operation (iOS and Android)
Enhance Your Experience:
Stay Updated:- HIKMICRO Sight app for seamless software updates
- Redirect sight's image to your smartphone
- Connect one sighting device to multiple phones
- Supports landscape or horizontal viewfinder image
- Control via smartphone using HIKMICRO Sight app
- Adjust settings like brightness, zoom, and color modes
- Upload and share experiences via the HIKMICRO Sight app
- Save video and audio recordings on your phone
Technical Specifications:
- Digital Zoom: 2/4/8x
- Display Resolution: 1024×768 px
- Internal Memory: 16 GB
- Linear Field of View at 100m: 13.12m
- Max. Operating Time: 5 hours
- Max. Range: 3655m
- Operating Temperature: -20°C to 55°C
- Optical Zoom: 3.35x
- Sensor Resolution: 384×288 px
- USB Output: Yes
- IP Protection Class: IP67
- Overall Length: 158mm
- Weight: 510g
- Width: 57mm
- Manufacturer: HIKVISION, China
- EAN: 6974004640705
- Supplier Symbol: HM-TS23-35QG/WLV-GH3
Embrace the revolution in observation technology with the HIKMICRO Gryphon HD LRF GH35L, a versatile and powerful thermal imager that unlocks endless possibilities for specialized tasks.
