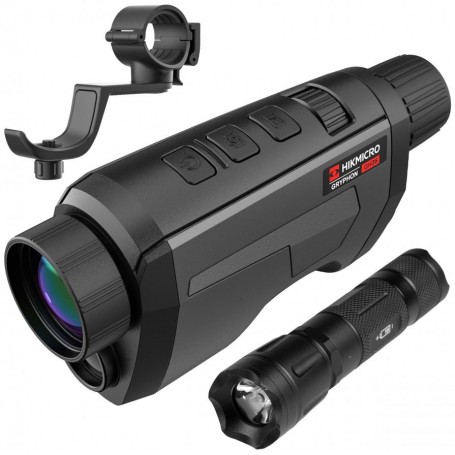

Hikmicro Gryphon HD GQ35 thermal imaging camera + illuminator 850 nm

HIKMICRO Gryphon HD GQ35 Thermal Imaging Camera with 850 nm Illuminator

The HIKMICRO Gryphon, introduced in 2021, is more than a thermal imaging camera; it's a comprehensive observation device built for specialized tasks. Its full-body design and versatile features make it possible for users to accomplish more with less effort.

Key Features:

• 3-in-1 Functionality:
• Thermal Imaging: Powered by advanced 12μm technology, the Gryphon offers a choice between two detector resolutions: 384×288 or 640×512, with a 50 Hz refresh rate. This ensures enhanced thermal imaging capabilities, making it impossible for anything to remain hidden, whether it's day or night.
• Night Vision: Equipped with a high-sensitivity sensor in full HD resolution and an optional infrared illuminator (not included), the Gryphon can illuminate dark environments up to several hundred meters.
• Fusion Technology: Combines thermal and digital images to provide a unique tool for detailed previews in HD resolution, both day and night (requires additional IR, not included). This technology reveals details often missed by traditional thermal imaging cameras.

Power and Storage:

The Gryphon is powered by a single 18650 battery, offering up to 5 hours of continuous use. The battery is easily replaceable with another of the same type. The device also supports USB-C charging from external power sources like a power bank and includes 16GB of internal memory for storing photos and videos. For remote operation, connect the Gryphon to the T-Vision app, available on iOS and Android.

Durable Design:

With an IP67 rating, the HIKMICRO Gryphon is both dustproof and waterproof up to 1 meter, ensuring high-quality performance in various conditions.

HIKMICRO Sight App Features:

• Software Updates: The app keeps your device updated, notifying you of the latest versions and allowing seamless upgrades with a single click.
• Real-time Sharing & Remote Control: Share real-time screen views with companions and control the viewfinder remotely. Adjust brightness, zoom, color modes, and calibration directly from your smartphone.
• Social Media Sharing: Easily upload and share your Gryphon experiences. Save videos and audio recordings on your phone to relive your favorite moments.

Technical Specifications:

• Angular Field of View: 13.12°
• Digital Zoom: 2x/4x/8x
• Dioptric Correction: ±191.9
• Display Resolution: 1024×768 pixels
• Internal Memory: 16GB
• Lens Size: 35mm
• Linear Field of View at 100m: 19.19m
• Max. Operating Time: 5 hours
• Max. Range: 3655 meters
• Operating Temperature: -20°C to 55°C
• Optical Zoom: 2x
• Refresh Rate: 50 Hz
• Sensor Resolution: 640×512 pixels
• USB Output: Yes
• IP Protection Class: IP67
• Maximum Height: 61mm
• Overall Length: 158mm
• Weight: 510g
• Width: 61mm
• Manufacturer: HIKVISION, China
• EAN: 6974004640859
• Supplier Symbol: HM-TS26-35QG/WV-GQ35

The HIKMICRO Gryphon is a groundbreaking tool in observation technology, offering unmatched versatility and performance for professional or recreational use. It's designed to transform how we observe and interact with our environment.
