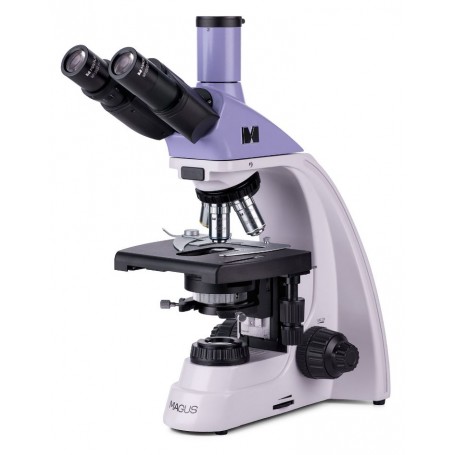

MAGUS Bio 250TL Advanced Biological Microscope

The MAGUS Bio 250TL Advanced Biological Microscope is expertly designed for the study of thin sections and smears of biological samples. Leveraging brightfield microscopy in transmitted light, it is ideal for laboratory analysis, research, and educational purposes.

Optics

The microscope features a trinocular head with two eyepiece tubes for direct observation and a vertical tube for digital camera integration (camera not included). The eyepiece tubes are inclined at 30° for comfortable extended use and can be rotated 360° to accommodate different observer heights. A diopter adjustment ring is available on the left tube for fine adjustments.

• Equipped with a 5-slot revolving nosepiece, including four infinity plan achromatic objectives with room for an additional objective.
• Magnification ranges from 40x to 1000x, expandable with additional objectives.

Illumination

The microscope uses a 3-watt LED mounted at the base, providing bright and even lighting with a consistent color temperature regardless of brightness adjustments. The LED has an extended operating life of 50,000 hours and is powered by an AC power supply.

• Features Köhler illumination setup with adjustable Abbe condenser, aperture, and field diaphragms.
• Quickly switch between darkfield and phase contrast techniques using the provided slider slot.

Stage and Focusing Mechanism

The stage design omits a positioning rack to minimize desktop space usage during observations. The mechanical sample attachment is removable for manual scanning. Focus adjustments are precise with both coarse and fine focusing knobs, located conveniently on both sides for ergonomic access.

• Coarse focusing includes a lock knob and tension adjustment for smooth operation.

Accessories

Enhance the capabilities of the MAGUS Bio 250TL with a range of optional accessories, including various eyepieces, objectives, calibration slides, digital cameras, and devices for darkfield, polarization, and phase contrast techniques.

Key Features

• Trinocular head with 360° rotating eyepiece tubes and diopter adjustment.
• Infinity plan achromatic optics in a 5-slot revolving nosepiece.
• 3W LED light source with adjustable brightness and a 50,000-hour lifespan.
• Supports additional accessories for advanced research techniques.
• Ergonomic design for comfortable, long-term use.

The Kit Includes

• Base unit with integrated power input and light source.
• Trinocular head and revolving nosepiece.
• Four infinity plan achromatic objectives (4x, 10x, 40x, 100x).
• Two eyepieces (10x/22mm) with long eye relief, eyecups, and filters.
• C-mount camera adapter, immersion oil, hex key wrench.
• AC power cord, dust cover, user manual, and warranty card.

Specifications

• Product ID: 82891
• Brand: MAGUS
• Warranty: 5 years
• EAN: 5905555018058
• Package Size (LxWxH): 43.1x27.1x63 cm
• Shipping Weight: 10.5 kg
• Type: Biological, light/optical
• Head: Trinocular with 360° rotation
• Magnification: 40–1000x (expandable)
• Eyepiece Tube Diameter: 30 mm
• Condenser: Adjustable Abbe condenser with darkfield and phase contrast capability
• Illumination: 3W LED, lower location
• Power Supply: 220±22V, 50Hz, AC
• Dimensions: 200x436x400 mm
• Weight: 8 kg
