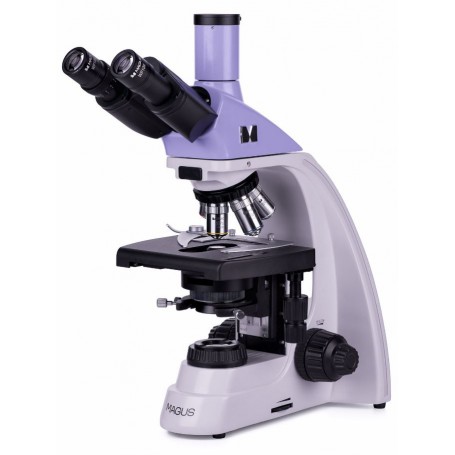

MAGUS Bio 230T Advanced Biological Trinocular Microscope

The MAGUS Bio 230T Advanced Biological Trinocular Microscope is designed for laboratory and research applications across various fields including medicine, pharmaceuticals, forensics, and biotechnology. Ideal for observing flat biological, translucent, and transparent specimens like thin sections and smears, this microscope is equipped with achromatic objectives and a halogen bulb for brightfield microscopy. Its versatile design allows the integration of additional accessories for advanced microscopy techniques such as darkfield, phase contrast, and polarized light.

Optics

• Trinocular Head: Features a vertical tube for mounting an optional digital camera, ideal for creating digital archives and displaying images on external monitors. The head offers a 360° rotation for user height adjustment and includes a diopter adjustment ring on the left tube.
• Revolving Nosepiece: Supports up to five objectives, with four included in the kit. The infinity-corrected objectives offer magnification from 40x to 1000x, extendable up to 2000x with optional eyepieces.

Illumination

• Light Source: A 30W halogen bulb provides a warm spectrum of light, reducing eye strain during prolonged use and ensuring high brightness and contrast.
• Abbe Condenser: Height-adjustable and centerable, it supports Köhler illumination and includes a slot for phase and darkfield sliders, facilitating easy transitions between techniques.

Stage and Focusing Mechanism

• Stage: Features a mechanical design without a positioning rack, allowing smooth specimen movement. The mechanical attachment is removable for manual scanning.
• Focusing: Coaxial coarse and fine focusing knobs provide smooth and effortless adjustments, with a lock knob and tension adjustment for the coarse focus.

Accessories

Enhance the capabilities of the MAGUS Bio 230T with optional accessories like eyepieces, objectives, digital cameras, calibration slides, darkfield condensers, and devices for polarized light and phase contrast microscopy.

Key Features:

• Trinocular head with vertical tube for digital camera mounting
• 360° rotation for user height adjustment
• Infinity achromatic objectives with a revolving nosepiece for up to 5 objectives
• Diopter adjustment ring on the left tube
• 30W halogen bulb with AC power supply, equipped with an Abbe condenser for darkfield and phase contrast sliders
• Coaxial coarse and fine focusing knobs with lock knob and tension adjustment
• Optional accessories for enhanced performance

The Kit Includes:

• Base with power input, transmitted light source, focusing mechanism, stage, condenser, and revolving nosepiece
• Trinocular head
• Infinity achromatic objectives: 4x/0.1, 10x/0.25, 40x/0.65 (spring-loaded), and 100x/1.25 (spring-loaded)
• Eyepieces 10x/18mm with long eye relief (2 pcs.)
• Eyecups (2 pcs.)
• Filters (4 pcs.)
• C-mount camera adapter
• Bottle of immersion oil
• Hex key wrench
• AC power cord
• Dust cover
• User manual and warranty card

Specifications

• Product ID: 82894
• Brand: MAGUS
• Warranty: 5 years
• EAN: 5905555017938
• Package Size (LxWxH): 43.1x27.1x63 cm
• Shipping Weight: 10.5 kg
• Type: Biological, light/optical
• Head: Trinocular
• Head Inclination Angle: 30°
• Magnification: 40–1000x (basic), up to 2000x with optional eyepieces
• Interpupillary Distance: 48–75 mm
• Stage Size: 180x150 mm
• Focus: Coaxial coarse and fine focusing
• Illumination: Halogen, 12V/30W
• Operating Temperature Range: 5° to +35°C
• Weight: 8 kg
• Dimensions: 200x436x400 mm

This microscope is designed for experienced users and professionals, offering an advanced setup for detailed laboratory and medical research.
