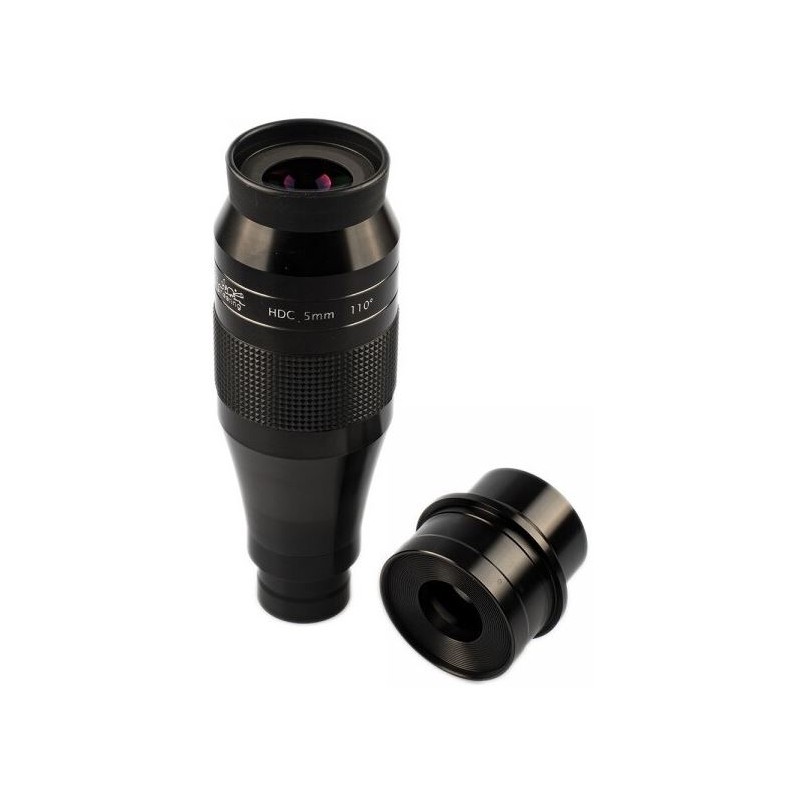

APM Eyepiece XWA 5mm 110°

Wide-angle eyepieces designed for optimal image geometry and color correction! The robust eyepiece body is anodized to a high standard, the lens system is fully multi-coated for exceptional light transmission, and the lens edges are blackened to minimize reflections.

302.54 $
Tax included

245.97 $ net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

Wide-angle eyepieces designed for optimal image geometry and color correction! The robust eyepiece body is anodized to a high standard, the lens system is fully multi-coated for exceptional light transmission, and the lens edges are blackened to minimize reflections.

Ideal for deep sky observation at high magnifications, these eyepieces ensure that larger celestial objects like nebulae and star clusters remain clearly visible in the view.



SPECIFICATIONS:

Capacity:

Focal length: 5 mm

Telescope connection: 2"

Apparent field of view: 110°

Eye relief: 15 mm

Optical system coating: Fully multi-coated (FMC)

Number of lenses: 9

Number of groups: 6

Field stop diameter: 13 mm

Special Features:

Adjustable eyecup: Yes (folding)

Filter thread: Yes

Inert gas charge: No

Camera recording thread: Yes

General:

Type: Eyepiece

Build type: XWA

Length: 175 mm

Diameter: 57 mm

Weight: 429 g

Series: HDC
