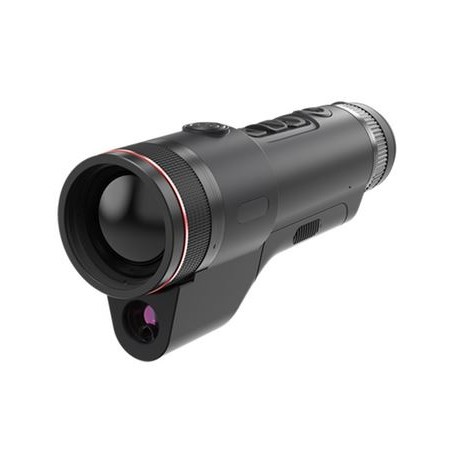

Guide TJ1250LP Handheld Thermal Imaging Monocular

The TJ LRF Pro Series Thermal Imaging Monocular

The TJ LRF Pro Series delivers a fully upgraded experience, enhancing picture clarity, observation comfort, and intelligent functionality. Equipped with a 12μm high-sensitivity infrared detector, this device reveals lifelike details in the darkest conditions. The 0.5" ultra-large AMOLED display offers a visual experience akin to a home theater, while the built-in 1500m laser rangefinder provides quick, accurate measurements with a single button press for secure, smooth adventures.

• NETD: 18mK
• Resolution: 1280×1024@12μm
• Display: 0.5'' AMOLED 1600×1200
• Detection Range: Up to 2600m/2800yd

Mega-Pixel IR Detector with 18mK Sensitivity
The TJ LRF Pro Series uses an industry-leading 1280×1024@12μm infrared detector with an NETD down to 18mK, making it capable of capturing even slight temperature differences in total darkness.

Large, High-Definition Display
The 0.5'' AMOLED screen with a 1600×1200 resolution creates a stunning visual effect, simulating a 90” display from 2.5 meters away, ensuring unmatched clarity and comfort during extended observation.

1500m Laser Rangefinder for Precision
With an upgraded laser rangefinder module, the TJ LRF Pro Series achieves a maximum measurement range of 1500 meters, setting a new standard for accurate long-distance targeting.

50mm F1.0 Lens for Extensive Detection Range
Offering multiple focal lengths, the TJ LRF Pro Series is ideal for long-range observation and hunting, with a maximum detection range of 2600m using the 50mm F1.0 lens.

Blind-Mountable Universal Battery Design
Designed with safety in mind, this monocular uses standard 18650 batteries with a protective circuit. Simply orient the batteries with opposite poles when replacing them, eliminating the need to remember polarity.

Ambidextrous Design for Ease of Use
Designed for both left- and right-handed users, this device offers easy operation in the dark, with interchangeable eye masks and hand straps for flexible use.

Audio-Enabled Video Recording
Capture both photos and videos with audio thanks to the built-in microphone, allowing for complete documentation of your experiences.

Included in the Box

• Device
• Wrist strap
• Battery charger
• 2 × 18650 batteries
• 5V2A adapter (US, UK, Australia, Europe)
• USB Type-C cable
• Quick use guide
• Warranty card

Technical Specifications

Model: TJ1250LP
Sensor:

• Type: Uncooled VOx Infrared Detector, 8 to 14μm
• Resolution: 1280×1024@12μm
• NETD: 18mK
• Frame rate: 50Hz

Lens:

• Objective lens: 50mm, F1.0
• Field of view: 17.5°×14.0°
• FOV at 100m: 31×25 meters
• Magnification: 2.36x~37.76x
• Detection range: 2600m/2800yd

Display:

• Type: 0.5'' AMOLED, 1600×1200 resolution
• Color palettes: White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia
• Eyepiece: Eye relief: 16mm; Diopter: -6 to +6; Zoom: 18x

Hardware:

• Laser rangefinder: 1500m/1630yd
• WiFi: 2.4G, 5G
• Interface: USB Type-C (Power supply/USB 2.0)
• Additional features: Microphone, Compass, Gyroscope, Bluetooth

System:

• Recording: Photo/Video with audio recording
• Storage: 256GB

Power:

• Battery type: 2 replaceable 18650 batteries
• Operating time: 6 hours

Environmental:

• Operating temperature: -20°C to 50°C / -4°F to +122°F
• Encapsulation: IP67 waterproof

Physical Dimensions:

• Weight: 689g (24.30 oz)
• Dimensions: 247×101×70mm (9.72×3.98×2.76 in)
