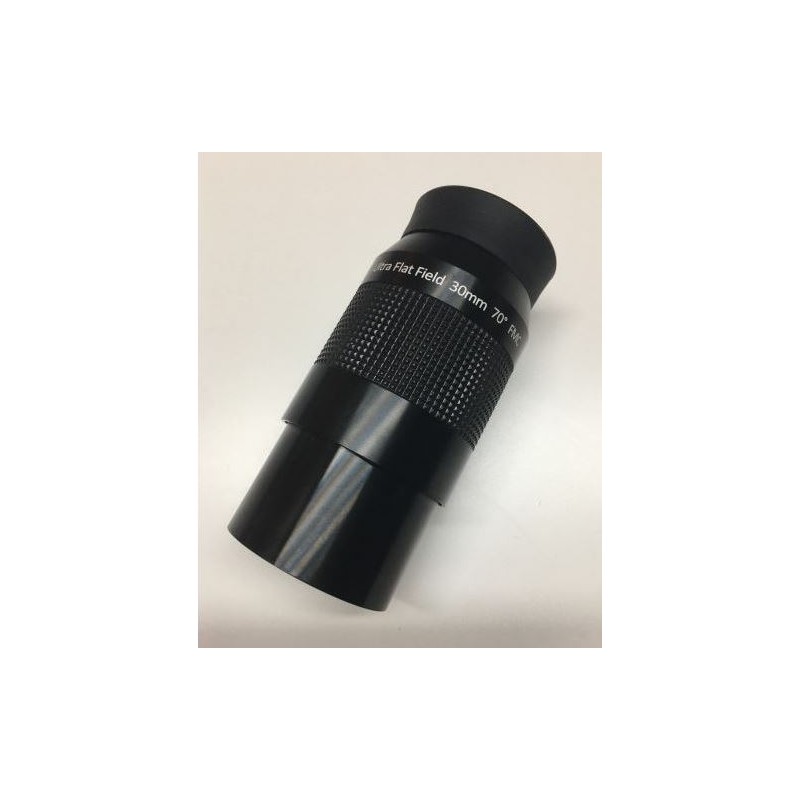

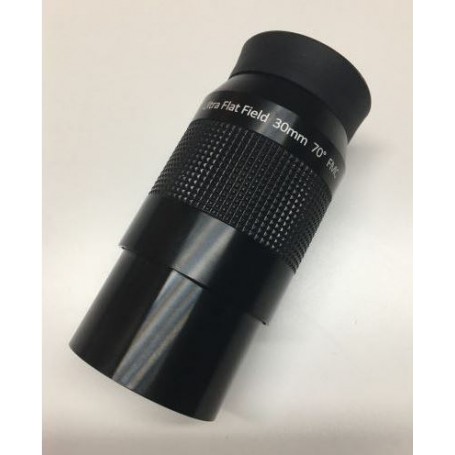

APM Eyepiece Ultra-Flat Field 30mm 70° 2" (60560)
The UltraFlat Field Eyepiece is engineered to deliver a flat, distortion-free image across the entire visible field of view. Its advanced design eliminates field curvature at the edges, ensuring sharp and clear visuals even when used with very fast telescopes. The compact and high-quality construction makes it an excellent choice for precise astronomical observations.
294.29 $
Tax included
239.26 $ net price (non-EU countries)
Anatolii Livashevskyi
Product Manager
/
+48721808900
+48721808900
+48721808900
[email protected]
Description
UltraFlat Field Eyepiece for Distortion-Free Observations
The UltraFlat Field Eyepiece is engineered to deliver a flat, distortion-free image across the entire visible field of view. Its advanced design eliminates field curvature at the edges, ensuring sharp and clear visuals even when used with very fast telescopes. The compact and high-quality construction makes it an excellent choice for precise astronomical observations.
With oversized eyepiece lenses, it provides the largest possible field of view and generous eye relief, making it suitable for spectacle wearers. The foldable rubber eye cup enhances comfort during prolonged viewing sessions.
All lenses are fully multi-coated (FMC) to maximize light transmission, while blackened lens edges reduce stray light and improve contrast. The plug-in sleeve includes a filter thread, adding versatility to its functionality.
Specifications:
- Focal Length: 30 mm
- Apparent Field of View: 75°
- Eye Relief: 22 mm
- Lens Configuration: 9 lenses in 5 groups
- Field Stop Diameter: 38 mm
- Lens Diameter: 32 mm
- Optical Coating: Fully Multi-Coated (FMC)
- Filter thread compatibility
- Adjustable (folding) eyepiece cup
- Type: Eyepiece (SWA design)
- Telescope Connection: 2"
- Weight: 556 g
- Series: Ultra Flat Field
