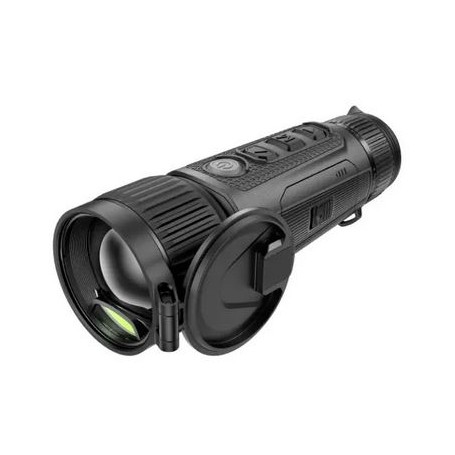

Nocpix Vista S50R Thermal Monocular
The NocPix Vista is an advanced thermal imaging device designed for immersive viewing experiences and high-quality night-time observations. It combines cutting-edge technology with user-friendly features to provide exceptional performance in various conditions.
43236.83 kr net price (non-EU countries)
Anatolii Livashevskyi
Product Manager /
+48721808900 +48721808900
+48721808900
[email protected]
Description
The NocPix Vista is an advanced thermal imaging device designed for immersive viewing experiences and high-quality night-time observations. It combines cutting-edge technology with user-friendly features to provide exceptional performance in various conditions.
Key Features:
Immersive Vision System:
-
1.03-inch round AMOLED display with 2560×2560 resolution
-
8 mm exit pupil diameter and Pure Vision mode for comfortable, immersive viewing
Advanced Sensor Technology:
-
Internally developed NETD ≤15mK 1280×1024@12μm sensor
-
High-quality imaging for easy recognition of animal silhouettes, anatomy, and behaviors
Integrated Laser Rangefinder:
-
2-in-1 LRF with 1200m range
-
True optical axis alignment in a compact, lightweight design
Smooth Motion Capture:
-
60 Hz refresh rate for fluid visualization of moving subjects
Enhanced Light Gathering:
-
F0.9 lens design for 20% increased light absorption compared to F1.0 lenses
Long-lasting Power:
-
Dual replaceable IBP-7/4400mAh battery packs
-
Up to 9 hours of operation, maintaining 90% capacity at -20°C
Diverse Color Palettes:
-
7 color options including eye-friendly red and green monochrome modes
User-Friendly Design:
-
Silent buttons for discreet operation
-
Rotating eye mask to prevent light leakage
-
TPU leather-like texture for comfortable grip
Specifications:
-
Detector Resolution: 1280x1024 pixels
-
Detector Pixel Size: 12 μm
-
NETD: ≤ 15 mK
-
Frame Rate: 60 Hz
-
Lens: 50mm F0.9
-
Field of View (H×V): 17.5° x 14.0° / 31m x 25m @100m
-
Digital Zoom: 2~40×
-
Detection Range: 2600m (Target size: 1.7m×0.5m, P(n) 99%)
-
Eyepiece Diameter: 25mm
-
Exit Pupil Size: 8mm
-
Diopter Adjustment: -5~+3 D
-
Display Type: AMOLED
-
Display Resolution: 2560x2560 pixels
-
Battery: 4400mAh rechargeable batteries
-
Max. Operating Time (22°C): 4.5 hours
-
Laser Rangefinder Range: 1200m
-
Microphone: Supported
-
Storage Capacity: 64 GB
-
IP Rating: IP67
-
Operating Temperature: -20°C to +50°C
-
Weight: 690g
-
Dimensions: 201x70x82mm
-
Laser Safety Class: Class 1
The NocPix Vista combines advanced thermal imaging capabilities with user-centric design, making it an ideal tool for extended night-time observations and wildlife monitoring.
