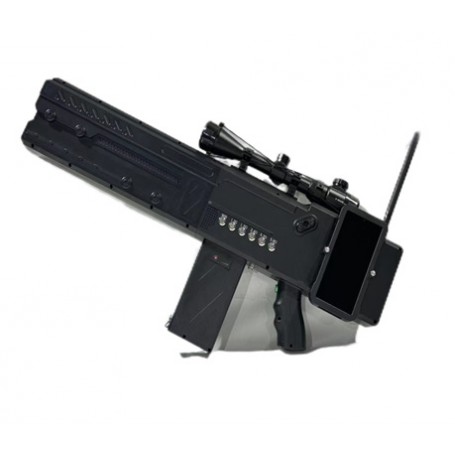

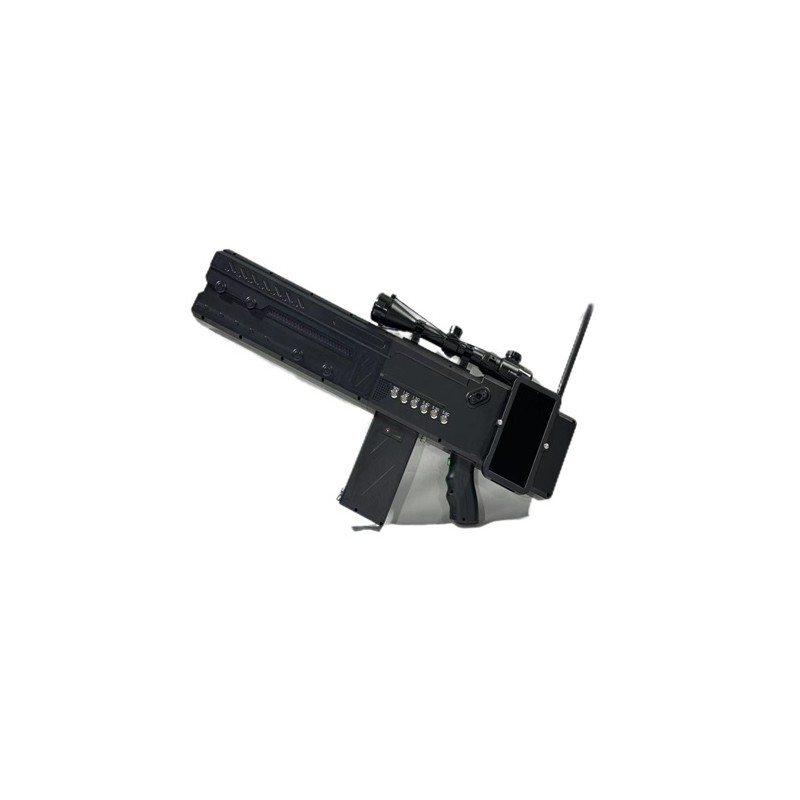

XBY Xiangboyi XY2501 jammer+detector gun

XBY Xiangboyi XY2501 jammer+detector gun

1. Activation of emergency landing protocol for DJI-type drones: Activate frequencies 1.5G, 2.4G, and 5.8G.
2. Initiate forced landing procedure for Dotcom-type drones: Enable frequencies 1.5G, 2.4G, 5.2G, and 5.8G.
3. Remote control band 433M: Commonly utilized in homemade drones, TV remotes, car keys, and children's toy flying machines.
4. Remote control band 900M: Predominantly used in industrial-grade drones such as police-grade, customized, and large-scale drones.
5. 1.2G: Utilized in China's BeiDou navigation system and expected to integrate into the drone industry as a secondary positioning system alongside 1.5G (GPS).
6. 1.4G: Mapping band for specialized UAVs, although currently less prevalent in the industry, its future application remains probable.
7. Key detection bands: 2400MHz-2500MHz; 5725MHz-5875MHz. The system features networking capabilities and software adjustment and upgrading functionalities.

Interference Performance Parameters:

Working Principle: Radio suppression

Target of Action: Interference with UAV mapping, flight control links, and navigation signals

Operating Bands (optional):

• operating frequency 840-930MHz, Average output power 40dBm
• operating frequency 1160-1280MHz, Average output power 40dBm
• operating frequency 1550-1630MHz, Average output power 40dBm
• operating frequency 2380-2500MHz, Average output power 46dBm
• operating frequency 5150-5300MHz, Average output power 46dBm
• operating frequency 5720-5880MHz, Average output power 46dBm

Coverage Angles: Horizontal -45° to 45°, Vertical -45° to 45°

Maximum Number of Simultaneous Emission Bands: 6

Number of Simultaneous Countermeasures: ≥10 flights

Effective Countermeasure Range: ≤2km

Jamming Success Rate: >99%

Intercept Response Time: 1.5s

Operating Temperature: -35℃ to 55℃

Power Consumption: <170

Supply Voltage: 220V AC

Main Body Size: 710290130±5mm

Overall Weight: ≤5.5kg

Power Supply: AC220V-DC24V

Operating Hours: ≥25 minutes/battery/each

Materials: Aluminum alloy + high-performance plastics

Antenna Type: Directional antenna

Detecting Performance Parameters:

Detection Band: 300MHz-6000MHz

Scanning Time: ≤0.25s for 120M bandwidth scan

Fast Detection Performance: Detection and localization distance ≥2km for stored UAV models in open areas

Complex Track Detection Performance: Detection and localization distance ≥1km for stored UAV models in open areas

Detecting Angle: 360°

Multi-target Detection: ≥6 simultaneous detections

Minimum Detection Height: 0m

Detection Azimuth Angle: <3°

Identification Distance: ≥2km

Recognition Time: Synchronized identification with detection

Connection Method: Network Connection WiFi Hotspot

Operating Temperature: -20℃ to +45℃

Power Supply Method: Built-in lithium polymer battery

Black and White List Function: Supported

HD GIS System Features: Provides surrounding information, equipment deployment points, etc.

Logging and Playback Functions: Records drone intrusion details including angle, alarm time, frequency information, and enables playback of intrusion records

Statistical Reports and Alarm Functions: Provides statistical reports of drone intrusions and audible/visual alarms

Positioning and Auto-correction Function: GPS positioning with automatic North calibration

Drone Signal Extraction and Addition Functions: Automatically collects unknown drone signals, extracts parameters, and adds them to the drone feature library

Working Time: 4 hours

Software Database: Supports detection of various drone models including DJI, Dao Tong, etc.

Operating Mode: CRPC + message-level protocol parsing techniques

Characteristics: Precise positioning and identification of drones and flyers within 10 meters, accurate tracking, and identification of body serial numbers

Location Refresh Time: ≤3s

Operating System: Android

Operating Method: Capacitive touch screen

Monitor: 6 inches

Antenna Type: Omni-directional antenna
