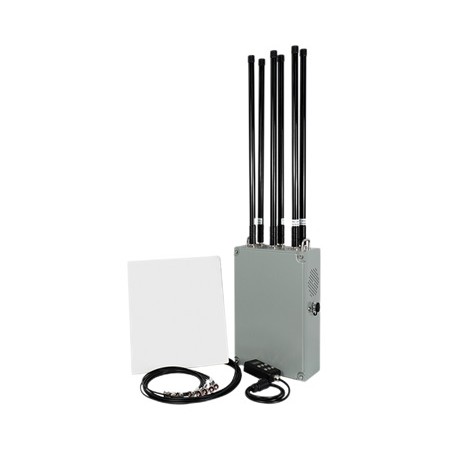

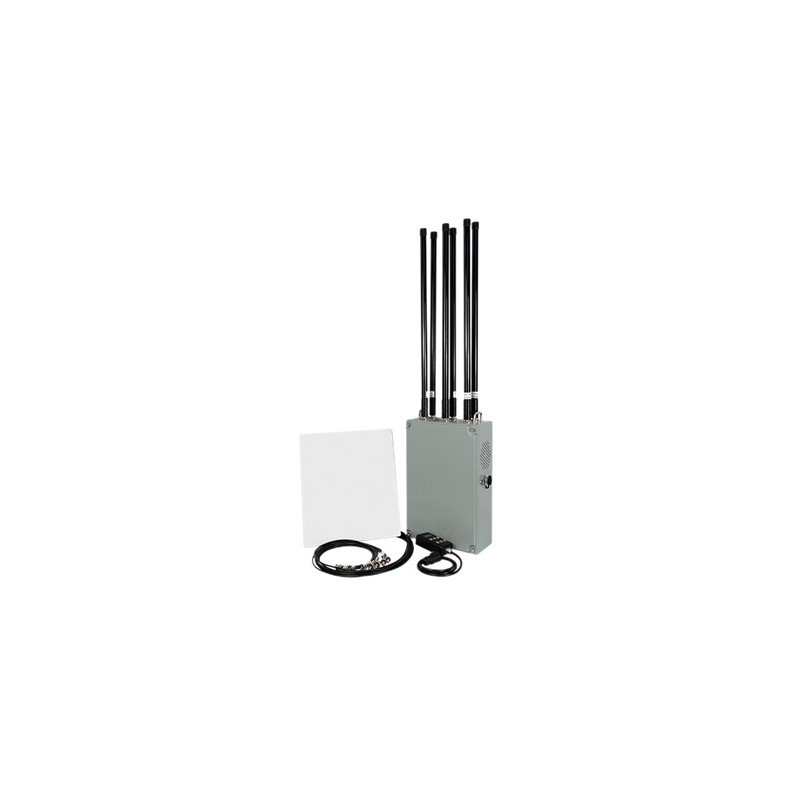

XBY Xiangboyi XY2320 - Cabinet/backpack anti drone device

XBY Xiangboyi XY2320 - Cabinet/backpack anti drone device

1. Forced landing of DJI-type drones on frequencies: 1.5G, 2.4G, and 5.8G. Counteraction against DJI-class drones on frequencies: 2.4G and 5.8G.
2. DOTON drone forced landing frequencies: 1.5G, 2.4G, 5.2G, and 5.8G. Disruption of drones on frequencies: 2.4G, 5.2G, and 5.8G.
3. The 433M band serves as the remote control frequency for homemade drones, commonly found in devices like TV remotes, car keys, and children's toy drones.
4. The 900M band functions as the remote control frequency for industrial-grade drones, typically utilized by entities such as law enforcement, customs, and large-scale drones.
5. China's domestically developed BeiDou navigation system operates on the 1.2G frequency, poised to integrate into the drone industry as a secondary positioning system alongside 1.5G (GPS), as indicated in current data and future plans.
6. The 1.4G frequency is reserved for specialized UAV applications with limited industrial use, although its relevance cannot be discounted.

Performance Parameters:

Operational Principle: Radio jamming suppression

Targets: UAV map transmission, flight control links, navigation signals

Frequency Bands and Power Outputs (optional):

• 400-450MHz: 43dBm
• 840-930MHz: 46dBm
• 1160-1280MHz: 43dBm
• 1400-1500MHz: 46dBm
• 1550-1630MHz: 43dBm
• 2380-2500MHz: 46dBm
• 5150-5300MHz: 46dBm
• 5720-5880MHz: 46dBm

Coverage Angle: Horizontal: -45° to 45°; Vertical: -45° to 45°

Maximum Simultaneous Transmission Channels: 8

Simultaneous Jamming Capacity: ≥30

Coverage Distance: ≤2.2km

Jamming Success Rate: >99%

Interception Response Time: <3s

Operating Temperature: -35℃ to 55℃

Power Consumption: <300W

Power Supply Voltage: 220V AC

Dimensions: 400300140±5mm // 400280220mm

Weight: ≤17kg

Power Source: AC220V-DC24V

Operational Duration: ≥60 minutes

Material: Aluminum + high-performance plastic

Antenna Type: Directed or Omni-directional
