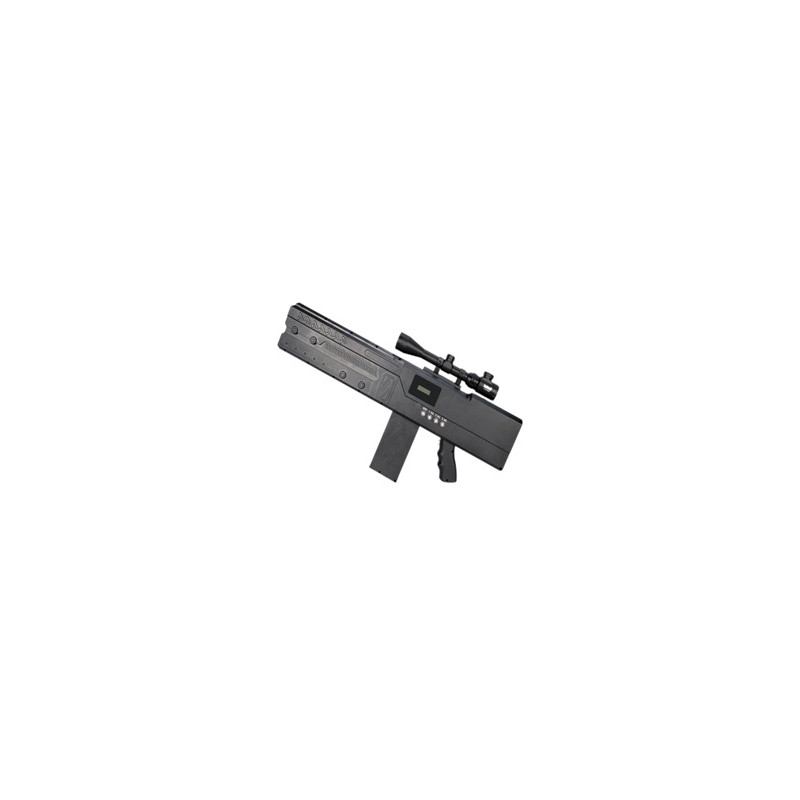

Sinton STN-G3000-7 - 7 frequency channel anti drone gun

Sinton STN-G3000-7 - 7 frequency channel anti drone gun

1. Forced landing capabilities are effective against DJI-type drones operating on 1.5G, 2.4G, and 5.8G frequencies. Additionally, drive-off functions target DJI-class drones operating on 2.4G and 5.8G frequencies.
2. DOTON drones can be forced to land when operating on 1.5G, 2.4G, 5.2G, and 5.8G frequencies. Drive-off capabilities are aimed at drones operating on 2.4G, 5.2G, and 5.8G frequencies.
3. The 433M remote control band is commonly utilized for homemade drones, as well as household devices like TV remotes, car keys, and children's toy flying machines.
4. The 900M remote control band is typically employed in industrial-grade drones used by entities such as law enforcement, customs, and in large-scale applications.
5. China's domestically developed BeiDou navigation system operates on the 1.2G frequency, serving as a supplementary positioning system for drones alongside 1.5G (GPS). Its integration into the drone industry is expected in the future.
6. UAVs utilizing the 1.4G frequency represent a specialized category with limited industrial applications, although their usage cannot be discounted.

Performance Parameters:

Working Principle: Radio jamming suppression

Targeted Actions: Disruption of UAV map transmission, flight control links, and navigation signals

Operating Frequency Bands (optional):

• 433M: Output at 400-450MHz, Average power output of 43dBm
• 900M: Output at 840-930MHz, Average power output of 43dBm
• 1.2G: Output at 1160-1280MHz, Average power output of 43dBm
• 1.4G: Output at 1350-1450MHz, Average power output of 43dBm
• 1.5G: Output at 1550-1630MHz, Average power output of 45dBm
• 2.4G: Output at 2380-2500MHz, Average power output of 46dBm
• 5.2G: Output at 5150-5300MHz, Average power output of 46dBm
• 5.8G: Output at 5720-5880MHz, Average power output of 46dBm

Coverage Angle: Horizontal: -45° to 45°; Vertical: -45° to 45°

Maximum Simultaneous Transmission Channels: 8

Simultaneous Jamming Quantity: ≥10

Coverage Distance: Up to 2km

Jamming Success Rate: >95%

Interception Response Time: <3s

Operating Temperature: -35℃ to 55℃

Overall Power Consumption: <150

Power Supply Voltage: 220V AC

Size: 71029070±5mm

Weight: ≤5.5kg

Power: AC220V-DC24V

Working Time: ≥20 minutes

Material: Aluminum + high-performance plastic

Antenna Type: Directed
