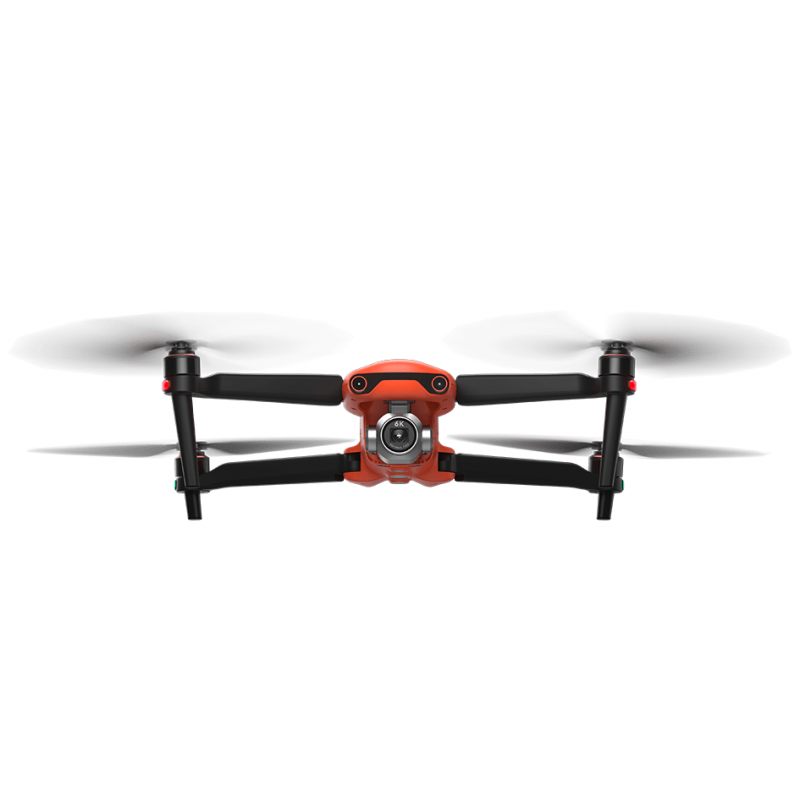

Autel Robotics EVO II Pro V3 Rugged Bundle

Exceptional Image Quality

With Sony's new 20 megapixel 1-inch CMOS image sensor, the EVO II Pro V3 supports up to 6K video with greater dynamic range, stronger noise suppression, and higher frame rates. The f/2.8-f/11 adjustable aperture and 44000 maximum ISO gives photographers enhanced creative control.

Moonlight Algorithm 2.0

Excell in night photography with EVO II Pro V3's 6K 1" CMOS and Autel Robotics' Moonlight Algorithm 2.0.

4K HDR Video

The EVO II Pro V3 pairs the brilliance of 4K clarity with the brightness, color and detail of HDR. Previously hidden areas of shadow and sunlight are now full of clarity and detail.

Post-Production Flexibility With 12-Bit DNG

The EVO II Pro V3 can take 12-bit DNG photos and is capable of recording up to 68.6 billion colors with 64 times the color rendering power of 10-bit, allowing greater flexibility in post-production.

Hyper-Lapse Photography In 6K

You can enjoy your favorite moments at any time, free from post-processing as 6K mobile time-lapse as video can be exported right after recording, and JPEG/RAW format are also supported.

SkyLink 2.0 Video Transmission

The EVO II Pro V3 is upgraded with Autel's all new SkyLink 2.0 Video Transmission technology.

9+ Miles

Fly farther with HD video transmission up to 9 miles.

QHD

Get on-screen QHD video within 0.6 mile. Obtain critical details with a resolution of 2560 x 1440 for a total of 3,686,400 pixels–about 1.8x the pixels of an FHD monitor.

2.4GHz / 5.8GHz / 900MHz

Supports tri-band communication and can automatically frequency hop for maximum anti-interference capability.

*900MHz is only applicable for FCC countries.

360° Obstacle Avoidance

Equipped with 19 groups of sensors including 12 visual sensors,the main camera, ultrasound, IMUs and other sensors enable building of three-dimensional maps and path planning in real time.

Maximum Performance Endless Possibilities

• 40 minutes Maximum Flight Time
• 9.3miles (15km) Maximum Transmission Range
• 27mph (12m/s) Maximum Wind Resistance
• 45mph (20m/s) Maximum Flight Speed

Autel Smart Controller SE

Smart Controller SE comes with a 6.4-inch OLED touch screen and latest gen 8-core processor for HD image transmission. SkyLink 2.0 Transmission technology guarantees long-distance operations from up to 15km away and enhances anti-interference abilities with triple band frequency hopping. The customized Android system allows for additional flexibility with 3rd party Apps and an IP43 rating ensures all weather performance.

Live Deck 2: Stream Anywhere

EVO II Pro V3 supports multi-port HDMI real-time output to meet the requirements of projection monitoring and live streaming with Live Deck 2.

• 1080P/60FPS Video Stream
• Three Auto-Switch Bands
• 7.5 Miles Transmission Range
• 5-Hour Battery Life
• IP43 Resistance

IN THE BOX

EVO II Pro Aircraft *1

Remote Controller*1

Battery*2

Charger*1

Power cable *1

Propellers*1 pair

Micro-USB cable

Remote control cable*2 (standard micro usb connector/Type c connector)

Carry Case*1

Technical Specifications

Aircraft

Takeoff weight 2.63 lbs (1191 g)

Max takeoff weight 4.41 lbs (1999 g）

Wheelbase 15.6 inches (397 mm)

Size(L*W*H) 9.1*5.1*4.3 inches (folded); 18*22*4.3 inches (unfolded)

Maximum service ceiling altitude 7000 m

Max ascent speed 8 m/s (Ludicrous)

Max descent speed 4 m/s (Ludicrous)

Max horizontal flight speed 20m/s (Ludicrous)

Max flight distance (no wind) 25 km

Max tilt angle 33° (Ludicrous)

Max angular velocity 120°/s

Max flight time (no wind) 40 min

Max hovering time (no wind) 35 min

Operating temperature range -10℃ ~ 40℃

Maximum resistance to wind 27mph, 12 m/s (Take-off and landing)

Operating frequency 902-928MHz (FCC Only) ; 2.400-2.4835GHz ; 5.725-5.850GHz (non-Japan) ; 5.650-5.755GHz (Japan Only)

Transmission power 900M FCC/ ISED：≤31dBm ; 2.4G FCC/ ISED：≤32dBm SRRC/CE/MIC/RCM：≤20dBm 5.8G (non-Japan) ; 5.7G (Japan) FCC/ISED/SRRC/MIC：≤33dBm CE/ RCM：≤14dBm

Hovering accuracy Vertical: ±0.1 m (when the visual positioning is working normally); ±0.5 m (when GPS works normally) Horizontal: ±0.3 m (when the visual positioning is working normally); ±1.5 m (when GPS works normally)

GNSS GPS/Beidou/Glonass/Gallieo

Internal storage 8GB

SD storage max. support 256GB (UHS-3 or Class 10)

Gimbal

Gimbal 3-axis stabilization

Mechanical range Tilt: -135° to +45°; Pan: -100° to +100°

Controllable rotation range Tilt: -90° to +30°; Pan: -90° to +90°

Max control speed (Tilt) 300°/s

Angular Vibration Range ±0.005°

Remote controller and image transmission

Operating frequency 902-928MHz (FCC Only), 2.400-2.4835GHz, 5.725-5.850GHz (non-Japan), 5.650-5.755GHz (Japan Only)

Transmission power FCC：≤33dBm, CE：≤[email protected]，≤[email protected], SRRC：≤[email protected]，≤[email protected]/5.7G

Max Transmission Distance (unobstructed, free of interference) FCC: 9.3 miles (15 km), CE: 5 miles (8 km)

Display screen 2340x1080 60fps

Battery 1900mAh

Operating time ~2 hours (Max. Brightness), ~3 hours (50% Brightness)

Charging time 90 minutes

Internal Storage ROM 128GB + expandable storage via micro-SD card

Sensing system

Sensing system type Omnidirectional sensing system

Forward Accurate measurement range: 0.5-18 m, Effective sensing speed:<12m/s, Viewing angle: Horizontal: 60°, Vertical: 80°

Backward Accurate measurement range: 0.5-16 , Effective sensing speed:<12m/s, Viewing angle: Horizontal: 60°, Vertical: 80°

Upward Accurate measurement range: 0.5-10 m, Effective sensing speed:<5m/s, Viewing angle: Horizontal: 65°, Vertical: 50°

Downward Accurate measurement range: 0.5-10 m, Effective sensing speed:<5m/s, Viewing angle: horizontal: 100°, vertical: 80°

Left and right Accurate measurement range: 0.5-10 m, Effective sensing speed:<5m/s, Viewing angle: horizontal: 65°, vertical: 50°

Operating Environment Forward, Backward and Sides: Surface with clear pattern and adequate lighting (lux > 15) ; Upward: Detects diffuse reflective surfaces (>20%) (walls, trees, people, etc.) ; Downward: Surface with clear pattern and adequate lighting (lux > 15) Detects diffuse reflective surfaces (>20%) (walls, trees, people, etc.)

Camera

Sensor 1 inch CMOS; 20M pixels

Lens FOV: 82°, Equivalent focal length: 29 mm, Aperture: f/2.8 - f/11,  Focus range: 0.5 m to infinity

ISO range Video: 100-44000, Photo: 100-6400

Shutter speed Photo mode: 1/8000 ~ 8s, Other: 1/8000 ~ 1/frame rates

Zoom 1-16x (up to 3x lossless zoom)

Photo mode Single shot/Burst shooting/AEB/Time Lapse/HDR

Maximum photo size 5472*3648 (3:2), 5472*3076 (16:9), 3840*2160 (16:9)

Image Format JPG (default) / DNG / JPG+DNG

Photo mode 5472x3076P30/P25/P24, 3840x2160P60/P50/P48/P30/P25/P24, 2720x1528P60/P50/P48/P30/P25/P24, 1920x1080P60/P50/P48/P30/P25/P24

Video format MP4 / MOV (MPEG-4 AVC/H.264, HEVC/H.265)

Max bitrate 120Mbps

Supported file system FAT32/exFAT

Battery

Capacity 7100 mAh

Voltage 11.55 V

Battery type LiPo 3S

Energy 82 Wh

Weight 365 g

Charging temperature range 5℃ to 45℃

Storage temperature and humidity -10~30℃，65±20%RH

Recommended storage temperature 22-28℃

Max charging power 93W

Charging time 90 minutes

Charger

Input 100-240 V, 50/60 Hz, 1.5A

Output 13.2 V ⎓ 5 A, 5V⎓3A 9V⎓2A 12V⎓1.5A

Voltage 13.2±0.1V

Rated power 66W

Voltage 13.2 V

Charging temperature range 5℃ to 45℃
