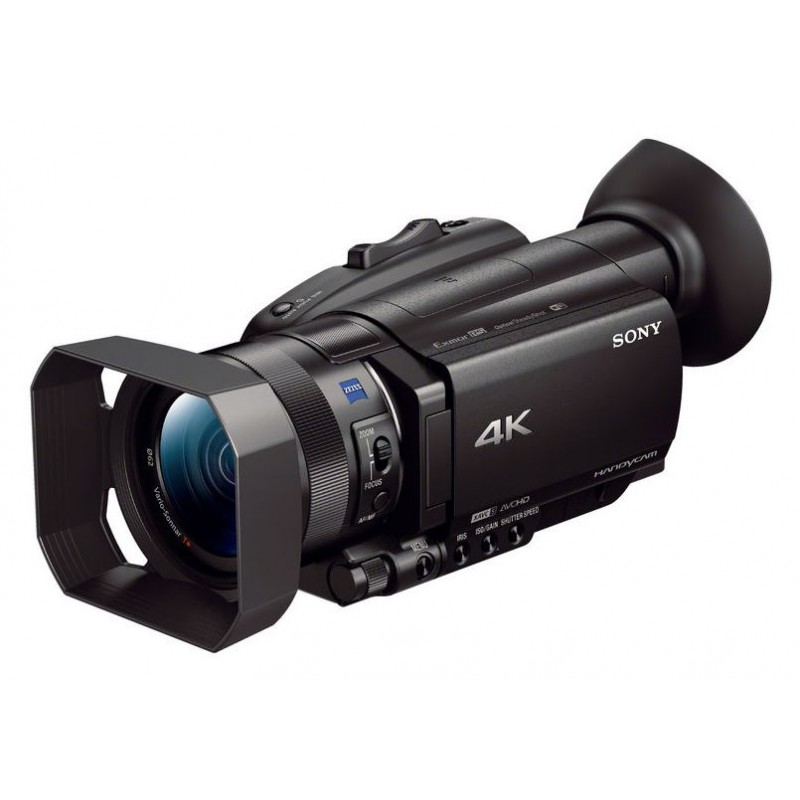

Sony FDR-AX700B.CEE 4K Camcorder

4K and HDR are now available in an easy-to-use camcorder format with the Sony FDR-AX700 4K Camcorder. Using the HLG format, HDR (High Dynamic Range) images can be recorded and processed for playback on HDR screens. Compared to SDR (Standard Dynamic Range) formats, HDR offers increased color and contrast representation that is immediately noticeable. Dual SD card slots, an LCD and viewfinder, manual controls, a 12x zoom range, and a comfortable form factor make the AX700 an all-around camera for anything from family events to professional filmmaking and videography.

4K recording has made focusing more difficult. Missed focus becomes exponentially more obvious with the increase in resolution over HD formats. Sony's phase detection autofocus uses 273 points to lock onto and track subjects as they move through the frame. Focus speed and tracking can be adjusted to fit your project. So, whether you're tracking fast-moving vehicles or actors moving through the frame, the AX700 will be able to keep up and maintain sharp focus.

For more advanced users, Sony included S-Log2 and S-Log3 picture profiles alongside their S-Gamut color space. Enabling this functionality grants you greater control over the final image through post-production processing.

Recording in HDR using Hybrid-Log Gamma (HLG) enables you to record and display wider ranges of exposure and color than normally available in SDR media. Without extra processing, HDR recordings can be enjoyed by simply connecting the camera to an HLG-compatible Sony TV using a USB cable.

XAVC S Recording Format

The XAVC S format is used for 4K and HD recording. Bit rates of up to 100 Mbps for 4K, and 50 Mbps for Full HD recording, ensure detailed video with minimal compression noise. 100 Mbps recording is also available at 120 fps in Full HD, so high-quality slow-motion sequences can be created during post-processing.

Proxy Recording

Speed up your editing and delivery with the option of onboard proxy recording. Lower-resolution proxy files are captured alongside full-resolution 4K video, for easy sharing and online collaboration, as well as more efficient editing on under-powered computers. When you're ready, simply substitute the proxy files with the full-resolution ones to finalize your video.

Slow and Quick Motion

Enjoy creative ways to express time's passage. The Super Slow Motion and Slow & Quick Motion let you capture motion in the blink of an eye, at up to 960 fps (40x super slow motion), or in compelling time-lapse sequences, captured at 1 fps for playback at up to 60x natural speed.

S-Gamut and S-Log Picture Profiles

S-Gamut and S-Log shooting gives you more flexibility to custom-tailor your images by performing color grading in post-production. S-Log3 and S-Log2 gamma provide wide dynamic range shooting (1300%), to minimize blown highlights and crushed blacks.

While exposure may be more difficult to judge off the LCD and EVF, exposure zebras are available, indicating areas of overexposure using clear stripes on the image preview. An adjustable level lets you accurately dial in the ideal exposure for everything from skin tones to sunlit landscapes.

Timecode / User Bit

For professional workflows and multicamera editing requirements, standard SMPTE Timecode and User Bit can be included with your recordings. With embedded timecode, synchronizing multiple cameras for editing is incredibly simple, while custom eight-digit User Bit codes allow fast indexing and media management on larger projects.

Technical Detail

Sensor 1 x 1" CMOS

Pixel Gross Not specified by manufacturer

Effective Pixels 14.2 MP (16:9 Video)

14.2 MP (16:9 Photo)

12 MP (3:2 Photo)

Optics

Focal Length 9.3 - 111.6mm

35mm-Equivalent Focal Length 29 - 348 at 16:9 (Video/Photo)

32.8 - 393.6 at 3:2 (Photo)

Maximum Aperture f/2.8 - f/4.5

Minimum Focusing Distance 0.4" / 1.0 cm

Angle of View Not specified by manufacturer

Zoom Optical: 12x

Clear Image Zoom: 18x 4K

Clear Image Zoom: 24x (in HD)

Digital: 192x

Filter Size 62 mm

Built-In ND Filters Clear, 1/4, 1/16, 1/64

Recording

System NTSC

Recording Media Memory Stick PRO Duo, Memory Stick PRO-HG Duo, Memory Stick XC-HG Duo, SD/SDHC/SDXC

Video Format 3840 x 2160 at 24, 30 fps (100, 60 Mbps XAVC S)

1920 x 1080p at 120 fps (100, 60 Mbps XAVC S)

1920 x 1080p at 24, 30, 60 fps (16, 50 Mbps XAVC S)

1280 x 720 at 24, 30, 60 fps (9 Mbps XAVC S)

640 x 360 at 24, 30, 60 fps (3 Mbps XAVC S)

1920 x 1080i at 60 fps (17, 24 Mbps AVCHD)

1440 x 1080i at 60 fps (5 Mbps AVCHD)

Aspect Ratio 16:9

Slow Motion Mode 120 fps Recorded at 1920 x 1080p

60 fps Recorded at 1920 x 1080p

Still Image Resolution JPEG: 14.2 Megapixel, 5042 x 2824 (16:9)

JPEG: 12 Megapixel, 4240 x 2824 (3:2)

Microphone Recording Angle Not specified by manufacturer

Channels 2.0-Channel Stereo

Audio Format AAC-LC

Dolby Digital 2ch

Dolby Digital AC3

LPCM

Sampling Frequency Not specified by manufacturer

Bit Rate Not specified by manufacturer

Display

Display Type LCD

Touchscreen Yes

Screen Size 3.5"

Pixel Count 1,555,000

Resolution Not specified by manufacturer

Aspect Ratio 16:9

Rotation Opening Angle: 90°

Turning Angle: 270°

EVF

Screen Size .39"

Pixel Count 2,359,296

Field of View 100%

Exposure Control

Shutter Speed 1/8 - 1/10000 Second (Video)

Photo ISO Range Not specified by manufacturer

Video ISO Range Not specified by manufacturer

Exposure Metering Multi, Spot

Exposure Modes Not specified by manufacturer

Shooting Modes Auto

M (Manual)

Interval Recording Not specified by manufacturer

Self-Timer Not specified by manufacturer

Remote Control RMT-835 (Included)

Features

Image Stabilization Optical

Scene Modes Preset: Yes

White Balance Modes Auto

Incandescent

Manual

Onepush

Outdoors

Creative Effects Yes

Built-In Mic Yes

Built-In Speaker Yes

Built-In Light/Flash Light - No

Flash - No

Wi-Fi Yes, 802.11b/g/n

Accessory Shoe 1x Multi Interface Shoe

Tripod Mount Not specified by manufacturer

Input/Output Connectors

Inputs 1 x 1/8" (3.5 mm) Stereo Mini Jack Microphone

Outputs 1 x Composite Video (Requires separately available cable)

1 x 1/8" (3.5 mm) Stereo Mini Jack Headphone

Microphone Input Yes

Headphone Jack Yes

General

Menu Languages Not specified by manufacturer

Battery Rechargeable Lithium-Ion Battery Pack

Charging Method AC Adapter

Charging Time 2.8 Hours

Power Adapter Not specified by manufacturer

Power Consumption In LCD Operation: 5.1 W

In Viewfinder Operation: 4.8 W

Dimensions (W x H x D) 4.6 x 3.5 x 7.7" / 116.0 x 89.5 x 196.5 mm (Body Only)

Weight 2.06 lb / 935 g (With Eyecup and Lens Hood)
