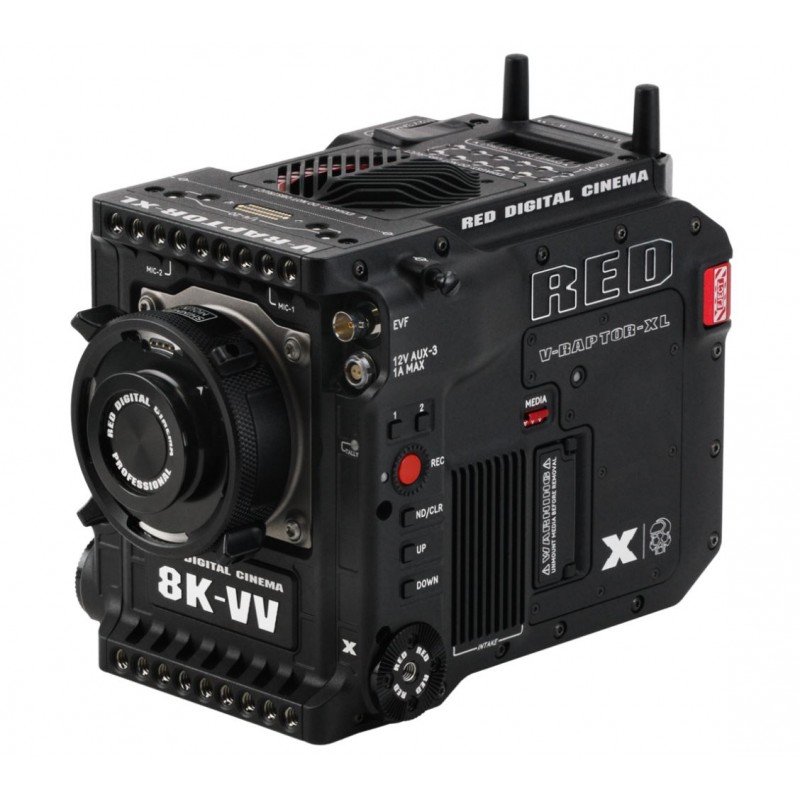

RED V-RAPTOR XL [X] 8K VV (V-Lock)

V-RAPTOR® XL [X] 8K VV seamlessly integrates the strengths of RED’s two camera lineages into a singular, formidable powerhouse. SKU 710-0394

59014.07 $
Tax included

47978.92 $ net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

V-RAPTOR® XL [X] 8K VV seamlessly integrates the strengths of RED’s two camera lineages into a singular, formidable powerhouse.

Experience unparalleled image quality and an enriched on-set workflow with the V-RAPTOR® XL [X] 8K VV. Combining the exceptional frame rates, low-light performance, and resolution of the V-RAPTOR line with the global shutter advancements of KOMODO®, the V-RAPTOR [X] 8K VV sensor represents the pinnacle of digital cinema imaging. Utilizing RED’s latest 8K VV sensor, the V-RAPTOR XL [X] optimally leverages the advantages and versatility of large format, global shutter, high framerate, and 8K acquisition, all housed within a production-ready XL camera body.

Tailored to support high-end motion picture and television productions, as well as filmmakers seeking a comprehensive all-in-one solution, the V-RAPTOR XL [X] boasts an array of features:

  • Dual voltage battery support, catering to a wide range of common batteries found on set today, including 14 V batteries and high voltage 26 V V-Lock or Gold Mount options.
  • Built-in electronic ND, empowering cinematographers to precisely adjust density in 1/4, 1/3, and full stop increments, delivering unprecedented exposure and depth of field control within a cinema camera of this caliber.
  • 12 V and 24 V auxiliary power outputs, streamlining power distribution for camera assistants by centralizing all necessary peripherals.
  • Front-facing 3G-SDI and 2-Pin 12 V power, alongside compatibility with the DSMC3 RED Touch 7.0” LCD, ensuring flexibility to accommodate any camera operator’s viewing preferences.
  • Wireless timecode, genlock, and camera control, complemented by four SDI outputs, providing comprehensive support for DITs, granting access to essential tools at their cart.
  • Enhanced in-camera audio performance, ideal for run-and-gun single system audio setups.

Additionally, the V-RAPTOR XL [X] and the DSMC platform feature advanced connectivity solutions, facilitating applications such as remote control and monitoring, in-camera Frame.io integration, AWS direct upload, RED® Connect for live 8K R3D video over IP, or live 4K over SMPTE ST 2110, and more.

Pushing the boundaries further, the V-RAPTOR XL [X] 8K VV introduces RED Global Vision, a revolutionary suite of tools harnessing the global shutter sensor to offer enhanced flexibility and ease of use throughout the production process. Global Vision’s Extended Highlights feature enables the camera to delve deeper into highlight detail, providing increased detail for HDR finishes or delivering smoother and subtler highlight roll-off for SDR. Additionally, RED Global Vision incorporates Phantom Track to streamline virtual production environments utilizing GhostFrame™ or Frame Remapping, enabling the capture of distinct R3D clips per each sub-frame slice, while also facilitating live monitoring of each slice on-set over each SDI feed.



Included in the package are:

  • 1x V-RAPTOR XL [X] 8K VV (V-Lock) Body
  • 1x V-RAPTOR XL PL Mount
  • 1x V-RAPTOR XL PL Mount Shim Pack
  • 1x RED AC Power Adaptor Pack 270W
  • 1x 3-Pin XLR-to-4-Pin 2B Power Cable (10')
  • RED Logo Sticker
  • V-RAPTOR XL [X] Information Card (including registration and support info)



Specifications:

Sensor Type: V-RAPTOR® [X] 8K VV 35.4MP Global Shutter CMOS

Effective Pixels: 8192 x 4320

Sensor Size: 40.96 mm x 21.60 mm (Diagonal: 46.31 mm)

Dynamic Range: 17+ stops

Mount Type: Integrated locking RF mount with electronic communication

Supports /i PL lenses with RED RF to PL Adapters

Supports Canon EF Adapter with communication and other adapters based on the RF mount

Max Data Rates: Up to 800 MB/s using RED branded or other qualified CFexpress media cards

REDCODE® RAW Max Frame Rates:

120 fps at 8K 17:9, 150 fps at 8K 2.4:1

140 fps at 7K 17:9, 175 fps at 7K 2.4:1

160 fps at 6K 17:9, 200 fps at 6K 2.4:1

192 fps at 5K 17:9, 240 fps at 5K 2.4:1

240 fps at 4K 17:9, 300 fps at 4K 2.4:1

320 fps at 3K 17:9, 400 fps at 3K 2.4:1

480 fps at 2K 17:9, 600 fps at 2K 2.4:1

Best Available REDCODE® Settings:

REDCODE HQ, MQ, LQ, and ELQ at 8K 17:9 up to 60 fps

REDCODE LQ and ELQ at 8K 17:9 up to 120 fps

REDCODE HQ, MQ, LQ, and ELQ at 6K 17:9 up to 96 fps

REDCODE MQ, LQ, and ELQ at 6K 17:9 up to 160 fps

REDCODE HQ, MQ, LQ, and ELQ at 4K 17:9 up to 240 fps

REDCODE HQ, MQ, LQ, and ELQ at 2K 17:9 up to 480 fps

REDCODE® RAW Acquisition Formats:

Various resolutions and aspect ratios including Anamorphic options

Apple ProRes:

Recording in ProRes formats up to 4K (4096x2160) 120P

Proxy recording available up to ProRes 422 HQ in 2K (2048 x 1080) up to 60P

Construction: Aluminum Alloy

Dimensions: 149.63 mm x 115.5 mm x 108 mm / 5.9 in. x 4.5 in. x 4.3 in. (LxWxH, largest fixed dims.)

Weight: 4.03 lbs / 1.83 kg (without body cap and CFexpress card)

Media Type: CFexpress Type B

Battery Type: Integrated V-Lock battery interface optimized for Micro V-Lock Batteries

Operating Temperature: 0°C to 40°C (32°F to 104°F)

Storage Temperature: –20°C to 50°C (–4°F to 122°F)

Storage Relative Humidity: 0% to 85% non-condensing

RED GLOBAL VISION: Extended Highlights capability, Phantom Track recording mode

Color Management: Image Processing Pipeline 2 (IPP2), supports 33×33×33 3D LUTs, import and adjustment of CDLs

Audio: Integrated dual-channel digital mono microphones, various input options, 3.5mm stereo headphone port

Autofocus: Phase Detect with Face Detection

IP Connected: Compatible with RED Connect Module for live video, Wi-Fi connectivity, wired control options

Monitor Outputs: Various options including proprietary ports, integrated dual 12G-SDI

Monitor Options: DSMC3 RED Touch 7.0” LCD, RED Compact EVF, Wireless preview options

Additional I/O: Genlock and Timecode inputs, RS232 CTRL

RED Control & RED Control Pro: Mobile app for full camera control and preview, Pro version for advanced features

Works wirelessly or wired via USB-C

Data sheet

CB7GBC4A59
