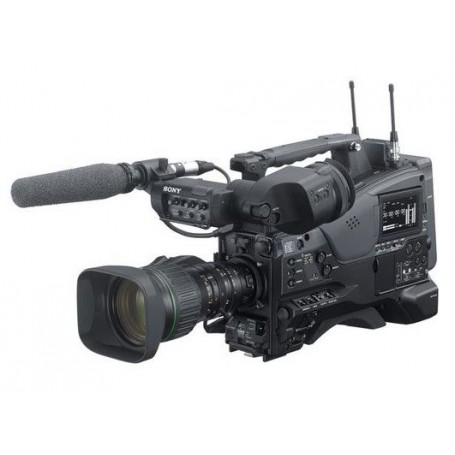

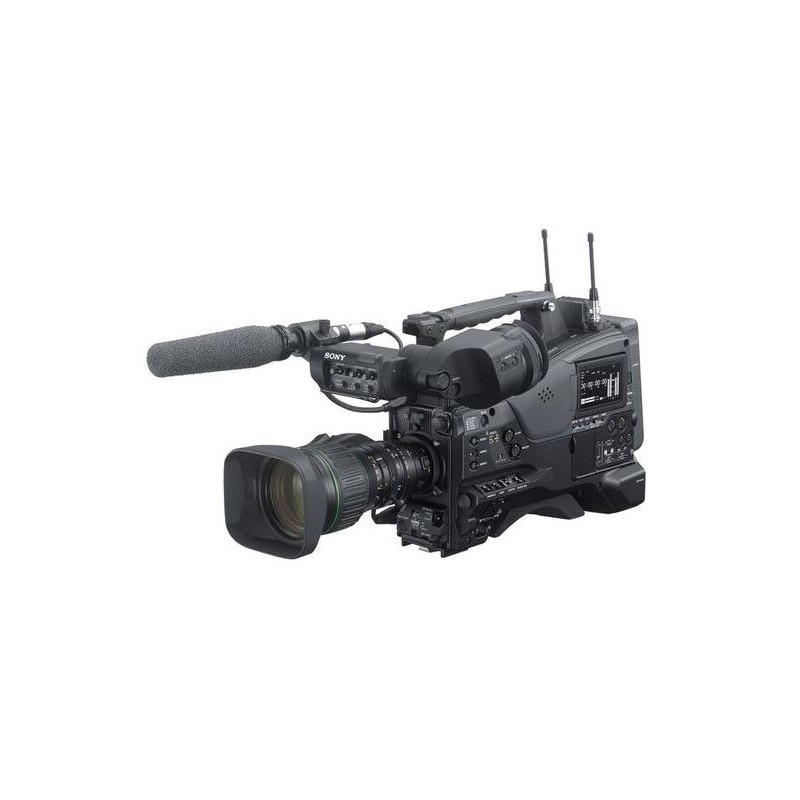

Sony PXW-X400KC Camcorder - 20x Canon Lens Kit

The PXWX400 redefines excellence in imaging, delivering unparalleled performance up to 1080/60p alongside optimized weight balance and ergonomic design. With cutting-edge networking features, it offers unmatched flexibility from the field to the air. This camera strikes a harmonious balance between performance and practicality, boasting enhanced ergonomics and mechanical balance ideal for prolonged shoulder-mount shooting sessions. Experience the power of advanced streaming, refined codecs, stunning 1080/60p imagery, 10-bit grayscale depth, and vibrant 4:2:2 color reproduction, all conveniently within your grasp.

Key Features

Enhanced Imaging: Capture breathtaking imagery up to 1080/60p, ensuring every detail is vividly preserved.

Optimized Ergonomics: Enjoy all-day shooting comfort with improved ergonomics and mechanical balance, perfect for shoulder-mounted operation.

Versatile Viewfinder Compatibility: Compatible with various Sony viewfinders including the QHD LCD CBKVF02 and the Full HD OLED HDVFEL30 and HDVFEL20.

Advanced Networking: Benefit from enhanced network connectivity with built-in wireless module, embedded RJ45 Ethernet 100B-T connector, and Near Field Communication (NFC) function for seamless Wi-Fi setup and operation via mobile or tablet using Sony’s Content Browser Mobile™ application.

Flexible Recording: With a 1.5G HD-SDI input for pool feed recording, the PXWX400 ensures versatility in various recording environments.

Technical Specifications

Built-in LCD Monitor: Color LCD, Screen size: 8.8 cm (3.5 inches) diagonal, Aspect ratio: 16:9, Number of pixels: 960 (H) × 540 (V)

Viewfinder: Built-in Optical Filters: Clear, 1/4ND, 1/16ND, 1/64ND

Effective Picture Elements: 1920 (H) x 1080 (V)

Gain: -3, 0, 3, 6, 9, 12, 18, 24, 30, 36, 42 dB

Horizontal Resolution: 1,000 TV lines or higher (1920 x 1080i mode)

Imaging Device: 3-chip 2/3-type "Exmor" Full HD CMOS

Minimum Illumination: 0.013 lx (F1.4, +42 dB, 16-frame accumulation)

Optical System: F1.4 prism system

Sensitivity: F12 (typical) (1920 x 1080/59.94i mode), F13 (typical) (1920 x 1080/50i mode)

Shutter Speed (Time): Various settings available for different frame rates

Slow & Quick Motion Function: Selectable frame rates for 720p and 1080p

White Balance: Preset (3200K), Memory A, Memory B/ATW

Battery Operating Time: Approx. 200-240 minutes with compatible batteries

Dimensions (W x H x D): 6 x 10 5/8 x 13 1/8 inches (excluding protrusions, body only)

Mass: Approx. 7 lb 15 oz (body only without lens, VF, Mic)

Operating Temperature: 32°F to 104°F

Power Consumption: Approx. 22-24 W

Power Requirements: DC 12 V (11 V to 17.0 V)

Recording Format: Various formats including XAVC Intra, XAVC Long, MPEG HD422, MPEG HD, MPEG IMX, DVCAM

Audio Input/Output: Multiple XLR-type inputs and outputs

Storage Temperature: -4°F to +140°F

Other Interfaces: HDMI Output, USB, Genlock Input, SDI Input/Output, Speaker Output, Timecode Input/Output, Remote, Lens Mount: Sony 2/3-inch type bayonet mount

Recording Frame Rate: Supports various frame rates for different recording formats, including XAVC Intra, XAVC Long, MPEG HD422, MPEG HD, MPEG IMX, and DVCAM.

Recording/Playback Time: Varies based on recording format and storage capacity.

Audio Input: CH1/CH2 XLR-type 3-pin inputs for Line/Mic/Mic/+48V selectable options.

Audio Output: XLR-type 5-pin male output with balanced audio levels.

DC Input/Output: XLR-type 4-pin male input for power supply and round type 4-pin output for powering external devices.

Genlock Input: BNC input for synchronization with external devices.

HDMI Output: A type, 19-pin HDMI output for connecting to external displays.

Remote Control: 8-pin interface for remote control operations.

SDI Input/Output: BNC connectors compliant with SMPTE standards, supporting 4-channel audio and poolfeed recording.

Speaker Output: Monaural speaker output with 300 mW output.

Timecode Input/Output: BNC connectors for timecode synchronization with external devices.

USB Connectivity: USB 3.0/2.0 ports for data transfer and connectivity.

Video Output: BNC connector for SD analog composite/HD-Y output.

Lens Mount: Sony 2/3-inch type bayonet mount for attaching compatible lenses.
