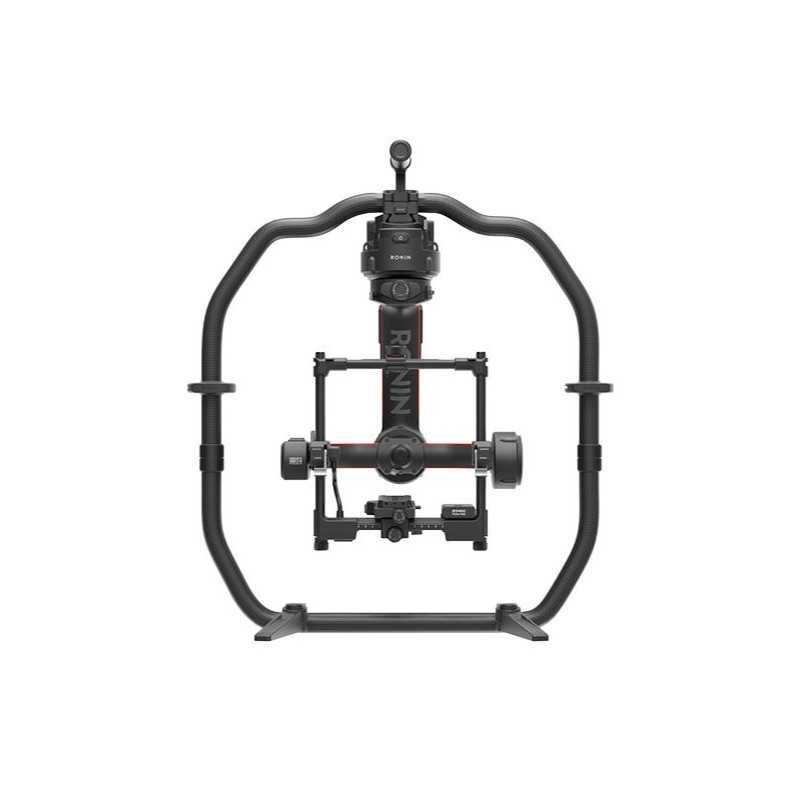

DJI Ronin 2 Professional Combo

POWERFUL

Ronin 2 exists to let filmmakers capture the scene they see in their mind. Upgraded high torque motors allow it to support a wider range of cameras, resist high winds and G-forces caused when mounted to a car and keep it moving smoothly in flight.

SUPPORTED BUILDS

Whether it’s a simple DSLR or a professional camera with cinema grade glass with all the accessories mounted, Ronin 2 will stabilize the build.

Higher Torque, More Power, Same Precision

With up to eight times more powerful motors than previous iterations, Ronin 2 can withstand sustained speeds of over 75mph with camera builds as heavy as 30lbs. We’ve increased power without sacrificing control. With encoded motors and extreme precision, the same 0.02° of accuracy remains.

Accessory Support

With the new Ronin power hub, essential accessories such as DJI Focus and wireless video transmission systems could gain power and communicate data with Ronin 2.

Control

The new Remote Controller provides dedicated controls for joystick input speed and start/stop recording. Besides this, Ronin 2 is also compatible with third party remote controllers such as hand wheels and traditional remotes through the onboard D-Bus port.

Versatility

A newly designed detachable Grip allows Ronin 2 to stand up on its own and is easily separated when the lower part of the hand grip is not needed. Ronin 2 is also highly compatible with cable cams, drones, cranes, Steadicams, and more.

Easy

The simplicity of Ronin has been amplified with Ronin 2, making setup and use easier than ever. Everything, from mounting cameras to balancing and tuning, powering accessories and transportation has been tweaked and refined for ease and speed.

Easier setup

Making fine adjustments, which is essential for proper camera balancing, is now simplified with integrated adjustment knobs and a re-designed camera mounting base.

Intelligent

Enhanced intelligence means filmmakers can get shots with Ronin 2 that would once have needed specialist expertise or additional equipment, from total smoothness control to studio-oriented smart features.

Integrated

Power systems are now tightly integrated into Ronin 2, capable of powering its motors and the attached camera and accessories without dangling cables or multiple power systems. As it uses a dual battery system, filmmakers can hot swap to keep the camera and accessories powered and maximize shooting time.

Hot-Swap Batteries

Two batteries on Ronin 2, and the ability to run with only one allows batteries to be charged and swapped without interrupting a shoot.

Accessory Powering

Installed cameras, monitors, or accessories, including the DJI Focus, can be powered by Ronin 2 batteries through integrated cabling and ports, eliminating dangling cables.

Reliable

Every element of Ronin 2 has been designed to maximize reliability, from materials to the splash-proof enclosed motor design, cable management, and redundancy. All of this creates a system that shines in the most demanding of shooting environments.

Carbon Fiber Build

A carbon fiber build enables Ronin 2 to perform well in extreme weather conditions. Light and durable, it is reliable in the most testing scenarios.

Ultra-durable Batteries

Robust and resilient in extreme weather conditions, Ronin 2’s self-heating batteries ensure stable power output for high-performance in temperatures as low as -4°F (-20°C) and high heat environments. Dual batteries capable of operating simultaneously and independently provide complete redundancy, keeping the shoot going.

Integrated GPS

The built-in GPS provides Ronin 2 with essential information for gimbal acceleration and speed, which is crucial for maintaining the camera’s position and the horizon level when moving at high speeds.

In The Box

Ronin 2 Gimbal x1

Carrying Case x1

Ronin 2 Power Hub x1

Camera Mounting Plate x1

Camera Upper Mounting Plate x1

Remote Controller x1

Battery Compartment x1

Intelligent Battery (TB50) x2

Battery Charger x1

Power Cable x1

Charging Hub x1

Grip x1

Accessories Package (Screws & Hex Keys) x1

Cables Package (Red Power Cable, Arri Power Cable, 2-pin Power Cable, DC Power Cable, 6-pin-to-P-tap Adapter, USB Type-C Data Cable, Control Cable for Red, Control Cable for Arri, Ronin 2 Power Cable, S-Bus Receiver Cable) x1 each

Manual Package x1

Monitor Mounting Bracket x1

15mm Rod Mount x1

15mm Extension Rod x2

Ronin 2 Universal Mount x1

RONIN 2Specs

General

Built-In Functions

Operation Modes

-Underslung Mode

-Upright Mode

-Briefcase Mode

-Handheld, Car Mount, Aerial & Tripod Mode

Axis Modes

-3-axis

-Pan-Lock

Built-in, independent IMU module

DJI Advanced 32-Bit ARM Processor

DJI Specialized Gimbal Drive Motors with Encoders

Dual Battery System

Bluetooth Module

D-Bus Receiver Supported

2.4 GHz/5.8 GHz Receiver

Temperature Sensors

Built-in Display

Built-in GPS

USB Type-C Connection

Power and Video Signal through Slip Ring

Mechanical & Electrical Characteristics

Working Current Static current: 300 mA (@22.8 V), Dynamic current: 500 mA (@22.8 V), Locked motor current: Max 15 A (@22.8 V)

Run Time 8 hours, 2.5 hours (when powering gimbal, camera and accessories at the same time)

Operating Temperature -4°F ~ 122°F (-20°C ~ 50°C)

Weight Including handle bar: 14 lb (6.3 kg), Excluding handle bar: 11 lb (5.0 kg)

Gimbal Dimensions Excluding handle bar: 350 mm (W) x 416 mm (D) x 530 mm (H), Including handle bar: 630 mm (W) x 416 mm (D) x 720 mm (H)

Peripheral

Camera Tray Dimensions Maximum depth from the center of gravity on camera base plate: 250 mm, Maximum height measured from top of the camera base plate: 190 mm, Maximum width: 170 mm

Accessory Power Connections 14.4 V x 4 Camera Cage (Combined 8 A), 14.4 V x 2 Pan Motor (Combined 4 A), 14 V x2 P-Tap (8 A)

GCU Input Power Intelligent Battery: 4280 mAh-22.8 V

Connections 2.4 GHz/5.8 GHz Remote Control, Bluetooth 4.0, USB Type-C

PC Assistant Software Requirements Windows 7 or above; Mac OS X 10.11 or above

Mobile Assistant Software Requirements iOS 9 or above; Android 4.4 or above

Working Performance

Load Weight (Reference Value) 30 lbs (13.6 kg)

Angular Vibration Range ± 0.02°

Maximum Controlled Rotation Speed Pan axis: 400°/s, Tilt axis: 360°/s, Roll axis: 360°/s

Mechanical Endpoint Range Pan axis control: 360° continuous rotation, Tilt axis control: ±135°, Roll axis control: ±220°

Controlled Rotation Range Pan axis control: 360° continuous rotation, Tilt axis control: ±135°, Roll axis control: ±30°
