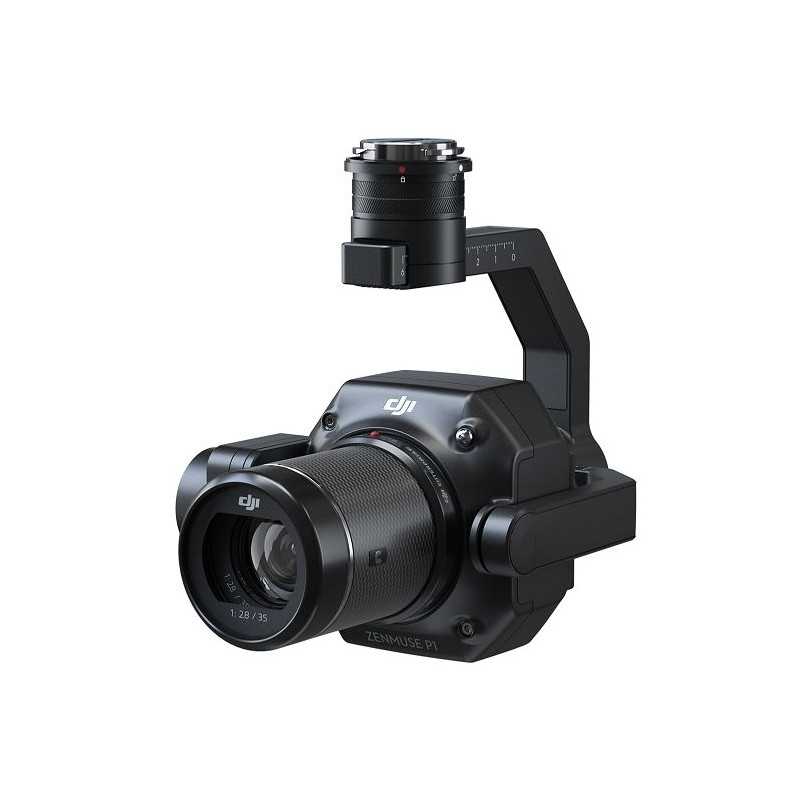

DJI Zenmuse P1 EU SP

Introducing the DJI Zenmuse P1(EU) SP - your ultimate solution for efficient and flexible full-frame photogrammetry! Designed specifically for professionals in the fields of surveying, mapping, and aerial photography, this powerful gimbal camera offers exceptional image quality and accuracy. Equipped with a 45-megapixel full-frame CMOS sensor, it captures stunningly detailed and precise images for your projects, ensuring precise and reliable data. The Zenmuse P1 seamlessly integrates with DJI's renowned drone systems and is compatible with various lenses, allowing you to customize your setup for optimal performance. Experience unparalleled efficiency and flexibility with the DJI Zenmuse P1(EU) SP - the perfect choice for all your aerial mapping and surveying needs.
5412.00 $
Tax included

4400 $ net price (non-EU countries)

Viktoriia Turzhanska
Product Manager
Українська / Polski
+48723706700
+48723706700
Telegram +48723706700
[email protected]

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Michał Skrok
Product Manager
English / Polski
+48721807900
Telegram +48721807900
[email protected]

Description

The New Benchmark for Aerial Surveying

The Zenmuse P1 integrates a full-frame sensor with interchangeable fixed-focus lenses on a 3-axis stabilized gimbal. Designed for photogrammetry flight missions, it takes efficiency and accuracy to a whole new level.

  • Accuracy without GCPs - 3 cm horizontally / 5 cm vertically
  • High Efficiency - 3 km2 covered in a single flight
  • 45 MP Full-frame Sensor
  • 3-axis Stabilized Gimbal - Smart Oblique Capture
  • Global Mechanical Shutter - Shutter Speed 1/2000 Seconds
  • TimeSync 2.0 - synchronization at the microsecond level

Your Go-to Tool for Aerial Photogrammetry

Extraordinary Efficiency

The P1 includes a full-frame, low-noise high-sensitivity sensor that can take a photo every 0.7 s during the flight, and covering 3 km2 in a single flight.

Remarkable Accuracy

Equipped with a global mechanical shutter and the all-new TimeSync 2.0 system, which synchronizes time across modules at the microsecond level, the Zenmuse P1 lets users capture centimeter-accurate data combined with the real-time position and orientation compensation technology.

Robust Versatility

Create 2D, 3D, and detailed models thanks to the integrated 3-axis gimbal that can be outfitted with 24/35/50mm lenses and the Smart Oblique Capture feature.

Efficiency to Cover It All. Full-frame Camera

- 45MP Full-frame Sensor

- 4.4μm Pixel Size

- Low-noise, high sensitivity imaging extends daily operational time

- Take a photo every 0.7 s during the flight

- TimeSync 2.0 aligns the camera, flight controller, RTK module, and gimbal at the microsecond level

Smart Oblique Capture

Cover 7.5 km2 in a single workday with the P1. Elevate the efficiency of your oblique photography mission using Smart Oblique Capture, where the gimbal automatically rotates to take photos at the different angles needed. Only photos essential to the reconstruction will be taken at the edge of the flight area, increasing the efficiency of post processing by 20% to 50%.

Smart Data Management. Your mission data management - streamlined.

Mission result files are automatically associated with the Mission Name and Mission Time.

A centralized storage location for photos, GNSS data, and TimeStamps.MRK files.

The image metadata contains the camera’s intrinsic and extrinsic parameters and the status of RTK.

Fieldwork Report

Verify data quality immediately post-flight by checking the position data and number of the images acquired, as well as RTK status and positioning accuracy.

2D Orthomosaic Mission

Generate orthomosaics without GCPs using the P1, perfect for medium to large-area operations.

3D Oblique Mission

Effortlessly acquire oblique images from multiple angles that meet 3D modeling requirements across industries such as urban planning and centimeter-level accurate cadastral surveys to serve 3D reality models and smart city planning.

Detailed Modeling Mission

Acquire ultra-high resolution image data of vertical or slanted surfaces from a safe distance that faithfully recreates fine textures, structures, and features, for detailed reconstructions, geological surveys, heritage site conservation, hydraulic engineering, and more.

Real-time Mapping Mission

Gather geographic information of large areas in real-time using DJI Terra so that teams can make crucial decisions quickly on site.

Application Scenarios

Topographic Mapping

Capture data that meet the 1:500 scale accuracy requirements without GCPs.

Cadastral Surveying

Quickly generate centimeter-level accurate 3D reality models.

AEC and Surveying

Manage the full project lifecycle with 2D and 3D drone data.

Natural Resource Management

Measure, classify, or determine the ownership of water bodies and forests.

Geological Investigation

Safely gather millimeter-level accurate aerial data of geological hazard sites.

Disaster Site Modeling

Gain real-time overviews of vast disaster-struck areas to help teams make critical decisions.



Specs

ZENMUSE P1

General

Product Name ZENMUSE P1

Dimensions 198×166×129 mm

Weight Approx. 800 g

Power 20W

IP Rating IP4X

Supported Aircraft Matrice 300 RTK

Operating Temperature Range -20° to 50° C (-4° to 122° F)

Storage Temperature Range -20° to 60° C (-4° to 140° F)

Absolute Accuracy Horizontal: 3 cm, Vertical: 5 cm * Using Mapping Mission at a GSD of 3 cm and flight speed of 15 m/s, with an 75% front overlap rate and a 55% side overlap rate.

Camera

Sensor Sensor size (Still): 35.9×24 mm (Full frame); Sensor size (Max video recording area): 34×19 mm ; Effective Pixels: 45MP ; Pixel size: 4.4 μm

Supported Lenses DJI DL 24mm F2.8 LS ASPH (with lens hood and balancing ring/filter), FOV 84° ; DJI DL 35mm F2.8 LS ASPH (with lens hood and balancing ring/filter), FOV 63.5° ; DJI DL 50mm F2.8 LS ASPH (with lens hood and balancing ring/filter), FOV 46.8°

Supported SD Cards SD: UHS-I rating or above; Max capacity: 512 GB

Storage Files Photo / GNSS Raw Observation Data/ Image Log File

Photo Size 3:2 (8192×5460)

Operation Modes Photo, Video, Playback

Minimum photo interval 0.7 s

Shutter Speed Mechanical Shutter Speed: 1/2000*-1 s ; Electronic Shutter Speed: 1/8000-1 s ; *Aperature value no larger than f/5.6

Aperture Range f/2.8-f/16

ISO Range Photo: 100-25600 ; Video: 100-25600

Video

Video Format MP4,MOV

Video Resolution 16:9 (1920×1080) ; 16:9 (3840×2160)*Only 35mm lens supported

Frame Rate 60fps

Gimbal

Stabilized System 3-axis (tilt, roll, pan)

Angular Vibration Range ±0.01°

Mount Detachable DJI SKYPORT

Mechanical Range Tilt: -130° to +40°; Roll: -55° to +55°; Pan: ±320°

Data sheet
