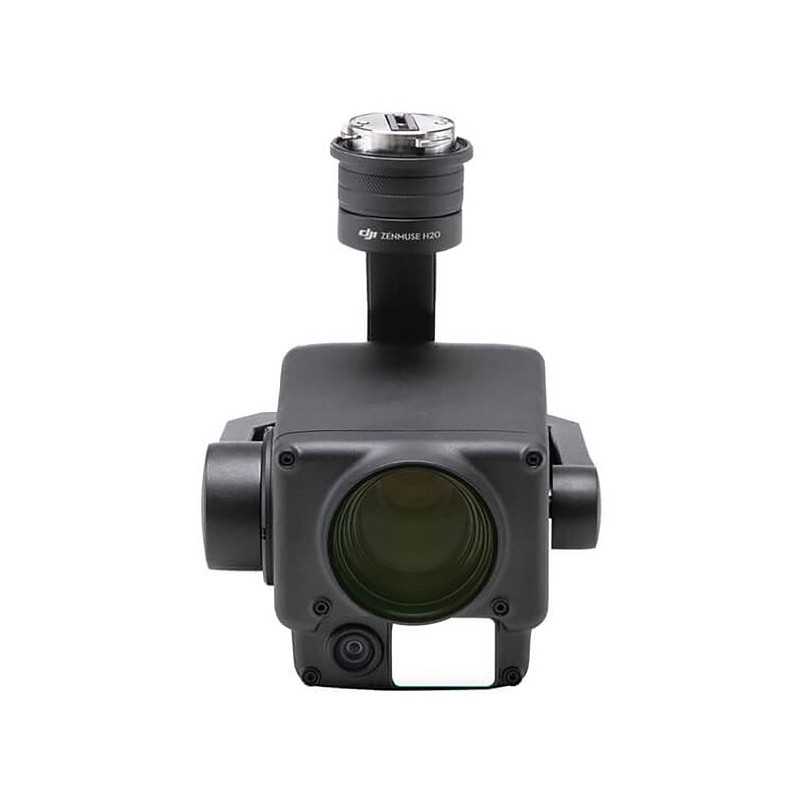

DJI Zenmuse H20 Camera + DJI Care

“H” For Hybrid

Multi-sensor payloads that bring a whole new meaning to mission efficiency. The unique intelligence and integrated design provide unprecedented aerial imaging capabilities for a range of commercial drone applications.

Welcome to DJI’s first hybrid sensor solution – the Zenmuse H20 Series.

• 12 MP Wide Camera 82.9° DFOV
• 20 MP Zoom Camera 23× Hybrid Optical Zoom
• Radiometric Thermal Camera 640×512 px
• Laser RangeFinder 1200 m Max Range
• IP44 Rating
• -20°C to 50°C Operating Temperature
• Active Image Stabilization and EIS
• Night Scene Mode

All The Sensors You Need – In One

Capture everything. Up close or from a distance. In true living color or thermal. An integrated laser rangefinder (LRF) measures the distance to an object at up to 1200 m away. A powerful, integrated payload that unleashes advanced intelligent capabilities for DJI’s industrial drone platforms.

H20 – Triple-Sensor Solution

• 20 MP Zoom Camera
• 12 MP Wide Camera
• 1200 m LRF

H20T – Quad-Sensor Solution

• 20 MP Zoom Camera
• 12 MP Wide Camera
• 1200 m LRF
• 640×512 px Radiometric Thermal Camera

Closing the Distance. Powerful Zoom Camera

23× Hybrid Optical Zoom, 200× Max Zoom

20 MP 1/1.7” CMOS Sensor

Video Resolution: 4K/30fps

Everything in View. Wide Camera

Equivalent Focal Length: 24mm, DFOV: 82.9°

12 MP 1/2.3” CMOS Sensor

Precise Distance Data. Laser Rangefinder

Range: 3 m – 1200 m

Accuracy: ± (0.2 m + D×0.15%)

See the Unseen. Radiometric Thermal Camera

DFOV: 40.6°

Resolution: 640×512, Frame Rate: 30fps

Thermal Sensitivity: ≤ [email protected] (NEDT)

Multi-Sensor Payloads

See the full picture without missing any details wherever, whenever your mission takes place.

Seamless User Interface

A new integrated user interface lets you quickly switch between wide, zoom, and thermal camera views, and preview the zoom FOV while in wide or thermal camera view.

AI Spot-Check

Automate routine inspections and capture consistent results every time. Onboard AI recognizes the pre-marked subject of interest in subsequent automated missions to ensure consistent framing.

AI Spot-Check

Automate routine inspections and capture consistent results every time. Onboard AI recognizes the pre-marked subject of interest in subsequent automated missions to ensure consistent framing.

High-Res Grid Photo

Frame an area of interest in wide camera view, and the zoom camera will automatically capture a set of 20 MP images of the area. These images are stored together with an overview image that can be viewed in greater detail.

AI Spot-Check

Automate routine inspections and capture consistent results every time. Onboard AI recognizes the pre-marked subject of interest in subsequent automated missions to ensure consistent framing.

High-Res Grid Photo

Frame an area of interest in wide camera view, and the zoom camera will automatically capture a set of 20 MP images of the area. These images are stored together with an overview image that can be viewed in greater detail.

PinPoint

A quick tap marks an object in view, advanced sensor fusion algorithms immediately deliver its coordinates.

AI Spot-Check

Automate routine inspections and capture consistent results every time. Onboard AI recognizes the pre-marked subject of interest in subsequent automated missions to ensure consistent framing.

High-Res Grid Photo

Frame an area of interest in wide camera view, and the zoom camera will automatically capture a set of 20 MP images of the area. These images are stored together with an overview image that can be viewed in greater detail.

PinPoint

A quick tap marks an object in view, advanced sensor fusion algorithms immediately deliver its coordinates.

Smart Track

Identify and follow moving subjects like people, vehicles, and boats with the auto-zoom function, while continuously acquiring the subject’s dynamic location.

Accurate Temperature Measurement

Monitor the temperature of a site or an asset to eliminate any risks by acquiring a precise temperature reading from the air.

Intelligent Features

Temp Alarm

Receive instant notifications in DJI Pilot when object temperatures exceed your preset alert values.

Isotherms

Visualize a specific band of temperatures to find what is important.

Color Palettes

Adjust the colors applied to the thermal data based on the needs of specific scenarios.

Gain Modes

Adjust gain modes to change the temperature range captured: High Gain Mode covers a smaller temperature range but is more sensitive to temperature differences; Low Gain Mode covers a wider temperature range.

R-JPEG Images

Images captured by the Zenmuse H20T are in the R-JPEG format with embedded temperature information. By importing these images into DJI Thermal Analysis Tool, you can measure temperature, and adjust parameters such as Emissivity, and Reflected Temp.

The Optimal Match for The Matrice 300 RTK

Specs

General

Weight Zenmuse H20: 678±5 g, Zenmuse H20T: 828±5 g

Dimensions Zenmuse H20: 150×114×151 mm, Zenmuse H20T: 167×135×161 mm

Ingress Protection Rating IP44

Operating Temperature -20° to 50° C (Temperature Measurement is only available between -10° to 50° C)

Storage Temperature -20° to 60° C

Laser Safety Class 1M (IEC 60825-1:2014)

Supported Aircraft Matrice 300 RTK

Gimbal

Angular Vibration Range ±0.01°

Mount Detachable

Controllable Range Pitch: -120° to +30°, Yaw: ±320°

Mechanical Range Pitch: -132.5° to +42.5°, Yaw: ±330°, Roll: -90° to +60°

Zoom Camera

Sensor 1/1.7" CMOS, 20 MP

Lens DFOV: 66.6°-4°, Focal length: 6.83-119.94 mm (equivalent: 31.7-556.2 mm), Aperture: f/2.8-f/11 (normal), f/1.6-f/11 (night scene), Focus: 1 m to ∞ (wide), 8 m to ∞ (telephoto)

Focus Mode MF/AF-C/AF-S

Exposure Mode Auto, Manual

Exposure Compensation ±3.0 (1/3 increments)

Metering Mode Spot metering, Center-weighted metering

AE LOCK Supported

Electronic Shutter Speed 1 ~ 1/8000 s

ISO Range Video: 100 - 25600, Photo: 100 - 25600

Video Resolution 3840x2160@30fps, 1920x1080@30fps

Video Format MP4

Video subtitles Supported

Photo Size 5184 × 3888

Photo Format JPEG

Wide Camera

Sensor 1/2.3" CMOS, 12 MP

Lens DFOV: 82.9°, Focal length: 4.5 mm (equivalent: 24 mm), Aperture: f/2.8, Focus: 1 m to ∞

Exposure Mode Auto

Exposure Compensation ±3.0 (1/3 increments)

Metering Mode Spot metering, Center-weighted metering

AE LOCK Supported

Shutter Speed 1 ~ 1/8000

ISO Range Video: 100 - 25600, Photo: 100 - 25600

Video Resolution 1920×1080@30fps

Video Format MP4

Video subtitles Supported

Photo Size 4056 x 3040

Photo Format JPEG

Thermal Camera (Zenmuse H20T)

Sensor Uncooled VOx Microbolometer

Lens DFOV: 40.6°, Focal length: 13.5 mm (equivalent: 58 mm), Aperture: f/1.0, Focus: 5 m to ∞

Digital Zoom 1x, 2x, 4x, 8x

Video Resolution 640×512 @ 30 Hz

Video Format MP4

Image Resolution 640×512

Image Format R-JPEG (16 bit)

Pixel Pitch 12 μm

Spectral Band 8-14 μm

Sensitivity (NETD) ≤50 mK @ f/1.0

Temperature Measurement Method Spot Meter, Area Measurement

Scene Range -40 °C to 150 °C (High Gain), -40 °C to 550 °C (Low Gain)

Temperature alert Supported

FFC Auto/ manual

Palette White hot/Fulgurite/Iron Red/Hot Iron/Medical/Arctic/Rainbow 1/Rainbow 2/Tint/Black Hot

Laser Rangefinder

Wave length 905 nm

Measurement range 3-1200 m (to a vertical surface with ≥12m diameter and 20% reflection rate)

Measurement accuracy ± (0.2 m + D×0.15%), D is the distance to a vertical surface

Features

Hybrid Optical Zoom 23×（DFOV：4°，EQV：556.2mm）

Max. Zoom 200×（DFOV：0.5°，EQV：4800mm）

One Click Capture One click to save the video or picture of 3 cameras (zoom, wide and thermal camera) simultaneously

Point to Aim Double click on the wide/thermal camera view, then the system will automatically move the gimbal to focus on the point of interest

High-Res Grid Photo Frame an area of interest in wide camera view, and the zoom camera will automatically capture a set of 20 MP images of the area. These images are stored together with an overview image that can be viewed in greater detail.

Night Scene Supported (zoom camera)

Timestamp Including GPS, date, and time

Storage

Supported SD Card MicroSD card (Max capacity: 128 GB, UHS-1 Speed Grade 3 required)

Supported File Systems FAT32 (≤ 32 GB), exFAT (> 32 GB)

Recommended Micro SD Cards:

TOSHIBA EXCERIA PRO 32GB micro SD HC II

SanDisk_Extreme PRO_32GB_3_A1_micro SD V30 HC I

TOSHIBA EXCERIA PRO 64GB micro SD XC II

SanDisk_Extreme PRO_64GB_3_A2_micro SD V30 XC I

SAMSUNG_EVO_128GB_micro SD 3 XC I

TOSHIBA EXCERIA M303E 32GB micro SD HC I

TOSHIBA EXCERIA M303E 64GB micro SD XC I

TOSHIBA EXCERIA M303E 64GB micro SD XC I

TOSHIBA EXCERIA M303 128GB micro SD XC I

SAMSUNG_EVO_64GB_micro SD 3 XC I
