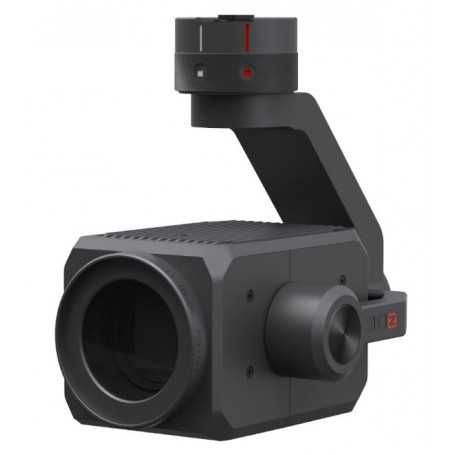

Yuneec E30ZX Camera for H520E & H580

The compact camera housing contains a 1/2.8" CMOS sensor, which provides high-quality and stabilized recordings even in low light conditions. In addition to the 30x optical zoom, the camera offers a 6x digital zoom for flexible application options such as inspection, search and rescue operations, monitoring, people search, and much more.

The Yuneec E30ZX comes equipped with a 30x optical zoom, which can be further enhanced by 6x digital zoom. The maximum zoom speed from wide-angle to tele is just 2.55 seconds, enabling you to capture important information in a short amount of time even from a distance. Specific camera settings such as photography modes or white balance can be adjusted using the ST16E controller's integrated touch screen. The focusing of the camera is done automatically via autofocus. When using the zoom function of the E30ZX, the stabilization of the camera plays a particularly important role. The integrated 3-axis gimbal automatically compensates slight gusts of wind and drone movements. It works with ± 0.02° accuracy and produces not only smooth video recordings but also incredibly sharp photos.

In combination with the H520E or H850 Hexacopter, the E30ZX is suitable for a variety of applications. Thanks to the powerful zoom function, the smallest details can be recognized from a safe distance without having to get too close to the object. The user has full access to all the features of the H520E & H850 and pre-installed DataPilot™ software. Thanks to its modular design, the drone can also be equipped with other cameras such as a thermal imaging camera, so the user always remains flexible with its H520E/H850.

EVERTHING AT A GLANCE

• 30x optical zoom + 6x digital zoom
• Autofocus
• Defogging
• Compatible with YUNEEC H520E Hexacopter
• 3-axis gimbal
• 1080p video resolution
• 2.55 s zoom speed (from wide to tele)
• Compatible with H520E & H850

WEEE-Reg.-Nr. DE 78138862

Weight: 518g

Operating Temperature: -10°C - 40°C

GIMBAL:

Angular vibration range: ±0.02°

Mount: Detachable

Max. Angular velocity: Tilt:50°/s，Pan:50°/s

Controllable range: Tilt：+30°to－120°，Pan：±165°

CAMERA:

Sensor: 1/2.8"CMOS Effective Pixels: 2.13MP

Camera Lens: FOV: 63.7°(Wide)-2.3°(Tele) / F: F1.6(Wide)-F4.7(Tele) / 30X optical zoom 6X digital zoom

Photo Resolution: 16:9, 1920x1080

Video Resolution: H.264 1080P 1920X1080 ( 60fps, 50fps, 30fps, 25fps)

Photo Format: JPG

Video Format: MP4

Photo Modes: Single, Time Lapse

Exposure Modes: Auto, Shutter Priority, Aperture Priority, Manual

Exposure Compensation: ±3.0

Metering Mode: Spot Metering, Average Metering

Electronic Shutter: 1/1---1/10000S

White Balance: Auto, Manual(1000-20000K)

ISO Range: 100 - 6400
