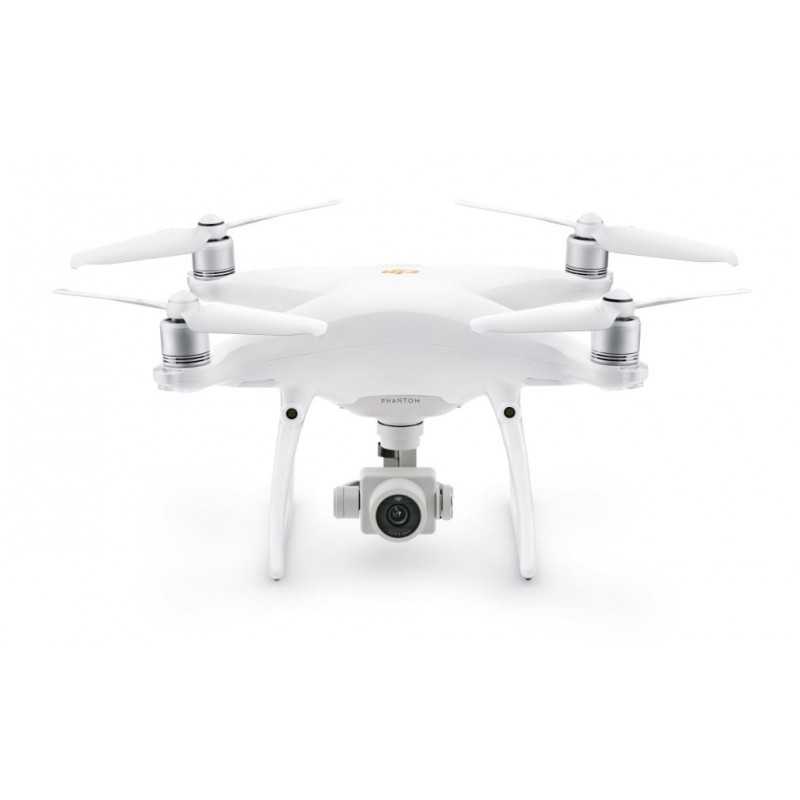

DJI Phantom 4 Pro+ V2.0 Drone

Featuring a 1-inch CMOS sensor that can shoot 4K/60fps videos and 20MP photos, the Phantom 4 Pro V2.0 grants filmmakers absolute creative freedom. The OcuSync 2.0 HD transmission system ensures stable connectivity and reliability, five directions of obstacle sensing ensures additional safety, and a dedicated remote controller with a built-in screen grants even greater precision and control. A wide array of intelligent features makes flying that much easier. The Phantom 4 Pro V2.0 is a complete aerial imaging solution, designed for the professional creator.

Powerful Aerial Performance. Incredible Gimbal Camera

The onboard camera features a 1-inch 20MP CMOS sensor and a mechanical shutter, eliminating rolling shutter distortion. An advanced sensor and impressive processing capture every detail and provide the image data needed for advanced post-production.

The Phantom 4 Pro V2.0 camera has an optimized f/2.8 wide-angle lens, ensuring consistently detailed photos and videos that remain vivid and sharp while maintaining color accuracy.

Professional 4K Video

An enhanced video processing system allows videos to be captured in Cinema 4K at 100 Mbps, enabling high-resolution slow-motion shots. Record in D-Log mode and H.265 codec to capture professional footage with high dynamic range, optimizing image quality.

• 100Mbps Bitrate
• 4K/60fps Frame Rate
• D-Log Color Profile

Precise Mechanical Shutter

In addition to beautiful landscapes, aerial imaging allows new perspectives on everything from serene vistas to a motor race. A mechanical shutter eliminates rolling shutter distortion which can occur when capturing fast-moving subjects or when flying at high speed. The electronic shutter features Burst mode, capable of shooting 14 fps at 20 MP to catch the perfect moment.

Powerful Flight Performance

Several flight modes make flying and creating with the Phantom 4 Pro V2.0 a streamlined and convenient experience. Switching between flight modes grants pilots the control they need, whether they seek smoothness, simplicity, or speed. Intuitive controls and a maximum speed of 45 mph simplify complex shots.

Intelligent Flight Modes

ActiveTrack

ActiveTrack can recognize and automatically follow people and objects like cars and boats.

Return to Home

The RTH feature automatically calculates an optimal route according to the environment and bypasses obstacles along the way.

TapFly

Plot a course simply by tapping on the screen, granting more than enough time to concentrate on getting the perfect shot.

Draw Mode

Draw a flight path in real time on the camera screen, and the aircraft will compute a corresponding route, making aerial photography a more streamlined experience.

Gesture Mode

Raise one arm, and the aircraft frames you perfectly in the center of the photo. By reaching out with two arms sim

Comprehensive Flight Safety

FlightAutonomy is an advanced aerial intelligence and flight automation platform, giving filmmakers the confidence to capture more complex images. A real-time view of its environment and 3D map provide crucial data. Redundant IMUs and compasses monitor critical data and rule out possible errors, dramatically enhancing the reliability of flight. Obstacle sensing in five directions improves safety and overall flight experience.

OcuSync 2.0 HD Image Transmission

The Phantom 4 Pro V2.0’s remote controller uses OcuSync 2.0 video transmission, which employs time-division multiplexing technology to send control signals and receive video signals simultaneously, which allows for 1080p livestreaming at a distance of up to ten kilometers. Supporting both 2.4 GHz and 5.8 GHz, OcuSync 2.0 scans for the frequency band with the lowest interference and switches accordingly to maintain clear transmission. Thanks to OcuSync 2.0, the Phantom 4 Pro V2.0 connects wirelessly to the DJI Goggles for an even more immersive experience.

Intuitive Remote Controller

An ultra-bright 5.5-inch screen makes vivid colors easily visible even in direct sunlight. As the DJI GO 4 app is built into the screen, a mobile device is not required, simplifying operation. The remote controller features several different ports and a five-hour battery life making the Phantom 4 Pro V2.0 a comprehensive aerial imaging solution.

Intelligent Flight Battery

The DJI GO 4 app shows battery lifetime and calculates remaining flight times according to distance traveled and more. When the minimum distance required for a safe journey back to the takeoff point is reached, a prompt will alert the pilot. An advanced battery management system is also in place to prevent overcharging and over-draining. When placed in long term storage, batteries will discharge power to maintain good health.

In the Box

Aircraft × 1

RC with Screen × 1

Intelligent Flight Battery × 1

Charger × 1

Power Cable × 1

Propellers (pair) × 4

Gimbal Clamp × 1

microSD Card (32GB) × 1

Micro USB Cable × 1

Carrying Case × 1

Specs

Phantom 4 Pro V2.0

Aircraft

Weight (Battery & Propellers Included) 1375 g

Diagonal Size (Propellers Excluded) 350 mm

Max Ascent Speed S-mode: 6 m/s, P-mode: 5 m/s

Max Descent Speed S-mode: 4 m/s, P-mode: 3 m/s

Max Speed S-mode: 45 mph (72 kph), A-mode: 36 mph (58 kph), P-mode: 31 mph (50 kph)

Max Tilt Angle S-mode: 42°, A-mode: 35°, P-mode: 25°

Max Angular Speed S-mode: 250°/s, A-mode: 150°/s

Max Service Ceiling Above Sea Level 19685 ft (6000 m)

Max Wind Speed Resistance 10 m/s

Max Flight Time Approx. 30 minutes

Operating Temperature Rang 32° to 104°F (0° to 40°C)

Satellite Positioning Systems GPS/GLONASS

Hover Accuracy Range Vertical: ±0.1 m (with Vision Positioning), ±0.5 m (with GPS Positioning) ; Horizontal: ±0.3 m (with Vision Positioning), ±1.5 m (with GPS Positioning)

Gimbal

Stabilization 3-axis (pitch, roll, yaw)

Controllable Range Pitch: -90° to +30°

Max Controllable Angular Speed Pitch: 90°/s

Angular Vibration Range ±0.02°

Vision System

Vision System Forward Vision System, Backward Vision System, Downward Vision System

Velocity Range ≤31 mph (50 kph) at 6.6 ft (2 m) above ground

Altitude Range 0-33 ft (0-10 m)

Operating Range 0-33 ft (0-10 m)

Obstacle Sensory Range 2-98 ft (0.7-30 m)

FOV Forward: 60° (Horizontal), ±27° (Vertical), Backward: 60° (Horizontal), ±27° (Vertical), Downward: 70° (Front and Rear), 50° (Left and Right)

Measuring Frequency Forward: 10 Hz, Backward: 10 Hz, Downward: 20 Hz

Operating Environment Surface with clear pattern and adequate lighting (lux>15)

Infrared Sensing System

Obstacle Sensory Range 0.6-23 feet (0.2-7 m)

FOV 70° (Horizontal), ±10° (Vertical)

Measuring Frequency 10 Hz

Operating Environment Surface with diffuse reflection material, and reflectivity > 8% (such as wall, trees, humans, etc.)

Camera

Sensor 1-inch CMOS, Effective pixels: 20M

Lens FOV 84° 8.8 mm/24 mm (35 mm format equivalent) f/2.8-f/11 auto focus at 1 m-∞

ISO Range Video: 100-3200 (Auto), 100-6400 (Manual) ; Photo: 100-3200 (Auto), 100-12800 (Manual)

Mechanical Shutter Speed 8-1/2000 s

Electronic Shutter Speed 8-1/8000 s

Image Size 3:2 Aspect Ratio: 5472×3648, 4:3 Aspect Ratio: 4864×3648, 16:9 Aspect Ratio: 5472×3078

PIV Image Size 4096×2160 (4096×2160 24/25/30/48/50p), 3840×2160 (3840×2160 24/25/30/48/50/60p), 2720×1530 (2720×1530 24/25/30/48/50/60p), 1920×1080 (1920×1080 24/25/30/48/50/60/120p), 1280×720 (1280×720 24/25/30/48/50/60/120p)

Still Photography Modes Single Shot, Burst Shooting: 3/5/7/10/14 frames, Auto Exposure Bracketing (AEB): 3/5 bracketed frames at 0.7 EV Bias, Interval: 2/3/5/7/10/15/20/30/60 s

Video Recording Modes H.265 C4K: 4096×2160 24/25/30p @100Mbps, 4K: 3840×2160 24/25/30p @100Mbps, 2.7K:2720×1530 24/25/30p @65Mbps, 2.7K: 2720×1530 48/50/60p @80Mbps, FHD: 1920×1080 24/25/30p @50Mbps, FHD: 1920×1080 48/50/60p @65Mbps, FHD: 1920×1080 120p @100Mbps, HD:1280×720 24/25/30p @25Mbps, HD: 1280×720 48/50/60p @35Mbps, HD: 1280×720 120p @60Mbps ; H.264 C4K: 4096×2160 24/25/30/48/50/60p @100Mbps, 4K: 3840×2160 24/25/30/48/50/60p @100Mbps, 2.7K: 2720×1530 24/25/30p @80Mbps, 2.7K: 2720×1530 48/50/60p @100Mbps, FHD: 1920×1080 24/25/30p @60Mbps, FHD: 1920×1080 48/50/60 @80Mbps, FHD: 1920×1080 120p @100Mbps, HD: 1280×720 24/25/30p @30Mbps, HD: 1280×720 48/50/60p @45Mbps, HD: 1280×720 120p @80Mbps

Max Video Bitrate 100 Mbps

Supported File Systems FAT32 (≤32 GB); exFAT (>32 GB)

Photo JPEG, DNG (RAW), JPEG + DNG

Video MP4/MOV (AVC/H.264; HEVC/H.265)

Supported SD Cards microSD ; Max Capacity: 128 GB ; Write speed ≥15MB/s, Class 10 or UHS-1 rating required

Operating Temperature Range 32° to 104°F (0° to 40°C)

Remote Controller

Operating Frequency 2.400-2.483 GHz and 5.725-5.850 GHz

Max Transmission Distance 2.400-2.483 GHz, 5.725-5.850 GHz (Unobstructed, free of interference) ; FCC: 10000 m ; CE: 6000 m ; SRRC: 6000 m ; MIC: 6000 m

Operating Temperature Range 32° to 104°F (0° to 40°C)

Battery 6000 mAh LiPo 2S

Transmitter Power (EIRP) 2.400-2.483 GHz, FCC: 26 dBm, CE: 20 dBm, SRRC: 20 dBm, MIC: 17 dBm ; 5.725-5.850 GHz, FCC: 26 dBm, CE: 14 dBm, SRRC: 20 dBm, MIC: -

Operating Current/Voltage 1.2 [email protected] V

Video Output Port GL300K: HDMI, GL300L: USB

Mobile Device Holder GL300K: Built-in display device (5.5-inch screen, 1920×1080, 1000 cd/m2, Android system, 4 GB RAM＋16 GB ROM), GL300L: Tablets and smart phones

Charger

Voltage 17.4 V

Rated Power 100 W

Intelligent Flight Battery

Capacity 5870 mAh

Voltage 15.2 V

Battery Type LiPo 4S

Energy 89.2 Wh

Net Weight 468 g

Charging Temperature Range 41° to 104°F (5° to 40°C)

Max Charging Power 160 W

App / Live View

Mobile App DJI GO 4

Live View Working Frequency 2.4 GHz ISM, 5.8 GHz ISM

Live View Quality 720P @ 30fps, 1080P @ 30fps

Latency Phantom 4 Pro V2.0: 220 ms (depending on conditions and mobile device), Phantom 4 Pro+ V2.0: 160-180 ms
