DJI Matrice 210 RTK V2 Bundle (Includes Charging Station and 2x Batteries)

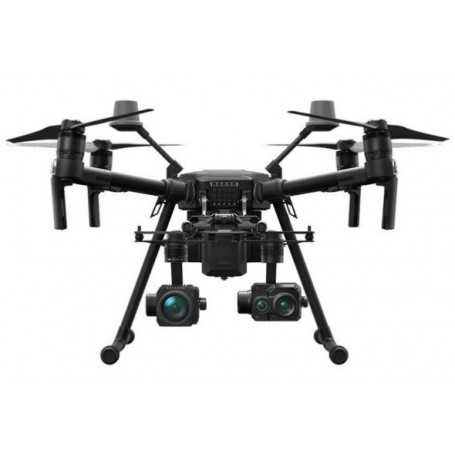

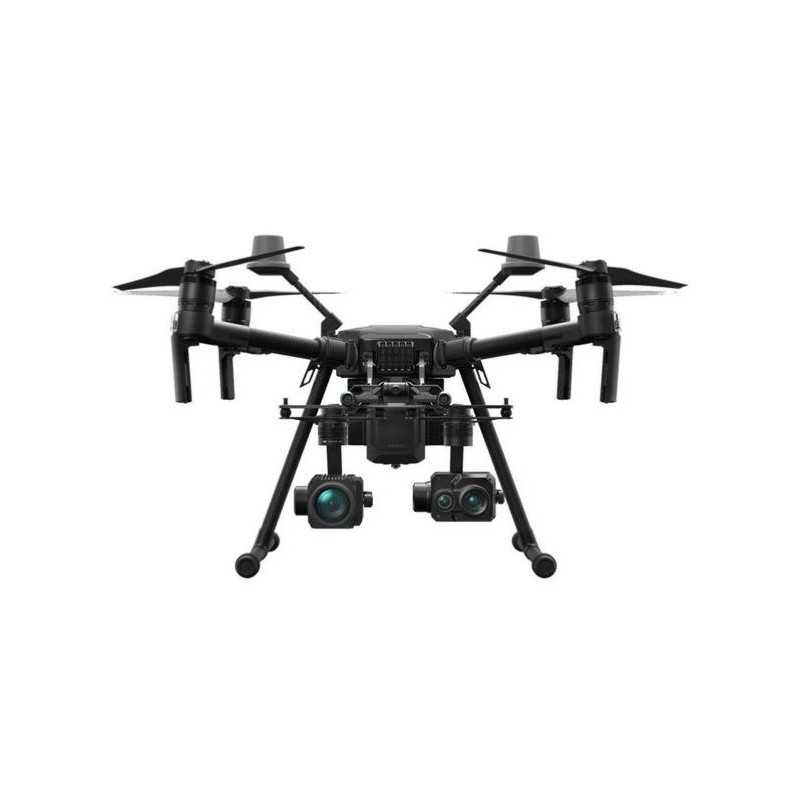

DJI Matrice 210 RTK V2 Drone

• All M210 V2 Features
• Built-in High-performance RTK Modules
• D-RTK 2 Mobile Station Compatibility

The ultimate platform for aerial productivity combines a rugged design and simple configurability to work as a solution for a variety of industrial applications. Improvements to the M200 Series V2 enhance intelligent control systems, flight performance, and add flight safety and data security features.

• IP43
• OcuSync 2.0
• TimeSync
• Anti-Collision Beacon

Compatible Payloads

ZENMUSE XT2

ZENMUSE X5S

ZENMUSE X7

ZENMUSE Z30

ZENMUSE X4S

ZENMUSE XT

Third Party Payloads

Intelligent Controls

Transmission

Enjoy a more reliable and stable flight with the new OcuSync 2.0 system, which supports automatic dual frequency band switching[2] and extends flight range to up to 8km.

Calibration

When multiple payloads or third-party payloads are installed, users can readjust the drone’s center of gravity in the DJI Pilot app, enhancing flight performance and safety.

Data Accuracy

The TimeSync system continuously aligns the flight controller, camera, GPS module, RTK module for the M210 RTK V2, as well as payloads or onboard accessories.

Discreet Mode

When the situation calls for unobtrusive drone operations, especially at night, all lights can be completely turned off in the DJI Pilot app.

Safe and Secure

AES-256 Encryption

The AES-256 encryption keeps your data transmission secure so you can be sure that your critical information stays safe.

Obstacle Avoidance

A robust FlightAutonomy system with front, bottom and upper sensors detects and avoids obstacles while enabling precision hovering so that you can fly with confidence.

Anti-Collision Beacon

Equipped with new top and bottom anti-collision beacons, the V2 drones are visible at night or in lowlight conditions, making operation in less than ideal conditions safer.

DJI AirSense

With a built-in ADS-B receiver, the DJI AirSense technology enhances airspace safety by automatically providing the operator with real-time information about nearby airplanes and helicopters.

Always Ready

1-Click Upgrade

The remote controller, drone, payloads[4], RTK module, and RTK base station, can now be upgraded simultaneously with just 1-click in DJI Pilot or DJI Assistant 2.

Dual-Battery System

The self-heating battery system allows a maximum flight time of 38 minutes[5] and an operating temperature range of -20 to 50°C.

Optional Accessories to Enhance Performance

Manifold 2

Turn your vision into reality using DJI’s onboard computer – the Manifold 2. Leverage its flexibility and expandability to build customized drone solutions and bring your robotics operations to the edge.

D-RTK 2 Mobile Station For Matrice Series

Gain improved relative accuracy with centimeter-level precision positioning data using the D-RTK 2 Mobile Station, which supports all major global satellite navigation systems and provides real-time differential corrections.

Upward Gimbal Connector

Connect any compatible payload above your M210 V2 and M210 RTK V2 drones using the upward gimbal to capture data from a different aerial perspective.

External GPS Module

Enhance positioning accuracy by using an external GPS module, especially when using an upward gimbal on the M210 V2, or when attaching onboard devices or payloads.

Develop Your Fleet

Payload SDK

Build imaging or robotic tools for your specific workflow needs and integrate them seamlessly on the M200 Series V2 drones. Thanks to the TimeSync feature, third-party payloads can have the position data fixed to the center of the gimbal connector for precise geotagging.

Onboard SDK

Integrate an onboard computer to analyze in-flight data, or connect third party devices.

Mobile SDK

Develop personalized mobile apps to make flight planning and on-site data collection simpler, faster and repeatable.

M210 V2 / M210 RTK V2

Aircraft

Dimensions M210 V2: Unfolded, propellers and landing gears included, 883×886×398 mm, Folded, propellers and landing gears excluded, 722×282×242 mm ; M210 RTK V2: Unfolded, propellers and landing gears included, 883×886×427 mm, Folded, propellers and landing gears excluded, 722×282×242 mm

Diagonal Wheelbase 643 mm

Weight M210 V2: Approx. 4.8 kg (with two TB55 batteries); M210 RTK V2: Approx. 4.91 kg (with two TB55 batteries)

Max Takeoff Weight 6.14 kg

Max Payload M210 V2: 1.34 kg; M210 RTK V2: 1.23 kg

Operating Frequency 2.4000-2.4835 GHz; 5.725-5.850 GHz

EIRP 2.4 GHz: ≤ 26 dBm (NCC/FCC); ≤ 20 dBm (CE/MIC); ≤ 20 dBm (SRRC) ; 5.8 GHz: ≤ 26 dBm (NCC/FCC); ≤ 14 dBm (CE); ≤ 26 dBm (SRRC)

Hovering Accuracy (P-mode with GPS) Vertical: ±1.64 feet (±0.5 m) or ±0.33 feet (±0.1 m, Downward Vision System enabled) ; Horizontal: ±4.92 feet (±1.5 m) or ±0.98 feet (±0.3 m, Downward Vision System enabled)

Hovering Accuracy (D-RTK, M210 RTK V2) Vertical: ±0.33 feet (±0.1 m); Horizontal: ±0.33 feet (±0.1 m)

Max Angular Velocity Pitch: 300°/s, Yaw: 120°/s

Max Pitch Angle (Dual Downward Gimbal/Single Upward Gimbal) S-mode: 30°; P-mode: 30° (Forward Vision System enabled: 25°); A-mode: 30°

Max Pitch Angle [Single Downward Gimbal (Gimbal Connector I)] S-mode: 35°; P-mode: 30° (Forward Vision System enabled: 25°); A-mode: 30°

Max Ascent Speed 16.4 ft/s (5 m/s)

Max Descent Speed (vertical) 9.8 ft/s (3 m/s)

Max Speed (Dual Downward Gimbal/Single Upward Gimbal) S-mode/A-mode: 73.8 kph (45.9 mph); P-mode: 61.2 kph (38 mph)

Max Speed [ Single Downward Gimbal (Gimbal ConnectorI) ] S-mode/A-mode: 81 kph (50.3 mph); P-mode: 61.2 kph (38 mph)

Max Service Ceiling Above Sea Level 9842 feet (3000 m, with 1760S propellers)

Max Wind Resistance 39.4 ft/s (12 m/s)

Max Flight Time (with two TB55 batteries) M210 V2: 34 min (no payload), 24 min (takeoff weight: 6.14 kg) ; M210 RTK V2: 33 min (no payload), 24 min (takeoff weight: 6.14 kg)

Supported DJI Gimbals Zenmuse X4S/X5S/X7/XT/XT2/Z30

Supported Gimbal Configurations Single Downward Gimbal, Dual Downward Gimbals, Single Upward Gimbal

Ingress Protection Rating IP43

GNSS M210 V2: GPS+GLONASS; M210 RTK V2: GPS+GLONASS+BeiDou+Galileo

Operating Temperature -4° to 122° F (-20° to 50° C)

Downward Vision System

Velocity Range <32.8 ft/s (10 m/s) at the height of 6.56 feet (2 m)

Altitude Range <32.8 feet (10 m)

Operating Range <32.8 feet (10 m)

Operating Environment Surfaces with clear patterns and adequate lighting (>15 lux)

Ultrasonic Sensor Operating Range 0.33-16.4 feet (0.1-5 m)

Ultrasonic Sensor Operating Environment Non-absorbing material, rigid surfaces (thick indoor carpeting will adversely affect performance)

Upward Infrared Sensing System

Obstacle Sensing Range 0-16.4 feet (0-5 m)

FOV ±5°

Operating Environment Large, diffuse, and reflective obstacles (reflectivity >10%)

Charger (IN2C180)

Voltage 26.1 V

Rated Power 180 W

Remote Controller (GL900A)

Operating Frequency 2.4000-2.4835 GHz; 5.725-5.850 GHz

Max Transmitting Distance(unobstructed, free of interference) NCC/FCC: 5 mi (8 km); CE/MIC: 3.1 mi (5 km); SRRC: 3.1 mi (5 km)

EIRP 2.4 GHz: ≤ 26 dBm (NCC/FCC); ≤ 20 dBm (CE/MIC); ≤ 20 dBm (SRRC) ; 5.8 GHz: ≤ 26 dBm (NCC/FCC); ≤ 14 dBm (CE); ≤ 26 dBm (SRRC)

Power Supply Extended Intelligent Battery (Model: WB37-4920mAh-7.6V)

Output Power (max) 13 W (Without supplying power to monitor)

USB Power Supply 1 A⎓5.2 V (max)

CrystalSky Monitor DJI CrystalSky 7.85inch, Resolution: 2048×1536; Brightness: 2000 cd/m2; Operating System: Android 5.1; Storage: ROM 128GB

Operating Temperature -4° to 122° F (-20° to 50° C)

Forward Vision System

Obstacle Sensing Range 2.3-98.4 feet (0.7-30 m)

FOV Horizontal: 60°; Vertical: 54°

Operating Environment Surfaces with clear patterns and adequate lighting (> 15 lux)

Intelligent Flight Battery (TB55-7660mAh-22.8V)

Capacity 7660 mAh

Voltage 22.8 V

Battery Type LiPo 6S

Energy 174.6 Wh

Net Weight (Single One) Approx. 885 g

Operating Temperature -4° to 122° F (-20° to 50° C)

Charging Temperature 41° to 104° F (5° to 40° C)

Max Charging Power 180 W

Charging Hub (IN2CH)

Input Voltage 26.1 V

Input Current 6.9 A
