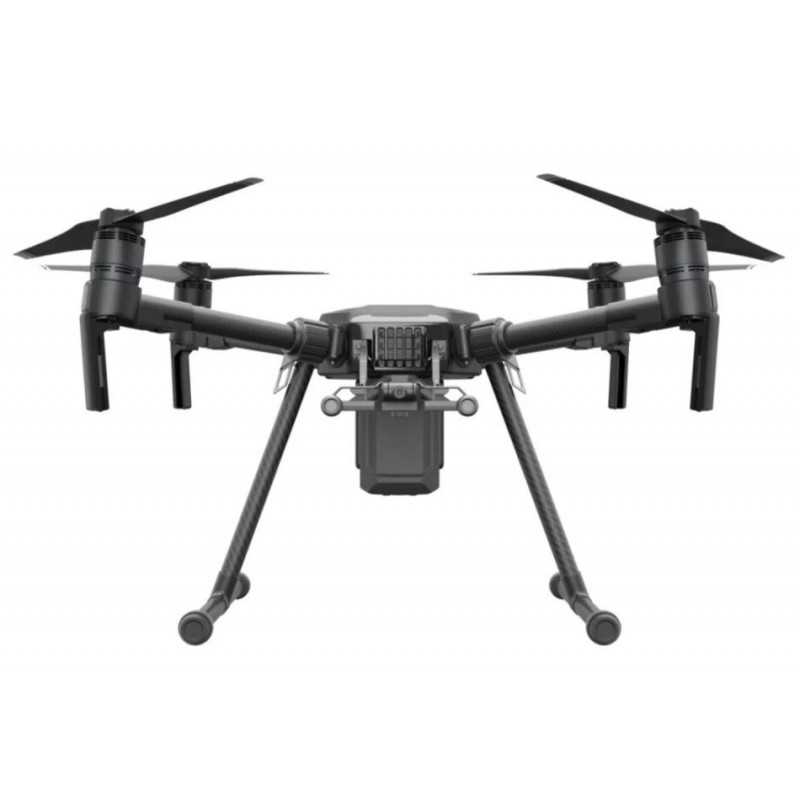

DJI Matrice 200 Drone

M200

Aircraft

Model M200

Package Dimensions 31.1×15.4×11.4inch (790×390×290mm)

Dimensions (unfolded) 34.9×34.6×14.9 inch (887×880×378 mm)

Dimensions (folded) 28.2×8.7×9.3 inch (716×220×236 mm)

Folding Method Folded Inward

Diagonal Wheelbase 25.3 inch (643 mm)

Number of Batteries 2

Weight (TB50) Approx. 3.80 kg

Weight (TB55) Approx. 4.53 kg

Max Takeoff Weight 6.14KG

Max Payload (2 TB50) Approx.2.34kg (with two standard batteries )

Max Payload (2 TB55) Approx.1.61kg (with two standard batteries )

Hovering Accuracy (P-mode with GPS) Vertical: ±1.64 feet (0.5m) or ±0.33 feet (0.1m, Downward Vision System enabled) ; Horizontal: ±4.92 feet (1.5m) or ±0.98 feet (0.3m.Downward Vision System enabled)

Max Angular Velocity Pitch: 300° /s；Yaw: 150° /s

Max Pitch Angle P Mode: 30°（Forward Vision System enabled: 25°）； A Mode: 35°；S Mode: 35°

Max Ascent Speed 16.4 ft/s (5 m/s)

Max Descent Speed Vertical: 9.8 ft/s (3 m/s)

Max Speed S Mode: 51.4mph (82.8kph), P Mode: 38mph (61.2kph), A Mode: 51.4mph (82.8kph)

Max Service Ceiling Above Sea Level 1.86 mi (3000 m)

Max Wind Resistance 39.4 ft/s (12 m/s)

Max Flight Time(No Payload, with TB50) 27min

Max Flight Time(No Payload, with TB55) 38min

Max Flight Time(Full Payload, with TB50) 13min

Max Flight Time(Full Payload, with TB55) 24min

Motor Model DJI 3515

Propeller Model 1760S

Operating Temperature -4° to 113° F (-20° to 45° C)

IP Rating IP43

Gimbal Installation

Downward Gimbal Mount Supported

Upward Gimbal Mount Not Supported

Downward Dual Gimbal Not Supported

Battery (Standard)

Model TB50

Capacity 4280 mAh

Voltage 22.8V

Battery Type LiPo 6S

Energy 97.58 Wh

Net Weight Approx. 520g

Operating Temperature -4° to 113° F (-20° to 45° C)

Storage Temperature Less than 3 months: -4° to 113° F (-20° to 45° C), More than 3 months: 72° to 82° F (22° to 28° C)

Charging Temperature 41° to 104° F (5° to 40° C)

Max Charging Power 180 W

Charger

Model IN2C180

Voltage 26.1 V

Rated Power 180 W

Forward Vision System

Obstacle Sensing Range 2.3-98.4 feet (0.7-30 m)

FOV Horizontal 60°，Vertical 54°

Operating Environment Surfaces with clear patterns and adequate lighting (> 15 lux)

Downward Vision System

Velocity Range <32.8 ft/s (10 m/s) at the height of 6.56 feet (2 m)

Altitude Range <32.8 feet (10 m)

Operating Range <32.8 feet (10 m)

Operating Environment Surfaces with clear patterns and adequate lighting (> 15 lux)

Ultrasonic Sensor Operating Range 0.33-16.4 feet (10-500 cm)

Ultrasonic Sensor Operating Environment Non-absorbing material, rigid surface (thick indoor carpeting will reduce performance)

Gimbal

Compatible Gimbals Zenmuse X4S, Zenmuse X5S, Zenmuse Z30, Zenmuse XT, Zenmuse XT2, SLANTRANGE 3PX, Sentera AGX710

Remote Controller

Model GL6D10A

Operating Frequency 2.400-2.483 GHz ; 5.725-5.850 GHz

Max Transmitting Distance(unobstructed, free of interference) 2.4 GHz: 4.3 miles (7 km, FCC); 2.2 miles (3.5 km, CE); 2.5 miles (4 km, SRRC) ; 5.8 GHz: 4.3 miles (7 km, FCC); 1.2 miles (2 km, CE); 3.1 miles (5 km, SRRC)

EIRP 2.4 GHz: 26 dBm (FCC); 17 dBm (CE); 20 dBm (SRRC) ; 5.8 GHz: 28 dBm (FCC); 14 dBm (CE); 20 dBm (SRRC)

Video Output Ports USB, HDMI

Power Supply Built-in battery

Charging DJI charger

Dual User Capability Host-and-Slave connection

Mobile Device Holder Tablet or Smart Phone

Max Mobile Device Width 170 mm

Output Power 9 W (Without supplying power to smart device)

Operating Temperature -4° to 104° F (-20° to 40° C)

Storage Temperature Less than 3 months: -4° to 113° F (-20° to 45° C), More than 3 months: 72° to 82° F (22° to 28° C)

Charging Temperature 32° to 104° F (0° to 40° C)

Battery 6000mAh 2S LiPo

USB Supply Power iOS: 1 A @ 5.2 V (Max); Android: 1.5 A @ 5.2 V (Max)

Battery (Optional)

Model TB55

Capacity 7660 mAh

Voltage 22.8V

Battery Type LiPo 6S

Energy 174.6Wh

Net Weight Approx. 885g

Operating Temperature -4° to 113° F (-20° to 45° C)

Storage Temperature Less than 3 months: -20° C to 45° C, More than 3 months: 22° C to 28° C

Charging Temperature 41° to 104° F (5° to 40° C)

Max Charging Power 174.6 W

DJI GO 4 APP

Name DJI GO 4

Mobile Device System Requirements iOS 9.0 or later,Android 4.4.0 or later

Supported Mobile Devices iOS:iPhone 5s, iPhone SE, iPhone 6, iPhone 6 Plus, iPhone 6s, iPhone 6s Plus, iPhone 7, iPhone 7 Plus, iPad Air, iPad Air Wi-Fi + Cellular, iPad mini 2, iPad mini 2 Wi-Fi + Cellular, iPad Air 2, iPad Air 2 Wi-Fi + Cellular, iPad mini 3, iPad mini 3 Wi-Fi + Cellular, iPad mini 4 and iPad mini 4 Wi-Fi + Cellular. This app is optimized for iPhone 7, iPhone 7 Plus. Android:Samsung tabs 705c, Samsung S6, Samsung S5, Samsung NOTE4, Samsung NOTE3, Google Nexus 6p, Nexus 9, Google Nexus 7 II, Ascend Mate7, Huawei P8 Max, Huawei Mate 8, LG V20, Nubia Z7 mini, Sony Xperia Z3, MI 3, MI PAD, Smartisan T1.

*Support for additional devices available as testing and development continues.

Upward Infrared Sensor

Obstacle Sensing Range 0-16.4 feet (0-5 m)

FOV ±5°

Operating Environment Large-sized object with diffuse relecting surface or high relective rate (>10%）
