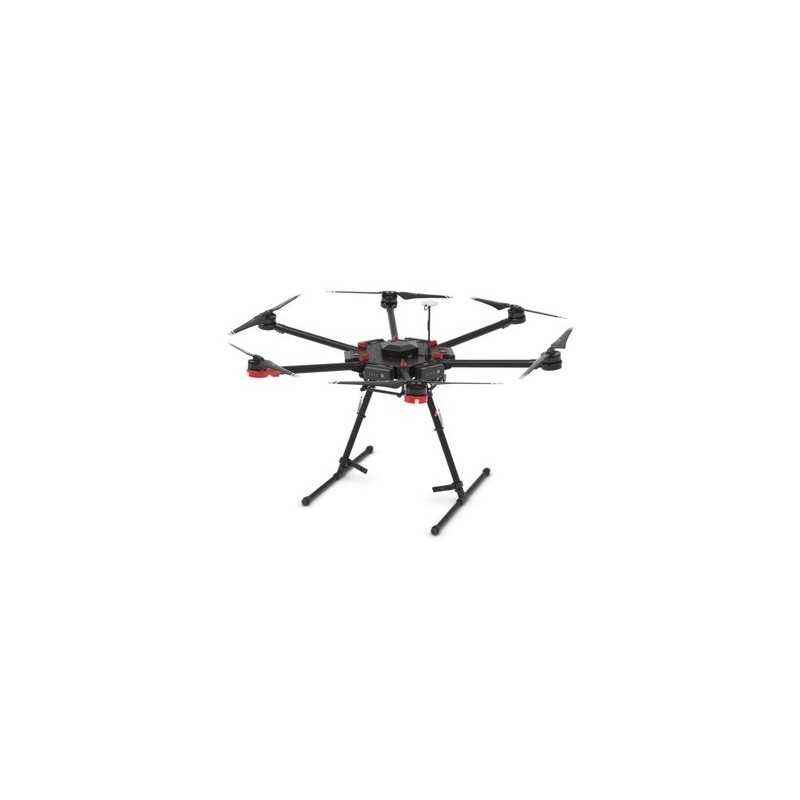

DJI Matrice 600 Drone

The Matrice 600 (M600) is DJI’s new flying platform designed for professional aerial photography and industrial applications. It is  built to closely integrate with a host of powerful DJI technologies, including the A3 flight controller, Lightbridge 2 transmission  system, Intelligent Batteries and Battery Management system, for maximum performance and quick setup.

MATRICE 600Specs

Aircraft

Structure

Diagonal Wheelbase 1133 mm

Aircraft Dimensions 1668 mm x 1518 mm x 759 mm (Propellers, frame arms and GPS mount unfolded) ; 640 mm x 582 mm x 623 mm (Frame arms and GPS mount folded)

Package Dimensions 620 mm x 320 mm x 505 mm

Intelligent Flight Battery Quantity 6

Weight (with six TB47S batteries) 9.1 kg

Weight (with six TB48S batteries) 9.6 kg

Max Takeoff Weight 15.1 kg

Propulsion System

Motor Model DJI 6010

Propeller Model DJI 2170

Other

Supported DJI Gimbals Zenmuse X3; Zenmuse X5 series; Zenmuse XT; Ronin-MX; Zenmuse Z15 series HD gimbals: Z15-A7, Z15-BMPCC, Z15-5D III, Z15-GH4

Retractable Landing Gear Standard

Operating Temperature 14° to 104° F (-10° to 40° C)

Charger

Model A14-100P1A

Voltage Output 26.3 V

Power Rating 100 W

Battery (Optional)

Model TB48S

Capacity 5700 mAh

Voltage 22.8 V

Type LiPo 6S

Energy 129.96 Wh

Net Weight 680 g

Operating Temperature 14° to 104° F (-10° to 40° C)

Storage Temperature Less than 3 months: -4° to 113° F (-20° to 45° C), More than 3 months: 72° to 82° F (22° to 28° C)

Charge Temperature 41° to 104° F (5° to 40° C)

Max Charging Power 180 W

Performance

Hovering Accuracy (P-Mode, with GPS) Vertical: ±0.5 m, Horizontal: ±1.5 m

Max Angular Velocity Pitch: 300°/s, Yaw: 150°/s

Max Pitch Angle 25°

Max Speed of Ascent 5 m/s

Max Speed of Descent 3 m/s

Max Wind Resistance 8 m/s

Max Flight Altitude above Sea Level 2500 m

Max Speed 18 m/s (No wind)

Hovering Time (with six TB47S batteries)* No payload: 35 min, 6 kg payload: 16 min

Hovering Time (with six TB48S batteries)* No payload: 40 min, 5.5 kg payload: 18 min

* The hovering time is based on flying at 10 m above sea level in a no-wind environment and landing with 10% battery level.

Flight Control System

Model A3

Remote Controller

Operating Frequency 920.6 MHz to 928 MHz (Japan) ; 5.725 GHz to 5.825 GHz ; 2.400 GHz to 2.483 GHz

Max Transmission Distance (unobstructed, free of interference) FCC Compliant: 3.1 miles (5 km) ; CE Compliant: 2.1 miles (3.5 km)

EIRP 10 dBm @ 900 M/li> ; 13 dBm @ 5.8 G ; 20 dBm @ 2.4 G

Video Output Port HDMI, SDI, USB

Dual Users Capability Master-and-Slave control

Mobile Device Holder Supports smartphones and tablets

Output Power 9 W

Operating Temperature 14° to 104° F (-10° to 40° C)

Storage Temperature Less than 3 months: -4° to 113° F (-20° to 45° C) ; More than 3 months: 72° to 82° F (22° to 28° C)

Charge Temperature 32° to 104° F (0° to 40° C)

Built-in Battery 6000 mAh, 2S LiPo

Max Tablet Width 170 mm

Battery (Standard)

Model TB47S

Capacity 4500 mAh

Voltage 22.2 V

Type LiPo 6S

Energy 99.9 Wh

Net Weight 595 g

Operating Temperature 14° to 104° F (-10° to 40° C)

Storage Temperature Less than 3 months: -4° to 113° F (-20° to 45° C) ; More than 3 months: 72° to 82° F (22° to 28° C)

Charge Temperature 41° to 104° F (5° to 40° C)

Max Charging Power 180 W
