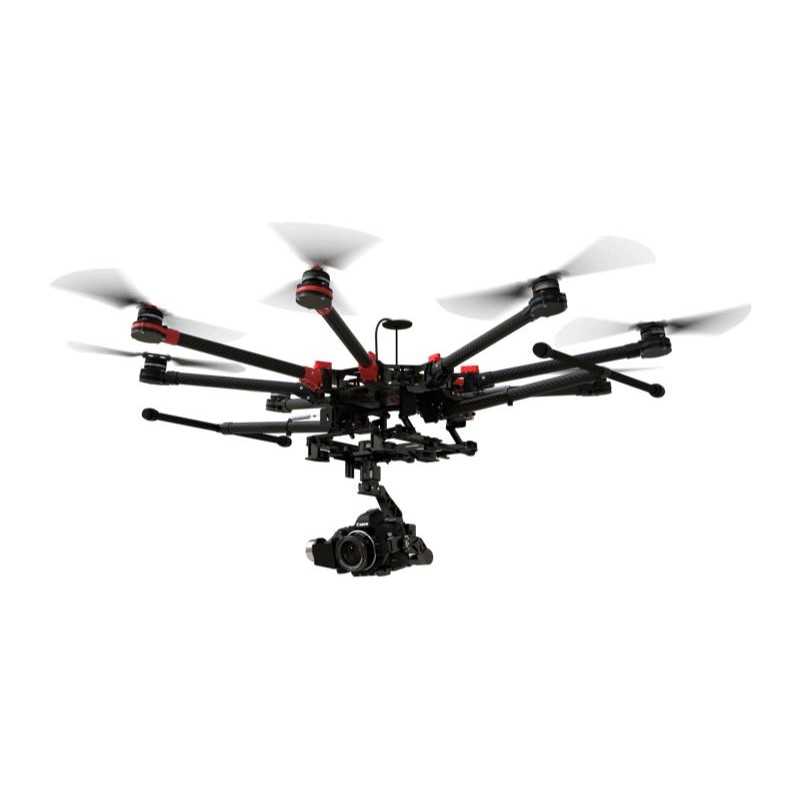

DJI Spreading Wings S1000+ Octocopter
0 $ net price (non-EU countries)
Viktoriia Turzhanska
Product Manager
/
+48723706700
+48723706700
+48723706700
[email protected]
Anatolii Livashevskyi
Product Manager /
+48721808900 +48721808900 +48721808900
[email protected]
Michał Skrok
Product Manager
/
+48721807900 +48721807900
[email protected]
Description
SPREADING WINGS S1000+Specs
Frame
Diagonal Wheelbase 1045mm
Frame Arm Length 386mm
Frame Arm Weight
(Including Motor, ESC, Propeller ) 325g
Center Frame Diameter 337mm
Center Frame Weight (with Landing Gear Mounting Base, Servos) 1520g
Landing Gear Size 460mm(Length)×511mm(Width)×305mm(Height)
ESC
Working Current 40A
Working Voltage 6S LiPo
Signal Frequency 30Hz ~ 450Hz
Drive PWM Frequency 8KHz
Weight(with Radiators) 35g
Flight Parameters
Takeoff Weight 6.0Kg ~ 11.0Kg
Total Weight 4.4Kg
Power Battery LiPo (6S,10000mAh~20000mAh,15C(Min))
Max Power Consumption 4000W
Hover Power Consumption 1500W (@9.5Kg Takeoff Weight)
Hover Time 15min (@15000mAh & 9.5Kg Takeoff Weight)
Working Environment Temperature -10 °C ~ +40 °C
Motor
Stator Size 41×14mm
KV 400rpm/V
Max Power 500W
Weight(with Cooling Fan) 158g
Foldable Propeller (1552/1552R)
Material High strength performance engineered plastics
Size 15×5.2inch
Weight 13g
Gain Value Settings
For A2 flight controller Basic: Roll 120%, Pitch 120%, Yaw 120% ; Attitude: Roll 170%, Pitch 170%, Vertical 120%
For WooKong-M flight controller Basic: Roll 130%, Pitch 130%, Yaw 120% ; Attitude: Roll 180%, Pitch 180%, Vertical 120%
Data sheet
