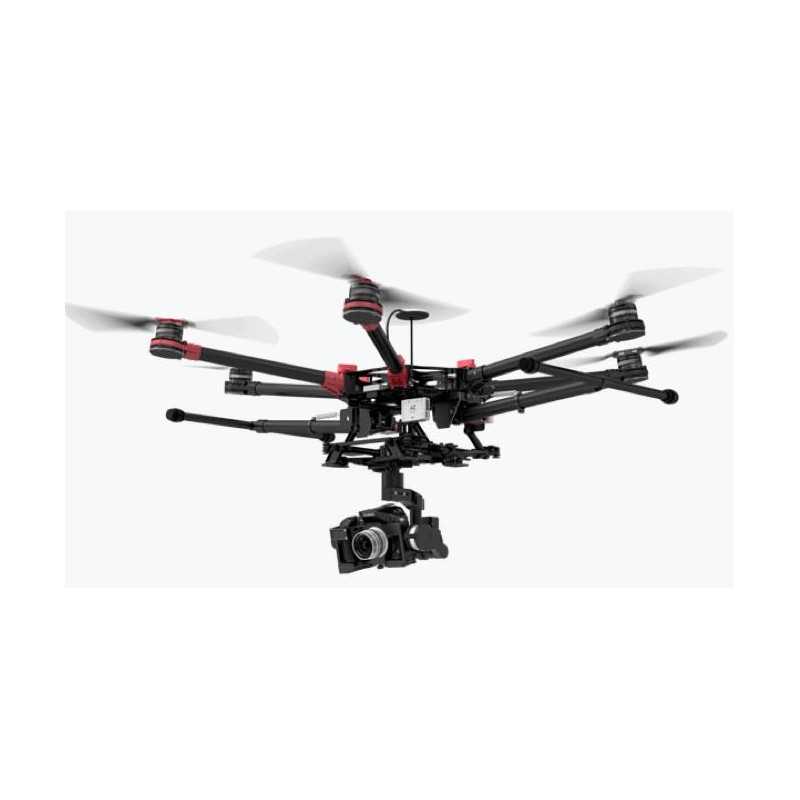

DJI Spreading Wings S900 Hexacopter
0 $ net price (non-EU countries)
Viktoriia Turzhanska
Product Manager
/
+48723706700
+48723706700
+48723706700
[email protected]
Anatolii Livashevskyi
Product Manager
/
+48721808900
+48721808900
+48721808900
[email protected]
Michał Skrok
Product Manager
/
+48721807900
+48721807900
[email protected]
Description
Highly portable, powerful aerial system for the demanding filmmaker.
SPREADING WINGS S900Specs
Frame
Diagonal Wheelbase 900mm
Frame Arm Length 358mm
Frame Arm Weight
(Including Motor, ESC, Propeller ) 316g
Center Frame Diameter 272mm
Center Frame Weight (with Landing Gear Mounting Base, Servos) 1185g
Landing Gear Size 460mm(Length)×450mm(Width)×360mm(Height)
ESC
Working Current 40A
Working Voltage 6S LiPo
Signal Frequency 30Hz ~ 450Hz
Drive PWM Frequency 8KHz
Weight(with Radiators) 35g
Flight Parameters
Takeoff Weight 4.7Kg ~ 8.2Kg
Total Weight 3.3Kg
Power Battery LiPo (6S、10000mAh~15000mAh、15C(Min))
Max Power Consumption 3000W
Hover Power Consumption 1000W (@6.8Kg Takeoff Weight)
Hover Time 18min (@12000mAh& 6.8Kg Takeoff Weight)
Working Environment Temperature -10 °C ~ +40 °C
Motor
Stator Size 41×14mm
KV 400rpm/V
Max Power 500W
Weight(with Cooling Fan) 158g
Foldable Propeller (1552/1552R)
Material High strength performance engineered plastics
Size 15×5.2inch
Weight 13g
Gain Value Settings
For A2 flight controller Basic: Roll 110%, Pitch 110%, Yaw 120% ; Attitude: Roll 220%, Pitch 220%, Vertical 120%
For WooKong-M flight controller Basic: Roll 160%, Pitch 160%, Yaw 160% ; Attitude: Roll 190%, Pitch 190%, Vertical 100%
Data sheet
