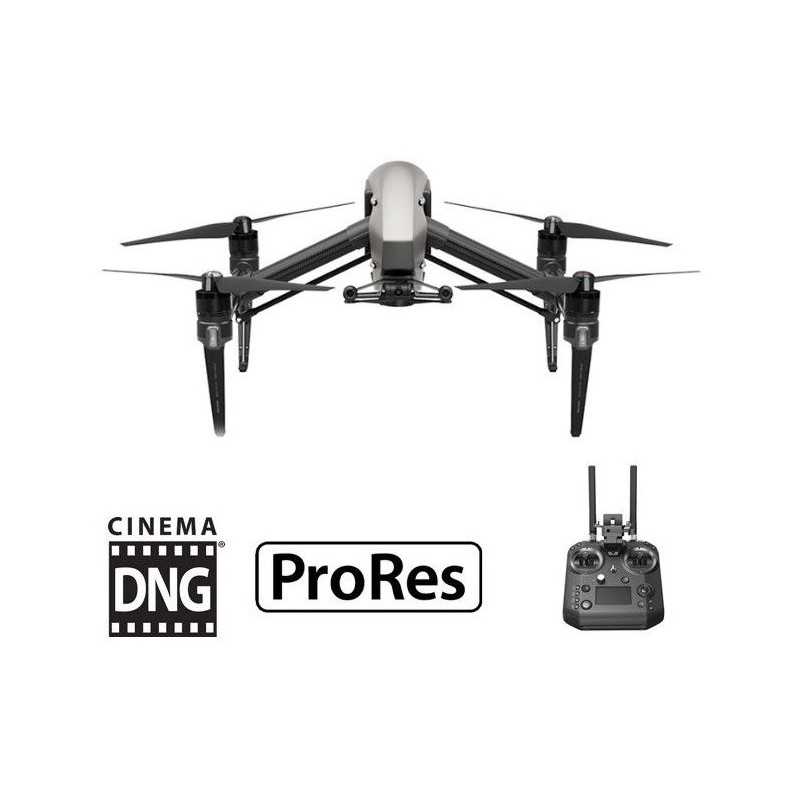

DJI Inspire 2 Raw (Licenses + Cendence)

The Inspire 1 was a revelation. The first filmmaking drone in the world to integrate an HD video transmission system, 360° rotating gimbal and a 4K camera, as well as the simplicity of app control. The launches of the Zenmuse X5 and X5R cameras further cemented the Inspire as a critical tool for filmmakers around the globe.

The Inspire 2 takes everything that was good about the Inspire 1 and improves it. The image processing system CineCore2.0 has been upgraded to CineCore2.1, recording video at up to 6K in CinemaDNG/RAW and 5.2K in Apple ProRes when used with Zenmuse X7 camera. It goes from 0 to 50 mph (80 kph) in just 5 seconds and hits a maximum speed of 58 mph (94 kph) and has a max descent speed of 9m/s for unheard of speed and agility in an aircraft this size. A dual battery system prolongs the flight time to a maximum of 27 minutes (with an X4S), while self-heating technology allows it to fly even in low temperatures. FlightAutonomy has been revised and developed specifically for the Inspire 2, providing two directions of obstacle avoidance and sensor redundancy. Increased intelligence adds multiple intelligent flight modes, including Spotlight Pro, giving even single pilots the ability to create complex, dramatic shots. An upgraded video transmission system is now capable of dual signal frequency and dual channel, streaming video from an onboard FPV camera and the main camera simultaneously, for better pilot and camera operator collaboration.

AIRCRAFT

Structure：Magnesium aluminum composite shell and transforming design, carbon fiber arms

Configuration：Vision sensing, 2-axis FPV camera, range of supported cameras

Propulsion：58 mph (94 kph) max speed, 2 kg of thrust per rotor, 15-in props, 23-min* flight time with X7, 27-min* flight time with X4S.

Battery：Dual battery, self-heating, battery redundancy, 98Wh

IMAGE PROCESSING

Image Processing and storage：6K RAW @ 4.44 Gbps* video recording, all-new CineCore 2.1, integrated DJI CINESSD.File System:FAT32/exFAT universal file system.

Video Format：6K CinemaDNG* and 5.2K Apple ProRes video support, H.265 and H.264 video codec support, 4K video at 100 Mbps. Recorded video can be stored simultaneously on the DJI CINESSD and a Micro- SD card.

REMOTE CONTROLLER

Lightbridge technology:Signal frequency switching between 2.4 GHz and 5.8 GHz. Lightbridge technology.

Controllable range:4.3 mi (7km)*

Primary-secondary mode:One primary and one secondary supported. Multilink required when using multiple secondary controllers.

Ports:Extension port, HDMI port, USB port

PROFESSIONAL IMAGE QUALITY

Integrated into the Inspire 2 is the brand new CineCore 2.1 image processing system, which is capable of recording video in 6K @4.44Gbps CinemaDNG*1, 5.2K @2.08Gbps Apple ProRes*2, and H.265/H.264 @100Mbps. CineCore 2.1 supports burst shots, capturing 10 JPEG + DNG bursts and continuous DNG bursts*3 at 20fps (24MP per shot) when the Zenmuse X7 is mounted. (Currently compatible with the X7, X5S and X4S*4).

EFFICIENT WORKFLOW

The Inspire 2 creative workflow has been completely optimized and is now capable of recording video in CinemaDNG and Apple ProRes, and other common formats for post-production in filmmaking. Also supported are FAT32/exFAT file systems, which allow fast copying of files direct from the CINESSD without additional software.

SENSE AND AVOID

Forward and downward vision systems enable the Inspire 2 to detect obstacles up to 30 meters ahead, allowing for protected flight at up to 34mph (54kph) at a controllable attitude angle of 25°. Upward facing infrared sensors scan obstacles 16ft (5m) above, adding protection when flying in enclosed spaces. Obstacle sensing systems are active during normal flight, RTH and all Intelligent Flight Modes.

SPOTLIGHT PRO

Spotlight Pro is a powerful tracking mode that allows even single pilots to capture complex, dramatic images. It uses advanced visual tracking algorithms to lock onto a subject during flight, regardless of the direction that the Inspire 2 flies, creating shots that would once have required a dedicated camera operator. If the gimbal comes close to reaching its rotation limits, the Inspire 2 itself will rotate in the same direction without affecting flight control or the shot being captured to free up gimbal movement.

It has two shooting modes, Quick Mode and Composition Mode. In Quick Mode, select an object to begin tracking. In Composition Mode, select the subject and the tracking position. When the subject enters the preset tracking position, press the shortcut to begin tracking. The gimbal can be moved during shooting for composition adjustments. Spotlight Pro is available in Intelligent Flight Modes TapFly, Waypoint, and Point of Interest.

INTELLIGENT FLIGHT MODES

In addition to Spotlight Pro, a range of other intelligent flight and shooting modes are available. Obstacle avoidance is optimized when using Point of Interest and Waypoint modes, making complex shots simple and repeatable. Also available are QuickSpin, TapFly and ActiveTrack, to simplify challenging shots.

TapFly

The 2-axis onboard FPV camera separates the flight view from the main camera view, effectively giving the Inspire 2 a dedicated TapFly camera. Tap a point onscreen in the FPV view to set a flight route and the Inspire 2 will automatically fly along that route, leaving the pilot to focus on gimbal movement.

ActiveTrack

The ActiveTrack Mode allows the Inspire 2 to recognize a range of objects, from people to bikes to cars to boats. Tracking profiles that can be adjusted based on the subject being tracked means greater tracking precision.

SMART RETURN TO HOME

Forward and downward vision systems allow the Inspire 2 to create a real-time map of its flight route as it flies. If the video transmission system signal is lost and Smart Return to Home is enabled, it is able to fly home along its original route, and change to a straight line when it regains a signal. As it returns, it will use the primary camera to identify obstacles as far as 200m in front, allowing it to plan a safe route home. It is also able to reconnect more quickly after losing connection.

VIDEO TRANSMISSION SYSTEM

The latest update to DJI Lightbridge technology has an effective transmission distance of up to 4.3mi (7km)* and is capable of delivering both 1080p/720p video as well as the FPV view to pilot and camera operator. Users can also switch between 2.4GHz and 5.8GHz** control frequencies to cut through noise for greater signal stability.

Primary and Secondary Controllers

A new wireless HD image transmission technology sends video information from the primary controller to the secondary controller and the two controllers can be up to 100m apart without loss of image quality.

POWERFUL FLIGHT PERFORMANCE

A new propulsion system optimized for power creates a new level of flight performance. The Inspire 2 flies at up to 58mph (94kph) descends at 9m/s and ascends at 6m/s. It can accelerate from 0 to 50mph (80kph) in just 5 seconds and flies at a max attitude angle of 40°. The two controller sticks are tuned for more sensitivity, making delicate maneuvers easier.

More power also allows the Inspire 2 to fly in more extreme conditions, including over 2500-5000m above sea level (using optional dedicated propellers), and in temperatures as low as -4°F (-20°C) using self-heating Intelligent Flight Batteries.

INCREASED RELIABILITY

Reliability has been further enhanced through dual redundancy of key modules such as the IMU and barometer. The intelligent flight control system monitors the redundancy system, giving it accurate flight data.

The new obstacle sensing system helps the Inspire 2 sense and avoid obstacles, minimizing the risk of collision.

Dual batteries mean that if a problem occurs on one battery the other is able to continue flight long enough for a safe landing. At the same time, the Inspire 2 propulsion system is driven a PWM signal with serial port signal redundancy so that if PWM signals are lost, transmission will continue through the serial port.

This propulsion system has been tested for thousands of hours to ensure reliability, when combined with key sensors and a dual-battery design, overall flight reliability is significantly enhanced.

Included

• Inspire 2 + Licenses
• Cendence transmitter
• Propellers (4 pairs)
• Rechargeable battery (TB50) x2
• Charger
• Charging hub
• Power cable
• USB cable (with double A-type connector)
• Micro SD card (16 GB)
• Video system calibration board
• Case
• Thermal insulation sticker for the battery x4
• User manual

Specifications

Aircraft

Model T650A

Weight 7.58 lbs (3440 g, including propellers and two batteries, without gimbal and camera), Max Takeoff Weight 9.37lbs (4250 g)

GPS Hovering Accuracy Vertical: ±1.64 feet (0.5 m) or ±0.33 feet (0.1 m, Downward Vision System enabled), Horizontal: ±4.92 feet (1.5 m) or ±0.98 feet (0.3 m, Downward Vision System enabled)

Max Angular Velocity Pitch: 300°/s, Yaw: 150°/s

Max Tilt Angle P-mode: 35° (Forward Vision System enabled: 25°), A-mode: 35°, S-mode: 40°

Max Ascent Speed P-mode/A-mode: 16.4 ft/s (5 m/s), S-mode: 19.7 ft/s (6 m/s)

Max Descent Speed Vertical: 13.1 ft/s (4 m/s), Tilt: 13.1-29.5 ft/s (4-9 m/s)

Max Takeoff Sea Level 1.55 mi (2500 m), 3.1 mi (5000 m with specially-designed propeller)

Max Wind Speed Resistance 10 m/s

Max Flight Time Approx. 27min (with Zenmuse X4S), Approx. 23min (with Zenmuse X7) (Hovering at sea level with no wind.)

Motor Model DJI 3512

Propeller Model DJI 1550T

Indoor Hovering Enabled by default

Operating Temperature -4° to 104° F (-20° to 40° C)

Diagonal Distance(propeller excluded) 23.8 inch (605 mm, Landing Mode)

Max Speed 58 mph or 94 kph(Sport mode)

Remote Controller

Model GL6D10A

Operating Frequency 2.400-2.483 GHz, 5.725-5.850 GHz

Max Transmitting Distance(unobstructed, free of interference) 2.4 GHz: FCC: 4.3 miles (7 km); CE: 2.2 miles (3.5 km); SRRC: 2.5 miles (4 km); MIC: 2.5 miles (4 km); 5.8 GHz: FCC: 4.3 miles (7 km); CE: 1.2 miles (2 km); SRRC: 3.1 miles (5 km); MIC: - ;

EIRP 2.4 GHz: FCC: 26 dBm; CE: 17 dBm; SRRC: 20 dBm; MIC: 17dBm; 5.8 GHz: FCC: 28 dBm; CE:14 dBm; SRRC: 20 dBm; MIC: - ;

Video Output Ports USB, HDMI

Power Supply Built-in battery

Charging DJI charger

Dual User Capability Host-and-Slave connection

Mobile Device Holder Tablet or Smart Phone

Max Mobile Device Width 170 mm

Output Power 9 W (Without supplying power to smart device)

Operating Temperature -4° to 104° F (-20° to 40° C)

Storage Temperature Less than 3 months: -4° to 113° F (-20° to 45° C), More than 3 months: 72° to 82° F (22° to 28° C)

Charging Temperature 32° to 104° F (0° to 40° C)

Battery 6000mAh 2S LiPo

USB Supply Power iOS: 1 A @ 5.2 V (Max); Android: 1.5 A @ 5.2 V (Max)

Battery (Standard)

Name Intelligent Flight Battery

Model TB50

Capacity 4280 mAh

Voltage 22.8 V

Battery Type LiPo 6S

Energy 97.58 Wh

Net Weight 515 g

Charging Temperature 41° to 104° F (5° to 40° C)

Operating Temperature -4° to 104° F (-20° to 40° C)

Max Charging Power 180 W

Storage Temperature Less than 3 months: -4° to 113° F (-20° to 45° C), More than 3 months: 72° to 82° F (22° to 28° C)

Downward Vision System

Velocity Range <32.8 ft/s (10 m/s) at height of 6.56 feet (2 m)

Altitude Range <32.8 feet (10 m)

Operating Range <32.8 feet (10 m)

Operating Environment Surfaces with clear patterns and adequate lighting (> 15 lux)

Ultrasonic Sensor Operating Range 0.33-16.4 feet (10-500 cm)

Ultrasonic Sensor Operating Environment Non-absorbing material, rigid surface (thick indoor carpeting will reduce performance)

Upward Infrared Sensor

Obstacle Sensing Range 0-16.4 feet (0-5 m)

FOV ±5°

Operating Environment Large-size non-reflective obstacles

Gimbal

Model ZENMUSE X7(optional), ZENMUSE X5S(optional), ZENMUSE X4S(optional)

Angular Vibration Range ±0.01°

Controllable Range Pitch: -130° to+40°, Roll: ±20°, Pan: ±320°

Max Controllable Speed Pitch: 180°/s, Roll: 180°/s, Pan: 270°/s

Interface Type Detachable

Mechanical Range Pitch: -140° to+50°, Roll: -50° to+90°, Pan: ±330°

Charger

Model IN2C180

Voltage 26.1 V

Rated Power 180 W

Charging Hub

Model IN2CH

Input Voltage 26.1 V

Input Current 6.9 A

Forward Vision System

Obstacle Sensing Range 2.3-98.4 feet (0.7-30 m)

FOV Horizontal: 60°; Vertical: 54°

Operating Environment Surfaces with clear patterns and adequate lighting (> 15 lux)

APP

Name DJI GO 4
