DJI Matrice 300 RTK OSDK Expansion Module

The OSDK expansion module can attach a Manifold 2 onto the Matrice 300 RTK platform, and offers standard adapter interfaces to allow connection with various onboard computing platforms.

Compatible with the M300 RTK and Manifold 2.

Converts interfaces on the M300 RTK OSDK to standard interfaces such as USB Type-A, UART serial port and XT30 power output, to allow for connection with onboard computing platforms.

Can be used with the single upward gimbal to meet the needs of more scenarios.

When mounted onto the M300 RTK, the module can be put into the safety transport case while attached to the drone, ensuring easier storage.

This module converts the M300 RTK OSDK interfaces to standard interfaces such as USB Type-A, UART serial ports and XT30 power plugs, to allow connection with onboard computing platforms. The module is not designed with dust-proof or water-proof capabilities.

Please assemble according to the instructions in he User Manual before use.

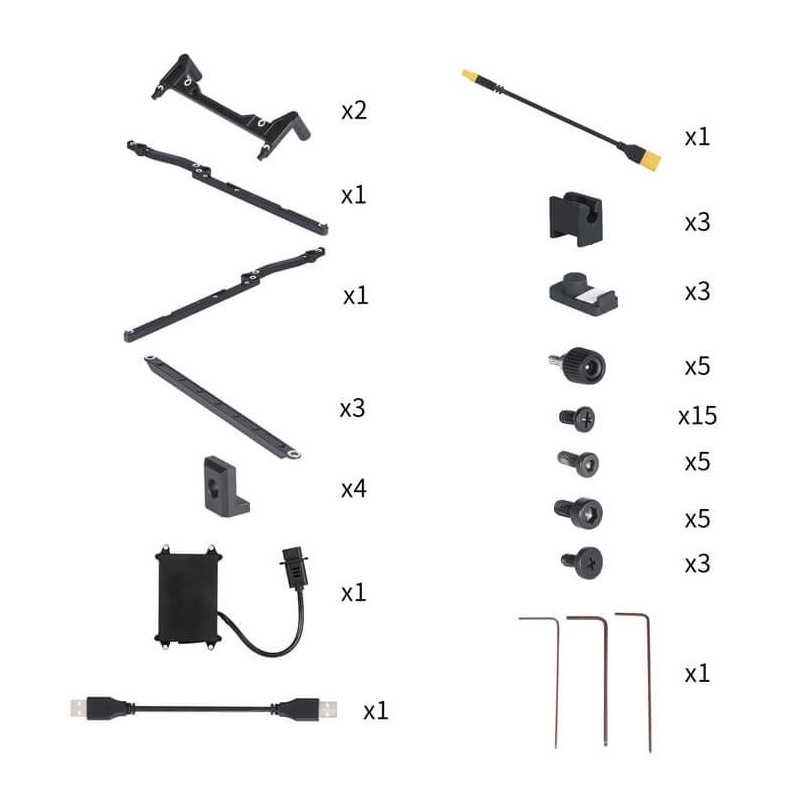

In The Box

Bracket A (upper) x 2

Bracket B (left) x 1

Bracket C (right) x 1

Bracket D (reinforcing rib) x 3

Bracket connection block x 4

OSDK adapter plate module x 1

USB cable (with two type-A ports) x 1

XT30 power cable x 1

Wire clip x 3

Foot pad x 3

Hand screw x 5

Screw A (M1.6) x 15

Screw B (M2.0) x 5

Screw C (M3.0) x 5

Screw D (M1.6 step) x 3

Screwdriver kit x 1

Specifications

As-assembled size: 200 x 120 x 40 mm

Compatibility

Matrice M300 RTK

Manifold 2
