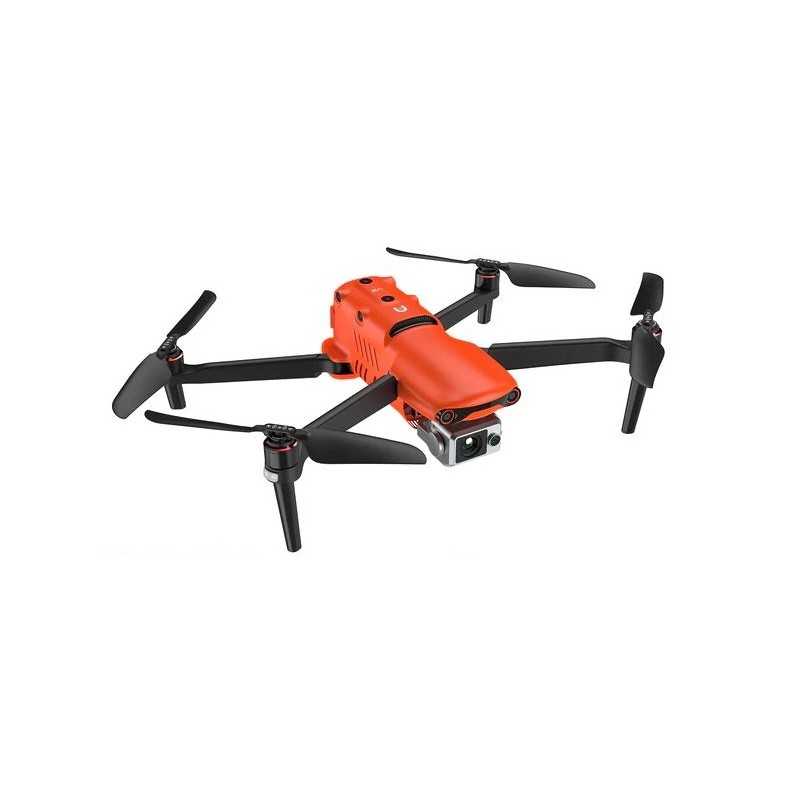

Autel EVO II Dual 640T V3 Drone

Autel Robotics EVO II Dual 640T V3 Drone

Atuel Robotics EVO II Dual 640T V3 is equipped with a 640*512 high-resolution thermal imaging camera and 8K ultra HD visible light camera, enabling you to capture highly detailed imagery to achieve optimal insights.

In addition to the Dual camera, the EVO II Dual 640T V3 can accurately detect heat sources within a distance of 2-15 meters. By leveraging the compensation algorithm of infrared temperature measurement, the 640T can regulate temperature deviations within 3 degrees Celsius.

A New Generation Of Thermal Sensor

The 640x512 sensor provides greater resolution than any camera in its class, enabling pilots to see deep detail in dark environments. The new generation of the Autel Robotics thermal imaging sensor has a resolution of up to 640x512@30 fps. It also comes standard with a 13mm lens, and 16x digital zoom, and can recognize subjects up to 100 m away.

DRI Ranges: See a specific subject's identity, activity, or personal items from long distance

• Detection：Detect if an object is present.
• Recognition：See what type of object it is (i.e. person, vehicle, airplane).
• Identification：Determine subject affiliation and intent.

Maximum Efficiency In All Viewing Conditions

EVO II Dual 640T V3 supports up to 10 thermal palettes, enabling pilots to cope with a variety of complex shooting environments and mission scenarios.

Picture-in-Picture Mode (For Enhanced Situational Awareness)

Visual and thermal imagery are combined to help users quickly interpret data and aid in critical decision-making.

A Thend Preserve Even The Smallest Of Details

50MP Ultra-Sensitive Camera

Moonlight Algorithm 2.0 —The EVO II Dual 640T V3's RYYB sensor features the Moonlight Algorithm 2.0 that provides excellent noise reduction in limited lighting conditions, further enhancing its 50 megapixel camera to give users more detail for better forensics and analysis.

0.8" Sensor Size—The EVO II Dual 640T V3's 0.8" RYYB CMOS offers up to 144%~233% more surface area when compared to 1/2" or 1/2.3" competitors for maximum details in high-contrast lighting conditions.

RYYB Sensor Technology—RYYB sensor technology moves away from RGB cameras by offering up to 40% more light sensitivity in low light scenarios.

PDAF+CDAF Autofocus System—Never lose sights of your subjects with a combination of PDAF (Phase Detection Auto Focus) and CDAF (Contrast Detection Auto Focus) technology for fast and accurate tracking.

8K Video, Unmatched Clarity

EVO II Dual 640T V3 records in resolutions up to 7680x4320. With 4 times more pixels than 4K (and 16 times more than HD), 8K videos redefine image clarity and depth.

48MP Camera

The 48MP sensor captures every forensic-relevant detail to assist in precise evidence capture. Both thermal and RGB images are provided with embedded metadata, making the EVO II Dual 640T V3 the ultimate public safety tool.

4K HDR For Greater Dynamic Range

4K HDR automatically balances overexposure and underexposure when shooting scenes with too much contrast, producing clearer images with more layers.

Powerful Telephone Zoom

Get The Full Scene，The system supports 16x digital zoom and 4x lossless zoom, providing long-distance image acquisition and detailed insight into scenes safely.

360° Obstacle Avoidance

Omnidirectional Obstacle Avoidance With 12 Visual Sensors

 Equipped with 19 groups of sensors — including 12 visual sensors, the main camera, ultrasound, and dual IMUs — the EVO II Dual 640T V3 can easily build three-dimensional maps and plan paths through complex terrain in real-time.

Dynamic Track 2.0

 The EVO II Dual 640T V3 can model the location and speed of targets simultaneously, predict their trajectory accurately, and track them continuously while identifying up to 64 objects at the same time.

Industry Leading Performance

38minutes Maximum Flight Time     45mph (20m/s) Maximum Flight Speed

27mph (12m/s) Maximum Wind Resistance 2lbs (920g) Maximum Lift Capability

Modular Design - Unlimited Expansion

Modular Design - Unlimited expansion,with V3 logo on the drone.

Deploy Rapidly - The EVO II 640T V3 can go from its case to the air in 45 seconds.

No Fly Zones - EVO II Dual 640T V3 does not have any no fly zones and will not prevent the pilot from taking off.(Please fly safely and consult your local laws and regulations.)

No Forced Updates - EVO II Dual 640T V3 does not need to be on the latest hardware or app version in order to take off unlike other competitors.(It’s required to update the latest firmware and app to enjoy comprehensive warranty)

Live Video Streaming - The EVO II Pro Dual 640T V3 is compatible with Live Deck 2, which offer multiport streaming to monitors and Wifi support for multiple smart phones.

1080P/60FPS           12KM Transmission Range

SkyLink 2.0 Video Transmission

SkyLink 2.0 is built into the EVO II V3 chipset, expanding the possibilities for your most critical workflows.

9+ Miles—Do more because you can fly further away.

QHD—Incredible video resolution within a mile, meeting most common use cases.

2.4GHz / 5.8GHz—Support tri-band communication with automatic frequency hopping for maximum anti-interference capabilities.

Autel Smart Controller V3

EVO II Dual 640T V3 upgraded with Smart Controller V3,7.9-inch, 2000 nit high-brightness screen is clearly visible even under direct sunlight.The customized Android system allows for additional flexibility with 3rd party apps and an IP43 rating ensures all weather performance.

What's In The Box?

Aircraft(Battery,propeller,gimbal cover,32G SD card included)*1

Remote Controller(sticks included)*1

Spare Propeller(pair)*2

Spare Battery*2

Battery Charger+Power cable*1

Car charger*1

Multi-charger*1

RC charger*1

RC charger cable*1

Spare control stick(pair)*1

RC protective case*1

RC landyard*1

Carring Case*1

Quick guide*1

EVO II Dual 640T Specs

Aircraft

Takeoff weight 1150 g

Max takeoff weight 2000 g

Size(L*W*H) 230*130*108mm（folded）457*558*108mm（unfolded）

Wheelbase 397 mm

Maximum service ceiling altitude 7000 m

Max ascent speed 8 m/s (Ludicrous)

Max descent speed 4 m/s (Ludicrous)

Max horizontal flight speed 20m/s (Ludicrous)

Max flight distance (no wind) 22 km

Max angular velocity 120°/s

Max tilt angle 33° (Ludicrous)

Max flight time (no wind) 38 min

Max hovering time (no wind) 33 min

Operating temperature range -10℃ ~ 40℃

Maximum resistance to wind 12 m/s (Take-off and landing)

Operating frequency 902-928MHz (FCC Only), 2.400-2.4835GHz, 5.725-5.850GHz (non-Japan), 5.650-5.755GHz (Japan Only)

Transmission power 900M FCC/ ISED：≤31dBm ; 2.4G FCC/ ISED：≤32dBm, SRRC/CE/MIC/RCM：≤20dBm ; 5.8G (non-Japan) ; 5.7G (Japan) FCC/ISED/SRRC/MIC：≤33dBm, CE/ RCM：≤14dBm

Hovering accuracy Vertical: ±0.1 m (when the visual positioning is working normally); ±0.5 m (when GPS works normally) ; Horizontal: ±0.3 m (when the visual positioning is working normally); ±1.5 m (when GPS works normally)

GNSS GPS/Beidou/Glonass/Gallieo

Internal storage 8GB

SD storage max. support 256GB (UHS-3 or Class 10)

Gimbal

Gimbal 3-axis stabilization

Mechanical range Tilt: -135° to +45°; Pan: -100° to +100°

Controllable rotation range Tilt: -90° to +30°; Pan: -90° to +90°

Max control speed (Tilt) 300°/s

Angular Vibration Range ±0.005°

Remote controller and image transmission

Operating frequency 902-928MHz (FCC Only), 2.400-2.4835GHz, 5.725-5.850GHz (non-Japan), 5.650-5.755GHz (Japan Only)

Transmission power FCC：≤33dBm, CE：≤[email protected]，≤[email protected], SRRC：≤[email protected]，≤[email protected]/5.7G

Max Transmission Distance (unobstructed, free of interference) FCC：15km, CE：8km

Display screen 2048x1536 60fps

Battery 5800mAh

Operating time ~3 hours (Max. Brightness), ~4.5 hours (50% Brightness)

Charging time 120 minutes

Internal Storage ROM 128GB

Sensing system

Sensing system type Omnidirectional sensing system

Forward Accurate measurement range: 0.5-18 m, Effective sensing speed:<12m/s, Viewing angle: Horizontal: 60°, Vertical: 80°

Backward Accurate measurement range: 0.5-16 m, Effective sensing speed:<12m/s, Viewing angle: Horizontal: 60°, Vertical: 80°

Upward Accurate measurement range: 0.5-10 m, Effective sensing speed:<5m/s, Viewing angle: Horizontal: 65°, Vertical: 50°

Downward Accurate measurement range: 0.5-10 m, Effective sensing speed:<5m/s, Viewing angle: horizontal: 100°, vertical: 80°

Left and right Accurate measurement range: 0.5-10 m, Effective sensing speed:<5m/s, Viewing angle: horizontal: 65°, vertical: 50°

Operating Environment Forward, Backward and Sides: Surface with clear pattern and adequate lighting (lux > 15) ; Upward: Detects diffuse reflective surfaces (>20%) (walls, trees, people, etc.) ; Downward: Surface with clear pattern and adequate lighting (lux > 15) Detects diffuse reflective surfaces (>20%) (walls, trees, people, etc.)

Thermal camera

Sensor Uncooled VOx Microbolometer

Lens FOV H33°V26°, Focal length 13mm

Zoom 1 - 16x

Pixel size 12μm

Wavelength range 8 - 14μm

Temperature range High gain mode: -20° to +150°, Low gain mode: 0° to +550°

Temperature measurement accuracy ±3℃ or ±3% of reading (whichever is greater) @Environmental temperature-20℃~60℃

Accurate temperature measurement distance 2-20 meters

Video resolution 640x512@30fps

Video format MOV / MP4 (Support H.264/H.265)

Camera resolution Infrared mode: 640*512, Picture-in-picture mode: 1920*1080, 1280*720

Photo mode Single shot, Burst shooting: 3/5 frames, 3 is the default, Time Lapse:JPG: 2s/5s/7s/10s/20s/30s/60s

Photo format JPG (with irg file)

Visible light camera

Sensor 1/1.28"(0.8") CMOS; 50M effective pixels

Lens FOV: 85°, 35 mm format equivalent focal length: 23 mm, Aperture: f/1.9, Focus range: 0.5 m to infinity (with auto focus)

ISO range Video: 100-64000, Photo: 100-6400

Shutter speed Photo mode: 1/8000 ~ 8s, Other: 1/8000 ~ 1/frame rates

Zoom 1-16x (up to 4x lossless zoom)

Photo mode Single shot/Burst shooting/AEB/Time Lapse/HDR imaging

Maximum photo size 8192*6144（4:3）4096*3072（4:3）3840x2160（16:9）

Image Format JPG (default) / DNG / JPG+DNG

Video format MOV / MP4

Video resolution 3840x2160P60/P50/P48/P30/P25/P24, 2720x1528P60/P50/P48/P30/P25/P24, 1920x1080P60/P50/P48/P30/P25/P24

Max bitrate 120Mbps

Supported file system FAT32/exFAT

Battery

Capacity 7100 mAh

Voltage 11.55 V

Battery type LiPo 3S

Energy 82 Wh

Weight 365 g

Charging temperature range 5℃ to 45℃

Storage temperature and humidity -10~30℃，65±20%RH

Recommended storage temperature 22-28℃

Max charging power 93W

Charging time 90 minutes

Charger

Input 100-240 V, 50/60 Hz, 1.5A

Output 13.2 V ⎓ 5 A, 5V⎓3A 9V⎓2A 12V⎓1.5A

Voltage 13.2±0.1V

Rated power 66W

Multi-Charger

Voltage 13.2 V

Charging temperature range 5℃ to 45℃
