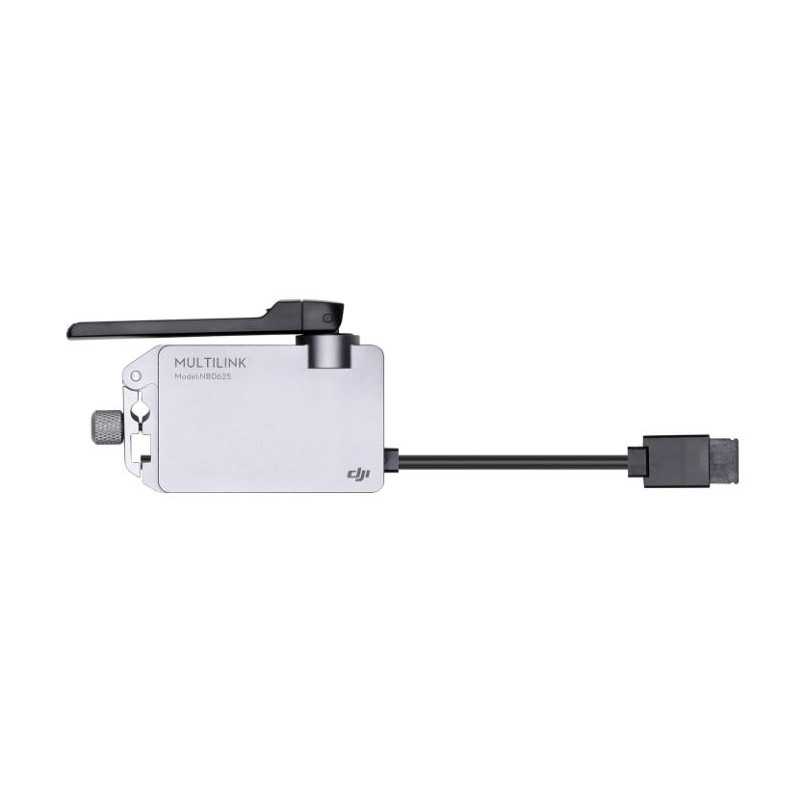

DJI Multilink - Inspire 2 and Cendence Remote Controllers
80.48 $ net price (non-EU countries)
Viktoriia Turzhanska
Product Manager
/
+48723706700
+48723706700
+48723706700
[email protected]
Anatolii Livashevskyi
Product Manager
/
+48721808900
+48721808900
+48721808900
[email protected]
Michał Skrok
Product Manager
/
+48721807900
+48721807900
[email protected]
Description
Multilink connects with the Inspire 2 remote controller and Cendence remote controllers to create a primary-secondary network with three secondary controllers. The secondary controllers connected to Multilink form a star network with the primary controller as the hub. The secondary controllers can send commands to the aircraft through the primary controller and receive images and video signals from the aircraft directly.
- Used with the Inspire 2 remote and Cendence remote controllers.
- Use with the Cendence remote controller and patch antenna for best results.
- Creates a primary-secondary controller network with three secondary controllers for efficient filming and photography.
- Primary and secondary controllers can maintain communication at distances of up to 150m.
Multilink is not compatible with the DJI Matrice series.
In the Box
Multilink Module × 1
Specifications
Operating Frequency: 2400-2483.5 MHz, 5725-5850 MHz
EIRP: 2.4 GHz: FCC<25 dBm, CE<20 dBm, SRRC<20 dBm; 5.8 GHz: FCC<29 dBm, CE<14 dBm, SRRC<19 dBm
Maximum Communication Distance: 150 m (2.4 GHz), 100 m (5.8 GHz)
Input: 4.2-5.5 V, 1 A Max
Maximum Delay (From Primary to Secondary 3): 7.5 ms (5.8 GHz) / 11.1 ms (2.4 GHz)
Minimum Delay (From Primary to Secondary 1): 2.5 ms (5.8 GHz) / 3.7 ms (2.4 GHz)
Operation Environment Temperature: -4 ° to 104 ° F (-20 ℃ to 40 ℃)
Compatible DJI Devices for CAN Port: DJI Focus, Inspire 2 GPS module for the remote controller, Patch Antenna
Compatibility
Inspire 2 Remote Controller
Cendence Remote Controller
