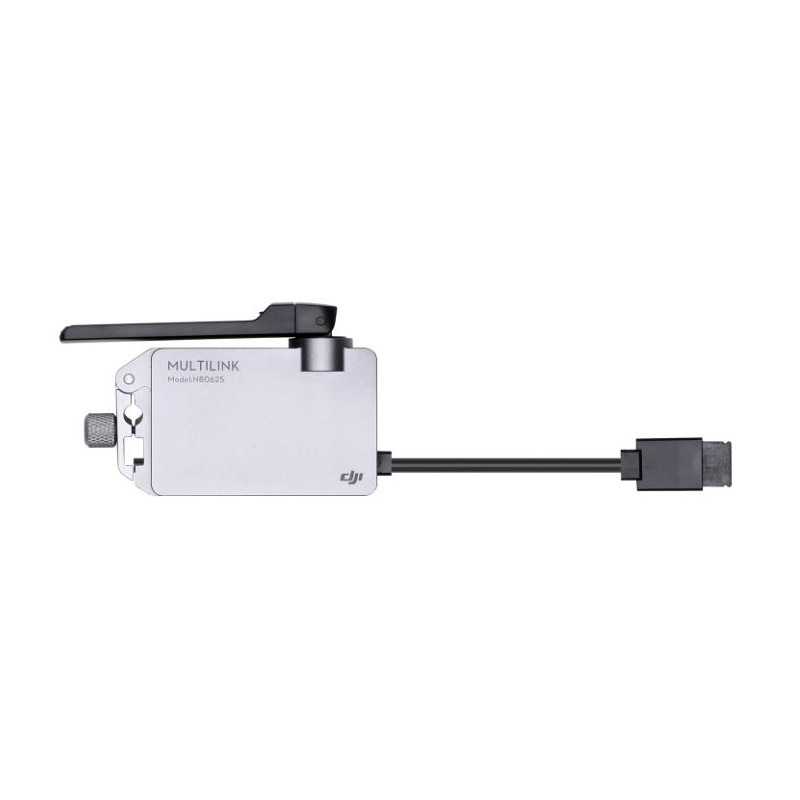

DJI Multilink (3 pcs) - Inspire 2 and Cendence Remote Controllers

Multilink connects with the Inspire 2 remote controller and Cendence remote controllers to create a primary-secondary network with three secondary controllers. The secondary controllers connected to Multilink form a star network with the primary controller as the hub. The secondary controllers can send commands to the aircraft through the primary controller and receive images and video signals from the aircraft directly.

• Used with the Inspire 2 remote and Cendence remote controllers.
• Use with the Cendence remote controller and patch antenna for best results.
• Creates a primary-secondary controller network with three secondary controllers for efficient filming and photography.
• Primary and secondary controllers can maintain communication at distances of up to 150m.

Multilink is not compatible with the DJI Matrice series.

In the Box

Multilink Module × 3

Specifications

Operating Frequency: 2400-2483.5 MHz, 5725-5850 MHz

EIRP: 2.4 GHz: FCC＜25 dBm, CE＜20 dBm, SRRC＜20 dBm; 5.8 GHz: FCC＜29 dBm, CE＜14 dBm, SRRC＜19 dBm

Maximum Communication Distance: 150 m (2.4 GHz), 100 m (5.8 GHz)

Input: 4.2-5.5 V, 1 A Max

Maximum Delay (From Primary to Secondary 3): 7.5 ms (5.8 GHz) / 11.1 ms (2.4 GHz)

Minimum Delay (From Primary to Secondary 1): 2.5 ms (5.8 GHz) / 3.7 ms (2.4 GHz)

Operation Environment Temperature: -4 ° to 104 ° F (-20 ℃ to 40 ℃)

Compatible DJI Devices for CAN Port: DJI Focus, Inspire 2 GPS module for the remote controller, Patch Antenna

Compatibility

Inspire 2 Remote Controller

Cendence Remote Controller
