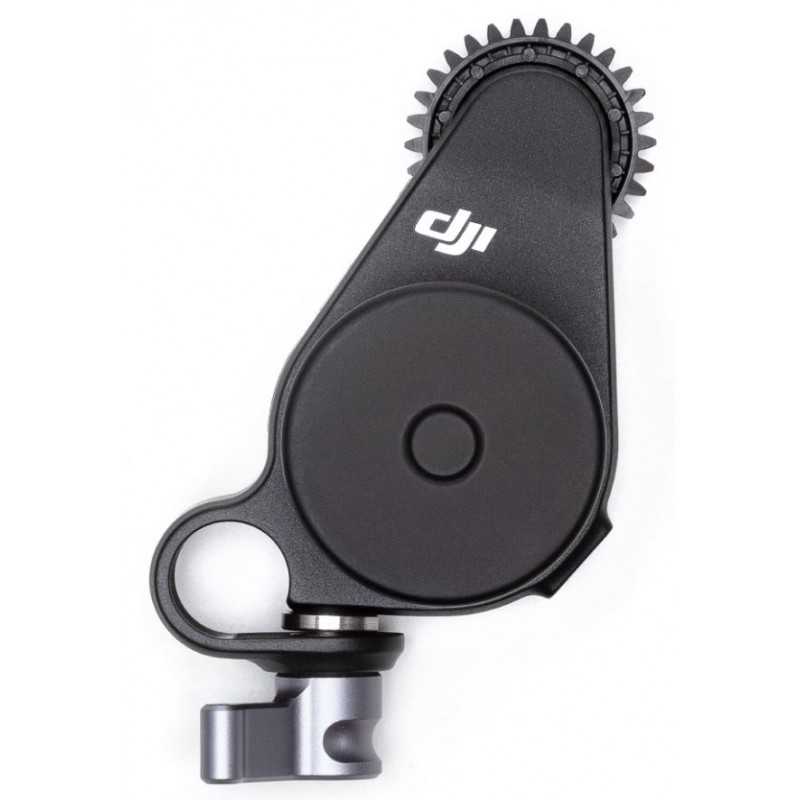

DJI RS Focus Motor 2022

The next-generation DJI RS Focus Motor (2022) provides torque three times stronger (up to 1 N·m), and noise is reduced by 50%. This delivers a smoother focusing experience and avoids affecting audio recording. It also adopts a quick-release structure, allowing it to be assembled easily without any tools for faster use.

Torque three times stronger and noise reduced by 50%. Quick-release structure delivers a smoother and more reliable focusing experience.

In The Box

Focus Motor (2022) × 1

Focus Motor Rod Mount Kit Combo × 1

Focus Gear Strip × 1

Multi-Camera Control Cable (USB-C, 30 cm) × 1

M4 Screw (10 mm) × 4

Allen Wrench (3 mm) × 1

Lens-Fastening Strap × 1

Specifications

Structure:

Weight: 108 g

Dimensions: 80×50×36 mm (L×W×H)

Rod: 12 mm

Specifications:

Max Torque: 1.0 N·m (8 V)

Max Speed: 180 rpm (8 V)

Electrical Properties:

Free Current: 50 mA (5 V)

Stall Current: 2.8 A (8 V)

Operating Voltage: 6 to 17.6 V

Noise:

45 dB

Gear:

Number of Teeth: 30

Module: 0.8

Operating Temperature:

-20° to 45° C (-4° to 113° F)

Compatibility

DJI RS 3 Pro

DJI RS 3

DJI RS 2

DJI RSC 2
