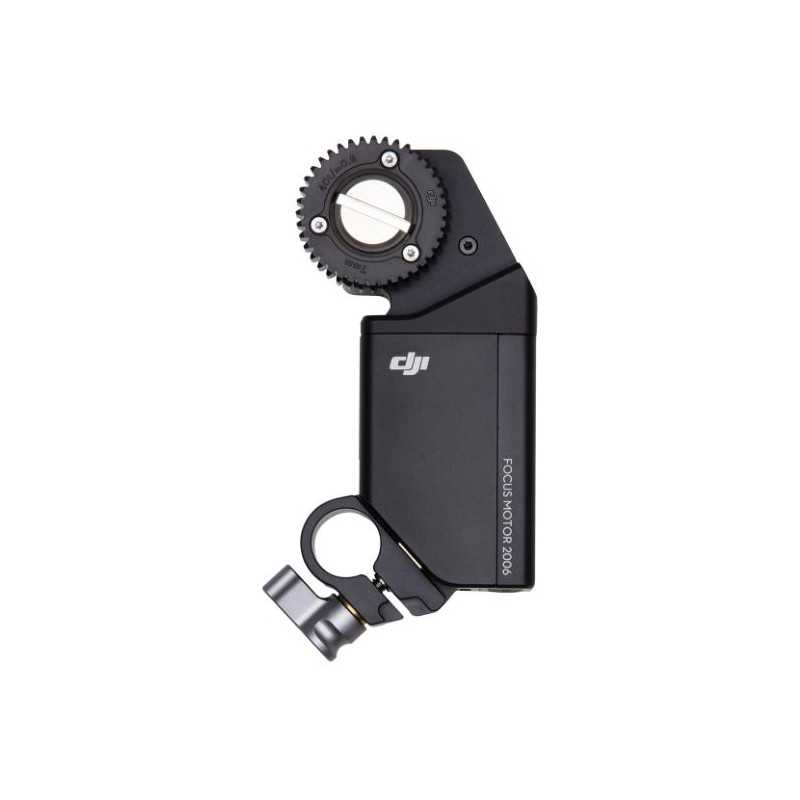

DJI Ronin-S Focus Motor
134.41 $ net price (non-EU countries)
100% secure payments
Viktoriia Turzhanska
Product Manager
/
+48723706700
+48723706700
+48723706700
[email protected]
Anatolii Livashevskyi
Product Manager /
+48721808900 +48721808900 +48721808900
[email protected]
Michał Skrok
Product Manager
/
+48721807900 +48721807900
[email protected]
Description
The Ronin-S Focus Motor is used with the Ronin-S Focus Wheel to control the focus, iris, and zoom.
In the Box
Focus Motor × 1
Rod Mount × 1
15 mm Rod × 2
Screw × 4
Focus Gear Strip × 2
Power Cable × 1
Specifications
Focus Motor:
Weight: 198 g (power cable included)
Dimensions: 110 x 53 x 30 mm
Max. Torque: 0.5 Nm
Max. Speed: 210 RPM
Operating Current: Free current: 25 mA (12 V); Stall current: 0.5 A (12 V)
Operating Voltage: 6-17 V
Noise: 25 dB
Rod Clamp Inner Diameter: 15 mm
Gear: No. of teeth: 40; Module: 0.8
Operating Temperature: -20 to 55°C
Gear:
No. of Teeth: 151
Module: 0.8
Diameter: 30 to 110 mm
Length: 377 mm
Compatibility
Ronin-S
Data sheet
