DJI RoboMaster TT Expansion Kit: Elevate Your Drone Experience

Unlock the full potential of your drone with the DJI RoboMaster TT Expansion Kit. Designed for enthusiasts and developers, this kit transforms your TELLO EDU into a versatile RoboMaster TT, offering an enhanced DIY flight experience with its robust components and comprehensive programming support.

Product Features

• Enhanced Stability: Dual-band Wi-Fi (2.4 GHz and 5.8 GHz) for a more reliable connection.
• Versatile Programming: Supports SDK, Arduino, Scratch, and MicroPython, with offline programming capabilities.
• Third-Party Sensor Compatibility: Expand the drone's functionality with additional sensors.
• TOF Distance Sensing Module: Accurate distance measurement with a maximum range of 1.2 meters indoors.
• Programmable Dot-Matrix Display: Create custom visual displays with an 8×8 red and blue LED matrix.
• Full Color LED Light: Enhance your drone's appearance with customizable LED lighting.

**Note:** This expansion kit should be used with TELLO EDU or RoboMaster TT for optimal performance.

In The Box

• Open-Source Controller x 1
• Dot-Matrix Display & Distance Sensing Module x 1
• Extension Board x 1
• Micro USB Cable x 1
• TT Snap-On Top Cover x 1

Specifications

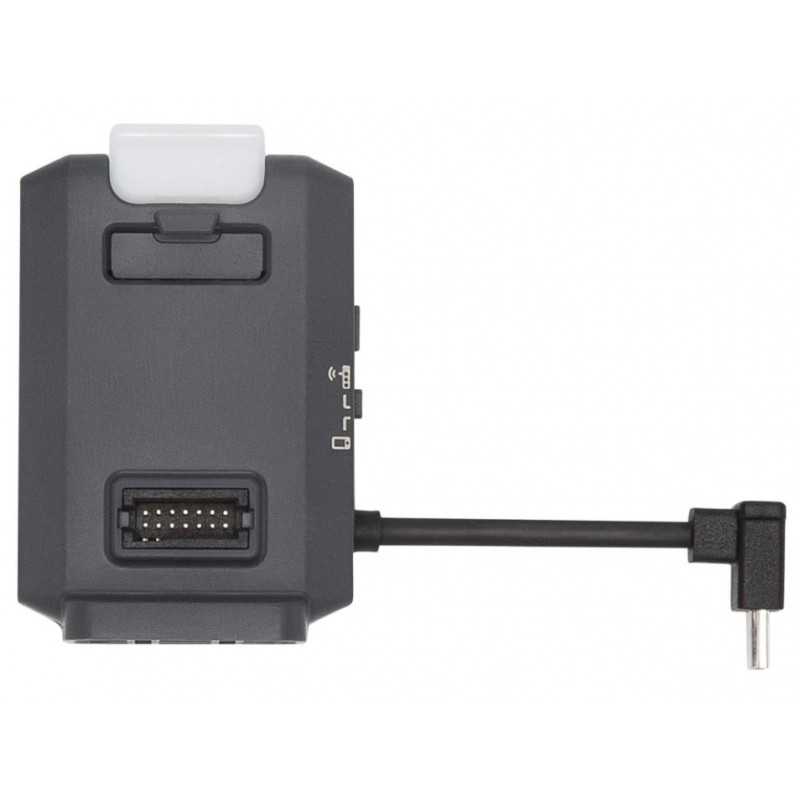

Open-Source Controller

• Dimensions: 49.5×32×15.2 mm
• Wi-Fi: 2.4 GHz and 5.8 GHz
• Bluetooth: 2.4 GHz
• MCU: ESP32-D2WD, dual-core at 160 MHz, 400 MIPS
• Expansion: 14-pin expansion port (I2C, UART, SPI, GPIO, PWM, power source)
• LED: Programmable full color LED indicator

Dot-Matrix Display & Distance Sensing Module

• Dimensions: 35.3×31.5×8.6 mm
• LED: Red and blue LED 8×8 matrix
• Driver Function: Adjustable 256 global brightness, adjustable single-pixel 256 brightness
• Distance Sensing: TOF (Time-of-Flight) sensor
• Maximum Sensing Distance: 1.2 m (indoors with a white wall)

Extension Board

• DIY Connection: 14-pin extension port to 2×7 pin, 2.54mm dual in-line package
• Additional Features: Two reserved positions for 5V/3.3V power indicators, two reserved positions for test indicators

Compatibility

• TELLO EDU
• RoboMaster TT

Enhance your drone capabilities with the DJI RoboMaster TT Expansion Kit, perfect for hobbyists and developers eager to explore new possibilities in drone technology.
