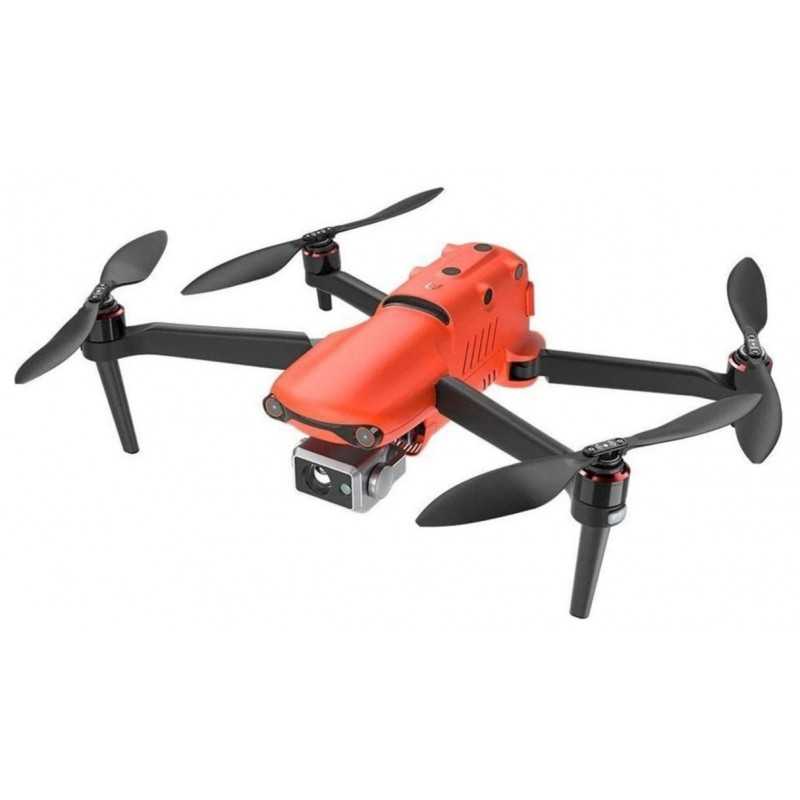

Autel EVO II Dual Rugged Bundle (640T) V2

A New Generation Of Thermal Sensor

The 640x512 sensor provides greater resolution than any camera in its class, enabling pilots to see deep detail in dark environments.

The new generation of the Autel Robotics thermal imaging sensor has a resolution of up to 640x512@30 fps. It also comes standard with a 13mm lens, 16x digital zoom, and is capable of recognizing subjects at up to 100 m away.

• 640x512 Resolution
• 30Hz Refresh Rate
• Picture-in-Picture Mode
• 10 Thermal Color Palettes

Maximum Efficiency In All Viewing Conditions

EVO II Dual 640T supports up to 10 thermal palettes, enabling pilots to cope with a variety of complex shooting environments and mission scenarios.

Picture-in-Picture Mode (For Enhanced Situational Awareness)

Visual and thermal imagery are combined to help users quickly interpret data and aid in critical decision making.

Capture And Preserve Even The Smallest Of Details

8K Video, Unmatched Clarity

EVO II Dual 640T records in resolutions up to 7680x4320. With 4 times more pixels than 4K (and 16 times more than HD), 8K videos redefine image clarity and depth.

48MP Camera

The 48MP sensor captures every forensic-relevant detail to assist in precise evidence capture. Both thermal and RGB images are provided with embedded metadata, making the EVO II Dual 640T the ultimate public safety tool.

4x Lossless Zoom

The high resolution provides the ability to zoom deep into a scene and crop an image or video to 4K without any loss in quality. Capture a scene, zoom in, and reframe your shots with ease.

4K HDR For Greater Dynamic Range

4K HDR offers greater detail in highlights and shadows, providing higher-quality images from the most demanding environments.

Omnidirectional Obstacle Avoidance With 12 Visual Sensors

Equipped with 19 groups of sensors — including 12 visual sensors, the main camera, ultrasound, and dual IMUs — the EVO II Dual 640T can easily build three-dimensional maps and plan paths through complex terrain in real time.

Dynamic Track 2.0

The EVO II Dual 640T can model the location and speed of targets simultaneously, predict their trajectory accurately, and track them continuously while identifying up to 64 objects at the same time.

Modular Design Unlimited Expansion

Modular Design

Unlimited expansion

Interchangeable Payloads Offer Expansion Capability

Payload Capacity 2lbs (900g)

Live Video Streaming

LiveDeck enables pilots to share live aerial video across public or private networks, sharing data with command posts, stakeholders, or online viewers.

Open SDK

Create customized services.

Maximum Performance, Endless Possibilities

• 38 Minute Flight Time
• 5.5 Mile Video Transmission Range
• Level 8 Wind Resistance
• 45mph Max Flight Speed
• Magnesium Alloy Structure
• GB4943 Certification

Includes:

EVO II Dual 640T Drone (including drone battery,propellers and gimbal mount)

1*Autel Smart Controller

3*Spare Aircraft Battery

1*Aircraft Battery Charger

1*Controller Charger

1*Controller Power Cable

1*Battery Charging Hub

1*Car Charger

1*Chest Strap

2*Spare Command Sticks

1*Controller Protective Case

1*Accessory Interface Cover

1*Spare Propellers

1*Carry Case

Technical Specifications

Aircraft

Takeoff weight 1150 g

Max takeoff weight 2000 g

Size(L*W*H) 508*634*111mm（with propellers）258*368*111mm（without propellers）

Wheelbase 397 mm

Aircraft Battery 7100 mAh

Max flight time  (no wind) 38 min

Max hovering time  (no wind) 33 min

Max horizontal flight speed 20 m/s (Ludicrous)

Max ascent speed 8 m/s (Ludicrous)

Max descent speed 4 m/s (Ludicrous)

Max flight distance (no wind) 25 km

Max angular velocity 120°/s

Maximum service ceiling altitude 7000 m

Maximum resistance to wind Level 8

Operating temperature range -10℃ ~ 40℃

Operating frequency non-Japan：2.400 GHz - 2.4835 GHz；5.725 - 5.850 GHz, Japan：2.400 GHz - 2.4835 GHz；5.650 - 5.755 GHz

Transmission power 2.4G, FCC/ ISED：≤27dBm, SRRC/CE/MIC/RCM：≤20dBm, 5.8G (non-Japan) ; 5.7G (non-Japan), FCC/ISED/SRRC/MIC：≤27dBm, CE/ RCM：≤14dBm

Hovering accuracy Vertical: ±0.02 m (when the visual positioning is working normally); ±0.2 m (when GPS positioning works normally) ; Horizontal: ±0.02 m (when the visual positioning is working normally); ±0.5 m (when GPS positioning works normally)

Note: Operating frequency varies by countries and regions, please refer to local laws and regulations.

Sensing system

Sensing system type Omnidirectional sensing system

Forward Accurate measurement range: 0.5-20 m, Detection range: 0.5-40 m, Effective sensing speed:<15m/s, Viewing angle: Horizontal: 60°, Vertical: 80°

Backward Accurate measuring range: 0.5-16 m, Detection range: 0.5-32 m, Effective sensing speed:<12m/s, Viewing angle: Horizontal: 60°, Vertical: 80

Upward Accurate measurement range: 0.5-12 m, Detection range: 0.5-24 m, Effective sensing speed:<6m/s, Viewing angle: horizontal: 65°, vertical: 50°

Downward Accurate measurement range: 0.5-11 m, Detection range: 0.5-22 m, Effective sensing speed:<6m/s, Viewing angle: horizontal: 100°, vertical: 80°

Left and right Accurate measurement range: 0.5-12 m, Detection range: 0.5-24 m, Effective sensing speed:<10m/s, Viewing angle: horizontal: 65°, vertical: 50°

Operating Environment Forward, Backward and Sides: Surface with clear pattern and adequate lighting (lux > 15) ; Upward: Detects diffuse reflective surfaces (>20%) (walls, trees, people, etc.) ; Downward: Surface with clear pattern and adequate lighting (lux > 15), Detects diffuse reflective surfaces (>20%) (walls, trees, people, etc.)

Thermal camera

Sensor Uncooled VOx Microbolometer

Lens FOV H33°V26°

Lens Focal length 13mm

Zoom 1-16x

Sensor resolution 640x512

Pixel size 12μm

Wavelength range 8 - 14μm

Temperature range High gain mode: -20° to +150°, Low gain mode: 0° to +550°

Temperature measurement accuracy ±3℃ or ±3% of reading (whichever is greater) @Environmental temperature-20℃~60℃

Accurate temperature measurement distance 2-20 meters

Video resolution 640x512@30fps

Video format MOV / MP4 (Support H.264/H.265)

Camera resolution Infrared mode: 640*512, Picture-in-picture mode: 1920*1080, 1280*720

Photo mode Single shot, Burst shooting: 3/5 frames, 3 is the default, Time Lapse:JPG: 2s/5s/7s/10s/20s/30s/60s, 5s is the default

Photo format TIFF+JPG (with irg file)

Visible light camera

Sensor 1/2 inch CMOS; 48M effective pixels

Lens FOV: 79°, 35 mm format equivalent focal length: 25.6 mm, Aperture: f/1.8, Focus range: 0.5 m to infinity (with auto focus)

Zoom 1-16x (up to 4x lossless zoom)

ISO range Video: 100-6400, Photos: 100-3200

Maximum photo size 8000x6000（4:3）7680x4320（16:9）4000*3000 (4:3) 3840*2160 (16:9)

Photo mode Single shot, Burst shooting: 3/5 frames, Auto Exposure Bracketing (AEB): 3/5 bracketed frames at 0.7 EV Bias, Time Lapse: JPG: 2s/5s/7s/10s/20s/30s/60s, DNG:5s/7s/10s/20s/30s/60s, HyperLight: support (under 4K JPEG format), Long exposure:Max. 8s, HDR imaging: support (under 4K JPEG format)

Image Format JPG (default); DNG

Video format MP4 / MOV format (MPEG-4 AVC/H.264, HEVC/H.265)

Video resolution 8K 7680*4320 p25/p24, 6K 5760*3240  p30/p25/p24, 4K 3840*2160 p60/p50/p48/p30/p25/p24, 2.7K 2720*1528 p120/p60/p50/p48/p30/p25/p24, 1080P 1920*1080   p120/p60/p50/p48/p30/p25/p24

Max bitrate 120Mbps

Gimbal

Mechanical range Tilt：-135° to +45°, Pan：-100° to +100°

Controllable rotation range Tilt：-90° to +30°, Pan：-90° to +90°

Gimbal Three-axis stabilization

Max control speed (Tilt) 300°/s

Angular Vibration Range（°）±0.005°

Remote controller and image transmission

Operating frequency non-Japan：2.400 GHz - 2.4835 GHz；5.725 - 5.850 GHz, Japan：2.400 GHz - 2.4835 GHz；5.650 - 5.755 GHz

Max Transmission Distance (unobstructed, free of interference) FCC：9 km, CE：5 km

Transmission power 2.4G, FCC/ ISED：≤27dBm, SRRC/CE/MIC/RCM：≤20dBm ; 5.8G (non-Japan) ; 5.7G (non-Japan), FCC/ISED/SRRC/MIC：≤27dBm, CE/ RCM：≤14dBm

Real-time image transmission quality 720p@30fps / 1080p@30fps

Maximum bit rate of real-time image transmission 40Mbps

Remote controller battery 5000mAh

Run time 3 hours

Charging time 2 hours fast charging

Display screen 3.26'' OLED, 854（W） * 480（H）Pixel, Directly preview the video without connecting a mobile phone

Working current/voltage [email protected]

Note: Operating frequency varies by countries and regions, please refer to local laws and regulations.

Intelligent Flight Battery

Capacity（mAh） 7100mAh

Voltage（V） 11.55V

Battery type LiPo 3S

Energy 82Wh

Weight(g) 365g

Charging temperature range（℃） 5℃ to 45℃

Storage temperature and humidity -10~30℃，65±20%RH

Recommended storage temperature 22~28℃

Max charging power（W）93W

Charging time 90 minutes

Intelligent Flight Battery Manager

Voltage 13.2 V

Charging temperature range 5℃ to  45℃

Charger

Input 100-240 V, 50/60 Hz, 1.5A

Output 13.2 V ⎓ 5 A, 5V⎓3A 9V⎓2A 12V⎓1.5A

Voltage 13.2 ± 0.1 V

Rated power 66 W

Storage

SD storage Standard：32 GB, max. support 256GB (UHS-3 rating required)

Internal storage 8GB
