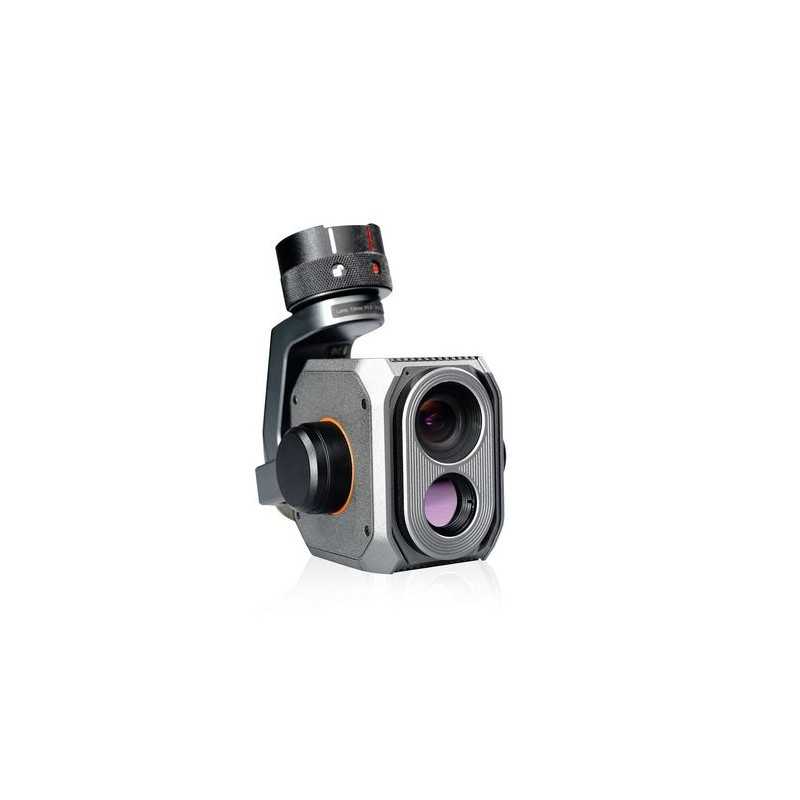

Yuneec ETX-Lite Thermal Imaging Camera (256x192/30Hz) for H520E/H850
2025 $ net price (non-EU countries)
100% secure payments
Viktoriia Turzhanska
Product Manager
/
+48723706700
+48723706700
+48723706700
[email protected]
Anatolii Livashevskyi
Product Manager /
+48721808900 +48721808900 +48721808900
[email protected]
Olesia Ushakova
Product Manager /
+48695005004 +48695005004 +48695005004
[email protected]
Michał Skrok
Product Manager
/
+48721807900 +48721807900
[email protected]
Description
THERMAL IMAGING SOLUTION FOR H520E & H850
The camera for the H520E & H850 comes in 256x192 resolution and with the ability to capture temperature data for quantitative assessment. The residual-light RGB camera has a 20x higher sensitivity than the human eye and captures high-quality imagery, even in very low-light conditions. It is small, lightweight and thanks to its high sensitivity; it is a reliable tool that clearly recognises target objects in detail.
Key Features:
- High sensitivity for clear and detailed target recognition.
- Detailed and precise temperature measurement for every pixel.
- Color palettes adjustable to task requirements.
- Adjustable Gain Modes to change the measured tempreature range.
- Post-flight accurate analysis with quantifiable data.
- Suitable for tasks related to Inspection (buildings, solar panels and powerlines), Search and Rescue, Firefighting and Law enforcement.
- Camera is compatible with H520E & H850
Parameters ETX-LITE
General
Gimbal mount Yuneec X connector
Stable system Three axes (YAW, Pitch, Roll)
Angular Vibration Range ±0.02°
Controllable Range -110°to 30°
±165°
Max Angular Velocity Pitch:30°/s，Yaw:120°/s
Dimensions 121*81*114mm
Weight 329g
Operating Temperature ﹣10 - 40℃
Waterproof -
Optical camera
Sensor 1/2.8" Effective Pixels:2MP
Lens DFOV 84° F2.8, 23mm format equivalent
Photo Resolutions 1920*1080
Video Resolutions 1920*1080p 30fps
Photo Formats JPEG
Video Formats MP4
Exposure Mode Program AE Mode, Manual Exposure Mode
Exposure Compensation ±2.0
Metering Mode Center-weighted
Electronic Shutter Speed 1/30-1/8000s
White Balance Auto, Incandescent, Sunrise,
Sunset, Sunny, Cloudy, Fluorescent
ISO Range 100-3200
Digital Zoom -
Infrared camera
Diagonal Fov 71.0°
Fov(H x V,±5%） 3.2mm：51.3°×39.6°
Sensitivity ≤[email protected]@25℃
Pixel Pitch 12μm
Infrared Wavelength Range 8-14μm
Frequency Full Frame Rate：30Hz
Photo Formats JPEG
Video Format MP4
Temperature Compensation Auto
Resolution 256x192
Temperature Measurement Range High Gain -20℃-150℃/Low Gain 100℃-550℃
Digital Zoom -
