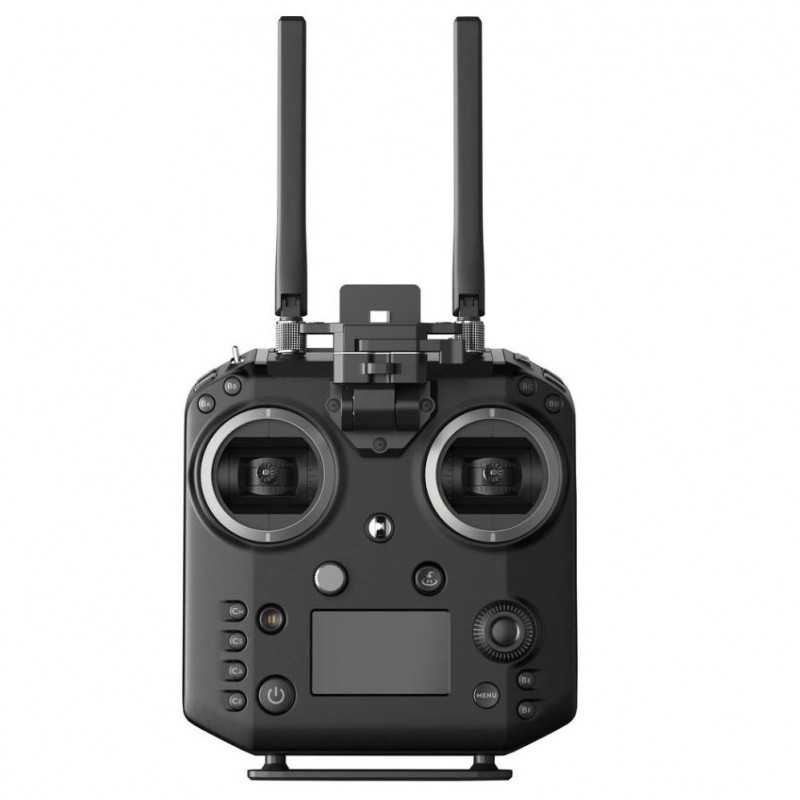

DJI Cendence S Remote Controller for Matrice 200 Series V2

NOTE: This version of the Cendence is specific to the DJI Matrice 200 V2 Series and is not currently compatible with any other aircraft at this time.

The DJI Cendence S Remote Controller for Matrice 200 Series V2 is used either as a second remote controller for dual remote operations with the Matrice 200 Series V2, or simply as a spare or replacement to your existing Cendence S that came with your M200 V2 system.

The DJI Cendence S is a professional remote controller that is typically used for commercial operations where users are looking to operate in dual operator mode with a master and slave remote controller. The customizable remote has been designed for full integration with DJI’s ecosystem of technology, and caters to the DJI CrystalSky Monitor as its primary companion for a video monitor mounted on the remote controller. The remote controller provides users with five analog control channels and over ten customizable buttons which help to cater to a user’s specific needs, operation, and enhance efficiency when inflight. In addition, the Cendence S features HDMI, SDI, USB and CAN ports which provide applications with robust output and expansion capabilities. Fully integrated is a mount for the DJI CrystalSky Monitor, no further mounting adapters or parts are needed to mount your CrystalSky to the Cendence S.

Features

Dials, Levers, and Knobs

The two knobs on the front panel control gimbal pitch and yaw, and the right/left levers and Focus Adjustment Knob are used to tune flight controller settings and the gimbal camera in real-time, allowing you to pull focus and set aperture.

Camera Settings

For quick camera adjustments, you can customize several shortcut buttons for particular groups of settings, or save frequently used settings.

Custom Control

Customizable buttons can quickly enable or disable frequently used functions like focus peaking, color waveform, obstacle avoidance, and home point resetting, or close warnings and tips midflight, all without using an app.

Button Combinations

Rotate the dials or the toggle the right/left levers while holding certain buttons to control gimbal roll, shutter speed, aperture, or ISO.

Detachable Design, CrystalSky Compatibility

The CrystalSky monitor mounts to the Cendence remote controller via the Cendence Monitor Mounting Bracket. The Cendence remote controller’s antennas, PCB, mounting bracket, and battery are all detachable, making its hardware easily upgradable, allowing you to customize the controller for compatibility with future DJI aircraft.

Dual Operator Control

When precision camera control is required, the Cendence remote controller can connect as either a master or slave controller with the Inspire 2’s remote controller or another Cendence remote controller.

Multiple Ports

SDI and HDMI ports support broadcasting at 1080i50 and 720p60.

Connect DJI Focus, or other compatible accessories via the CAN port.

The USBA port supports connectivity with other mobile devices.

Battery System

Cendence uses a detachable battery that operates for up to four hours. If you run out of power, just swap in a charged battery or charge Cendence via the power port. Cendence uses the same batteries as CrystalSky monitors, enhancing product synergy.

Multiple Accessories

Practical accessories make using Cendence easy. The Cendence Support Rig takes on part of the controller’s weight, making it easier to hold for long periods of time. Control Stick Covers prevent dust from entering both sticks, ensuring smooth and reliable control. The Interchangeable Mobile Device Holder lets you attach a phone or tablet instead of a CrystalSky monitor.

IN THE BOX

(1) Cendence S Remote Controller

(1) WB37 Intelligent Battery

(1) Cendence Monitor Mounting Bracket

(1) Cendence Remote Controller Support Rig

(1) Screwdriver

(2) Screw

(2) Cendence Control Stick Cover

(1) Cendence Control Stick Cover Mounting Key

(1) Remote Controller Strap

(1) Cendence Patch Antenna

DJI Cendence S Specs

Operating Frequency 2.4000-2.4835 GHz; 5.725-5.850 GHz

Max Transmitting Distance(unobstructed, free of interference) NCC/FCC: 5 mi (8 km); CE/MIC: 3.1 mi (5 km); SRRC: 3.1 mi (5 km)

EIRP 2.4 GHz: 26 dBm (NCC/FCC); 20 dBm (CE/MIC); 20 dBm (SRRC) / 5.8 GHz: 26 dBm (NCC/FCC); 14 dBm (CE); 26 dBm (SRRC)

Power Supply Extended Intelligent Battery (Model: WB37-4920mAh-7.6V)

Output Power (max) 13 W (Without supplying power to monitor)

USB Power Supply 1 A? 5.2 V (max)

Operating Temperature -4° to 122° F (-20° to 50° C)
