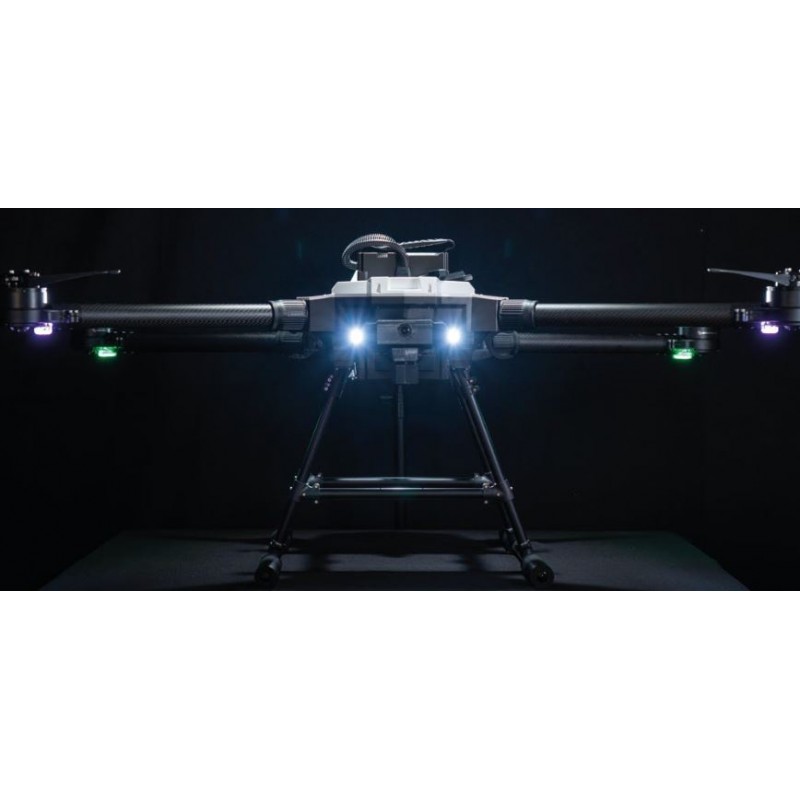

ABZ Innovation M12 Multifunctional Industrial Drone
10158.95 $ net price (non-EU countries)
100% secure payments
Viktoriia Turzhanska
Product Manager
/
+48723706700
+48723706700
+48723706700
[email protected]
Anatolii Livashevskyi
Product Manager /
+48721808900 +48721808900 +48721808900
[email protected]
Michał Skrok
Product Manager
/
+48721807900 +48721807900
[email protected]
Description
Meet ABZ Innovation’s multifunctional industrial drone
The ABZ Innovation M12 is a freely customizable device that can be adapted for virtually any purpose or need – thanks to its open-source software and modifiable attachments.
Efficiency
- 12 kg load capacity
- 24.9 kg max take-off weight
- CE certification
- Open-source software
- Customizable hardware
Reliability
Flight control:
- triple-redundant IMU
- RTK base included
Power transmission:
- 16000mAh battery
- FOC system
- IPX7 rated brushless motors
We paid special attention to battery sizing – to ensure uncompromised efficiency, reliability and maximum operating time for the M12 multifunctional industrial drone.
Repair service and after-sales support
- Hungary-based production
- Stable supply of spare parts
- Telephone support
- Hungary-based service center
- Mandatory maintenance after 300 hours
- Replacement service
Cost-effective operation
90% of running costs derive from battery depreciation. Therefore we have done our utmost to prolong battery life as much as possible.
Advanced flight planning
- Joint development with Széchenyi University of Győr
- On site: based on the position of drone with RTK accuracy
- In advance: SHP or KML based on survey of your choice
Portability:
- Foldable frame
- 3.2 kVA generator: 6-8 take-offs/hour
- 6.3 kVA generator: 12 take-offs/hour
The benefits of the M12
- Stability and security
- High efficiency
- Sustainable technology
- Cost-effective operation
- Open-source software
- Wide range of applications
- CE Certification
- Unique dispersion system
- Easy to use
- Easy transport and portability
- Continuous operation
- Continuous service and support
Included in the set:
- ABZ Innovation M12 Multifunctional industrial drone
- Herelink Controller
Optional:
Battery and charger
- Tattu Plus 1.0 16000 mAh battery with 12 cells for ABZ Innovation L10 series and M12
- PC3000H LiPo/LiHV Four-Channel Battery Charger
Agricultural loads
- Trichogramma SkyInnov spreading system with full integration
Full technical specifications:
General specifications
Total weight (W/A batteries) 11.0 kg
Max. take-of weight 24.9 kg/29 kg depending on category
Dimensions 1460 x 1020 x 610 [mm]
Max. hovering time 26 min (18 kg) 12,5min (29 kg)
GPS GPS, GLONASS, Galileo
Hovering precision ±10 cm (RTK) ±2 m (bez RTK)
Rotor dimensions 30 x 9
Motor dimensions 81 x 20 mm
Motor KV value 100 KV
Battery capacity 16000 mAh
Battery voltage 44,4V
Battery weight 4,7 kg
Execution of work
Technology developed for European Agricultural conditions ✔
IP protection IP54
Easy transportability ✔
Modular payload attachability ✔
Obstacle avoidance RTK-based
FPV camera Front - rear
Battery charging time ~11 min
Effective signal range of RC ~8 km
Altitude measurement LiDAR
Flight planning
Software source code Open
Flight plan creation on a pc ✔
Handling of SHP and KML files SHP i KML
Software compatibility ✔
Downward facing camera for obstacle selection ✔
RTK base in the package ✔
Data security ✔
No data transmission to remote servers ✔
Flight
Max. pitch anglec 30°
Max. operating flight speed 7 m/s
Max. level speed 24 m/s
Max. flight altitude 120 m
Max. tolerable wind speed 10 m/s
Data sheet
