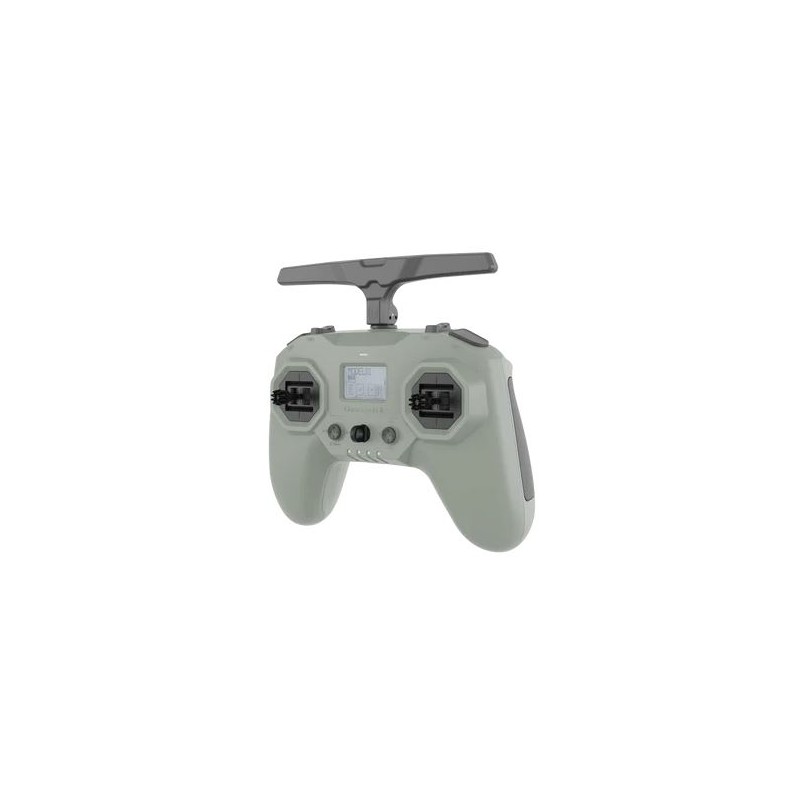

iFlight Commando 8 Radio Transmitter

Highlights

• Internal iFlight ExpressLRS (ELRS) transmitter (additional fan for cooling)
• Market's lowest crystal frequency deviation (low packet loss, high frequency stability)
• Highest quality digital hall sensor gimbals for maximum precision
• High-performance PCB Single and Dual Band (900/2400MHz) radio antennas
• Inbuilt 4000mAh for up to 20h power (2x 2000mAh 18650 batteries)
• Stock EdgeTX firmware with pre-installed Lua scripts
• Several Gimbal Stick Ends available (stock 18mm)

Packing List

1 x Commando8 (Please select your option)

2 x 18650 Li-Ion batteries included (pre-installed)

Radio Details

Band Options:

The 900MHz as well as 2400MHz band have outstanding performance and long range capabilities.

What can I expect? Due to local regulations, the 915MHz FCC region seems to have a better performance than the 868MHz EU region. The 2400MHz band works great in any region, has a higher packet rate up to 500hz. This is not a common 2400MHz protocol and cannot be compared to anything prior on the market.

ELRS Only Option (Single TX):

Single ELRS option includes 1x ELRS TX module (please select band) pre-installed in the back of the radio Cooling fan is inside the flat back cover Single Band or Dual Band antenna option (for future upgrades or module changes) Dual Band antenna option for convenient multi band use without changing the antenna.

Antenna Options:

Dual-Band (868/915MHz+2.4GHz)

Single-Band (2.4GHz)

Single-Band (868/915MHz)

Button Functionality:

2x 5-axis menu buttons for full OpenTX or EdgeTX control

2x 2-position switches (can be used for arming; not momentary)

2x 3-position switches

RF Power:

2.4GHz system: SX1280

868/915MHz system: SX1276

ExpressLRS 2.4GHz // Max Output 500mW

ExpressLRS 868/915MHz // Max Output 1000mW

Radio Channels: 8

Input: Mini High Precision Digital Hall Gimbals with NMB bearings

Gimbal Stick Ends: Stock length 18mm

Charging: Type-C 20W Quick Charge

Battery: Built-in 4000mAh 1S2P 18650 Battery

Charging Connector: Type-C

Weight: 310g
