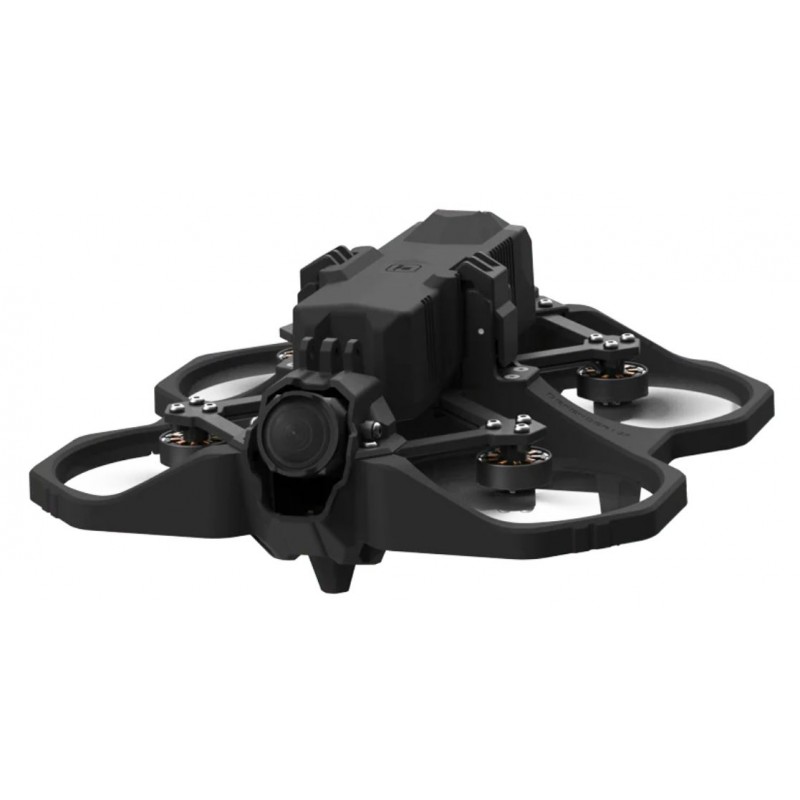

iFlight Defender25 O3 Bundle with controller and DJI FPV Goggles 2

Ultralight & Free to Fly

At sub 249g weight, our Defender25 doesn't require registration in most countries. The compact and lightweight design also makes it easy to carry and store. It will be your best travel buddy to redefine your FPV adventure.

Small But Mighty

The built-in 2.5inch propeller guards were designed to fly bold. You’ll experience a complete new creative freedom to fly whenever and wherever. The durable injection molded frame does not only prevent damage to your motors or propellers, but also protects the environment of small flight errors.

4K Stabilized Video with 155°Ultra-Wide Angle

Equipped with the latest tech from DJI, the O3 Air Unit HD transmission system. The Defender25 supports 4K video and shoots up to 155°super-wide FOV footage for stunning visuals. In addition, D-Cinelike color mode provides more creative freedom for color grading, allowing you to edit and adjust your footage. (Source DJI)

We’ve also added a special vibration-damped camera mount to keep your raw footage as smooth as possible, as well as ensure good Gyro Data for the in-built or in-post camera stabilization.

Crash Protected Quick-Release Battery

New innovative quick-release battery and charging adapter to make everything as easy as it can be. The Defender25 comes with a stock 4S 550mAh. An Endurance 900mAh battery is optional.

Inbuilt high-performance Video and Receiver antennas

Optimized Landing Gear for Take-off in Complex Environment

Countless easy-to-use features let you get started right away:

1) Turtle Mode pre-setup

2) Secured XT30 Battery Plug with Anti-Spark Filter

3) Motors with direction arrows

4) Props with positioning column for easy installation

5) All ports and buttons are easy to access

6) Mini camera mount (Naked GoPro, Insta360, etc.)

Packing List

1 x Defender25 O3 HD BNF

1 x Defender25 550mAh Battery

1 x Charging Adapter Board

2 x Defender 2525 Props (pairs)

Specifications

Product Name: Defender25 O3 4S HD

Flight Electronics: BLITZ D25 F7 AIO

Video Transmission: DJI O3 Air Unit

Frame: 112±2mm

Motor: Defender25 1404

Prop: Defender25 2525 props (2.5 inch)

Weight of the Aircraft: 180g

Takeoff Weight incl. 550mAh battery: ≤249g

Takeoff Weight incl. 900mAh battery: ≤280g

Dimensions (L×W×H)：158x155x69mm

Max Ascent Speed: 6 m/s (Normal Mode, Sport Mode)

Max Descent Speed: 6 m/s (Normal Mode, Sport Mode)

Max Speed: 100Km/H (Manual Mode)

Maximum Takeoff Altitude: 200 m

Max Hover Time: Approx. 6 mins(with 550mAh battery), 10mins(with 900mAh battery)

Max Flight Distance: 2-3 km

Max Wind Speed Resistance: 80 Km/H (Level 5)

Operating Temperature Range: -10° to 40° C (14° to 104° F)

Transmission Power (EIRP): FCC: < 33 dBm / CE: < 14 dBm / SRRC: < 30 dBm

Antennas: Dual Antennas

GNSS: N/A

Video Transmission

Product Name: DJI O3 Air Unit

Weight: Approx. 290 grams（headband included）

Dimensions (L×W×H): L167 * W1039 * H 813mm

Screen Size (single screen): 0.49-inch

Resolution (single screen): 1920×1080

Refresh Rate: Up to 100 Hz

Interpupillary Distance Range: 56-72 mm

Diopter Adjustment Range: -8.0 D to +2.0 D

FOV (single screen): 51°

Communication Frequency: 2.400-2.4835 GHz；5.725-5.850 GHz

Transmission Power (EIRP):

2.4 GHz: < 30 dBm (FCC), < 20 dBm (CE/SRRC/KC)

5.8 GHz [4]: < 30 dBm (FCC), < 23 dBm (SRRC), < 14 dBm (CE/KC)

Max Video Transmission Bitrate : 50 Mbps

Operating Temperature Range: 0° to 40° C (32° to 104° F)

Power Input: 7-9 V (1.5 A)

iFlight Commando 8 Radio Transmitter

• Internal iFlight ExpressLRS (ELRS) transmitter (additional fan for cooling)
• Market's lowest crystal frequency deviation (low packet loss, high frequency stability)
• Highest quality digital hall sensor gimbals for maximum precision
• High-performance PCB Single and Dual Band (900/2400MHz) radio antennas
• Inbuilt 4000mAh for up to 20h power (2x 2000mAh 18650 batteries)
• Stock EdgeTX firmware with pre-installed Lua scripts
• Several Gimbal Stick Ends available (stock 18mm)

Packing List

1 x Commando8 (Please select your option)

2 x 18650 Li-Ion batteries included (pre-installed)

Radio Details

Band Options:

The 900MHz as well as 2400MHz band have outstanding performance and long range capabilities.

What can I expect? Due to local regulations, the 915MHz FCC region seems to have a better performance than the 868MHz EU region. The 2400MHz band works great in any region, has a higher packet rate up to 500hz. This is not a common 2400MHz protocol and cannot be compared to anything prior on the market.

ELRS Only Option (Single TX):

Single ELRS option includes 1x ELRS TX module (please select band) pre-installed in the back of the radio Cooling fan is inside the flat back cover Single Band or Dual Band antenna option (for future upgrades or module changes) Dual Band antenna option for convenient multi band use without changing the antenna.

Antenna Options:

Dual-Band (868/915MHz+2.4GHz)

Single-Band (2.4GHz)

Single-Band (868/915MHz)

Button Functionality:

2x 5-axis menu buttons for full OpenTX or EdgeTX control

2x 2-position switches (can be used for arming; not momentary)

2x 3-position switches

RF Power:

2.4GHz system: SX1280

868/915MHz system: SX1276

ExpressLRS 2.4GHz // Max Output 500mW

ExpressLRS 868/915MHz // Max Output 1000mW

Radio Channels: 8

Input: Mini High Precision Digital Hall Gimbals with NMB bearings

Gimbal Stick Ends: Stock length 18mm

Charging: Type-C 20W Quick Charge

Battery: Built-in 4000mAh 1S2P 18650 Battery

Charging Connector: Type-C

Weight: 310g

DJI Goggles 2

Experience the thrill of flight with DJI Goggles 2. Dual-HD Micro-OLED screens immerse your senses in the sky. React in real-time as you navigate the skies with a 100Hz max frame rate. The ultra-low-latency DJI O3+ video transmission ensures a clear and reliable live-feed as you explore. DJI Goggles 2 is convenient to carry, comfortable to wear, and intuitive to pilot with the DJI Motion Controller. Soak in the atmosphere and unlock a new way to capture aerial shots. With DJI Goggles 2, the dream of flight becomes a reality.

Lightweight and Light-Tight

• Weight Approx. 290 g
• Antenna Design Foldable
• Battery Life Two hours - Charge fast and fly high with a long-lasting battery.

An ultra-lightweight and breathable design makes DJI Goggles 2 enjoyable to wear for long flights without uncomfortable pressure.

Soft replaceable foam padding ergonomically fits the face to reduce light leakage.

Immerse the Senses

• Display Technology Micro-OLED
• Screen Resolution 1080p
• Max Brightness 700 nits
• Max Frame Rate 100 Hz
• Transmission CODEC Format H.264 and H.265

Crisp, smooth video playback, and stunning true-to-life colors, DJI Goggles 2 presents a visual experience unlike any other. An independent video processing chip optimizes video smoothness and resolution, and a 10-bit color display unveils rich details in highlights and shadows.

A new optical design allows DJI Goggles 2 to be smaller and lighter. The new system, comprised of multiple glass aspherical elements, provides a clean and clear image at any setting. Adjust the diopters from +2.0 to -8.0 to personalize the viewing experience and easily go glasses-free. By locking the diopter adjustment knob, you can fix the diopter and effectively prevent accidental touches during use or storage.

With TÜV Rheinland Low Blue Light Certification,

DJI Goggles 2 presents enhanced display quality while protecting your eyes during every breathtaking flight.

Ultra-Low Latency. Smooth and Reliable Video Transmission

• Lowest Video Transmission Latency 30 ms
• Auto Frequency Band Selection 2.4-5.8 GHz

Stable video transmission is essential when flying in the great outdoors. With latency as low as 30 ms, DJI Goggles 2 provides a stunning flight in real-time. The goggles automatically switch between 2.4GHz and 5.8GHz frequency bands to keep a stable signal for a fluid viewing experience with minimal interference.

New SyncSmooth technology produces smooth, fluent video transmission for high-speed aerial photography. [10] Viewing footage with DJI Goggles 2 is also easier on the eyes, effectively reducing visual fatigue and dizziness.

DJI Goggles 2's display and aircraft video transmission algorithms are optimized to reduce dropped frames and have improved image capture and display synchronization.

More Ways to Experience

Bad weather? DJI Goggles 2 transforms into an in-home theater. Wi-Fi wireless streaming supports mainstream audio and video software using DLNA protocol, allowing videos to play straight to the goggles. A built-in power amplifier and a 3.5mm audio port allow synchronized audio output for an immersive cinematic experience.

Beyond Fly

DJI Fly App

Connect DJI Goggles 2 with a smartphone to share the flying experience or teach pilots in training.

Specs DJI Goggles 2

Model RCDS18

Weight Approx. 290 g (headband included)

Dimensions (L×W×H) With antennas folded: 167.40×103.90×81.31 mm, With antennas unfolded: 196.69×103.90×104.61 mm

Screen Size (single screen) 0.49-inch

Resolution (single screen) 1920×1080

Refresh Rate Up to 100 Hz

Interpupillary Distance Range 56-72 mm

Diopter Adjustment Range -8.0 D to +2.0 D

FOV (single screen) 51°

Communication Frequency 2.400-2.4835 GHz, 5.725-5.850 GHz

Transmission Power (EIRP) 2.4 GHz: < 30 dBm (FCC), < 20 dBm (CE/SRRC/MIC/KC), 5.8 GHz: < 30 dBm (FCC), < 23 dBm (SRRC), < 14 dBm (CE/KC)

Video Recording Format MOV

Supported Video and Audio Playback Formats MP4, MOV (video coding formats: H.264, H.265; audio formats: ACC, PCM)

Wi-Fi Wireless Streaming Supports DLNA protocol

Operating Temperature -10° to 40° C (14° to 104° F)

Power Input DJI Goggles 2 Battery

Supported SD Cards microSD (up to 256 GB)

Wi-Fi

Protocol Wi-Fi 802.11b/a/g/n/ac

Communication Frequency 2.400-2.4835 GHz, 5.150-5.250 GHz (indoor use only), 5.725-5.850 GHz

Transmission Power (EIRP) 2.4 GHz: < 20 dBm (FCC/CE/SRRC/MIC/KC), 5.1 GHz: < 20 dBm (FCC/CE/MIC/KC), 5.8 GHz: < 20 dBm (FCC/SRRC/KC), < 14 dBm (CE)

Bluetooth

Protocol Bluetooth 5.2

Communication Frequency 2.400-2.4835 GHz

Transmission Power (EIRP) < 8 dBm

Video Transmission

Video Transmission Latency 1080p/100fps Video Transmission Quality: The latency is as low as 30 ms., 1080p/60fps Video Transmission Quality: The latency is as low as 40 ms.

Max Video Transmission Bitrate 50 Mbps

Video Transmission Range  When used with DJI Avata or DJI O3 Air Unit, DJI Goggles 2 can achieve the following max video transmission range: 10 km (FCC), 2 km (CE), 6 km (SRRC)

DJI Goggles 2 Battery

Capacity 1800 mAh

Voltage 7-9 V (1.5 A)

Type Li-ion

Chemical System LiNiMnCoO2

Energy 18 Wh

Charging Temperature 0° to 45° C (32° to 113° F)

Max Charging Power 12.6 W (5 V/2 A, 9 V/1.4 A)

Operating Time Approx. 2 hours

Weight Approx. 122 g

Dimensions (L×W×H) 73.04×40.96×26 mm

DJI Motion Controller

Weight Approx. 167 g

Communication Frequency 2.400-2.4835 GHz, 5.725-5.850 GHz

Transmission Power (EIRP) 2.4 GHz: ≤ 28.5 dBm (FCC), ≤ 20 dBm (CE/SRRC/MIC), 5.8 GHz: ≤ 31.5 dBm (FCC), ≤ 19 dBm (SRRC), ≤ 14 dBm (CE)

Operating Temperature -10° to 40° C (14° to 104° F)
