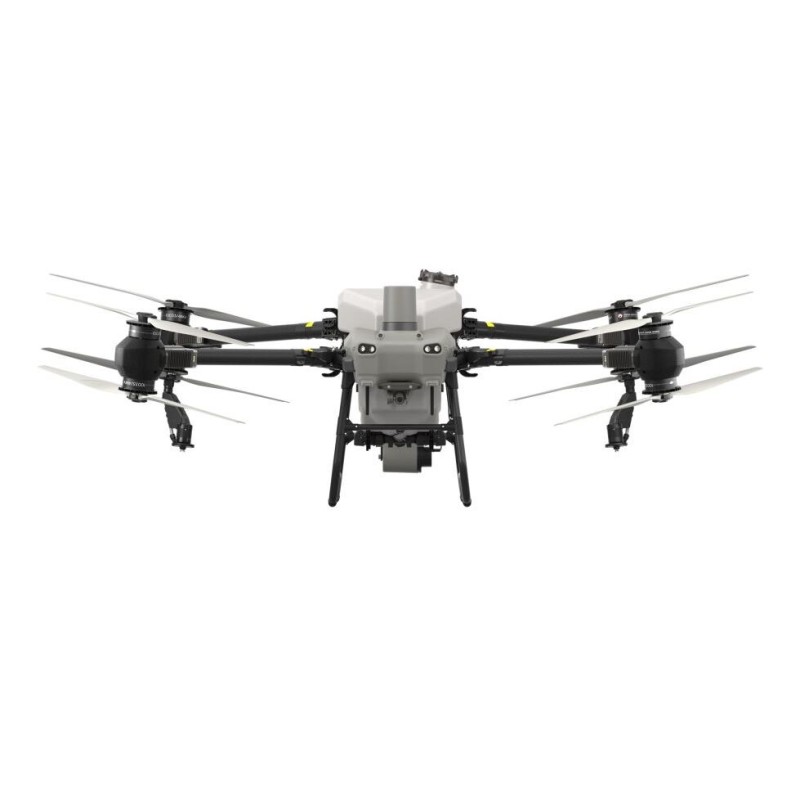

DJI Agras T50 Agriculture Drone

The DJI AGRAS T50 sets a new standard in drone-assisted agriculture. It features a robust coaxial twin-rotor propulsion system and a split-type, torque-resistant frame, ensuring exceptional stability while handling payloads of up to 40 kg for spraying or 50 kg for spreading.

The AGRAS T50 incorporates advanced technology including a Dual Atomizing Spraying System, Front and Rear Phased Array Radars, and a Binocular Vision System. These enhancements provide outstanding performance across various agricultural tasks such as surveying, spraying, and spreading, ensuring reliable and steady operation.

Key Features:

Heavy Payload Capacity:

• Spraying: Up to 40 kg
• Spreading: Up to 50 kg

High Flow Rate:

• Spraying: 16 L/min
• Spreading: 108 kg/min

Signal Stability:

• Offline Operations: Reliable performance without cellular coverage
• Transmission Range: 2 km with O3 Transmission
• Optional DJI Relay: For enhanced signal quality in challenging environments

Versatile Operations:

• Automatic & Manual Modes: Flexible control options
• Orchard Mode: Optimized for orchard environments
• Variable Rate Application: Tailored to specific needs

Obstacle Detection and Avoidance:

• Multidirectional Sensing: Advanced obstacle detection and avoidance
• Terrain Following: Capable of handling slopes up to 50°

Sprinkler System:

• Four-Sprinkler Kit (Optional): Includes Reverse Directional Spray, 24 L/min flow rate for high-volume applications

Operational Efficiency:

• Field Coverage: 21 hectares per hour
• Orchard Coverage: 4 hectares per hour
• Spreading Efficiency: 1,500 kg of granules per hour

Advanced Spraying Technology:

• Dual Atomizing Spraying System: Achieves a high flow rate of 16 L/min with consistent, leak-free performance. Optional centrifugal sprinklers boost the flow rate to 24 L/min.
• Magnetic Drive Impeller Pump: Increased flow rate up to 24 L/min for demanding environments.
• Dual Atomizing Centrifugal Sprinklers: Adjustable droplet size from 50-500 μm for precision.
• Brand-New Solenoid Valves: Ensures leak-free operation.

Spreading System:

• Enhanced Efficiency: New spreader and spiral channel spinning disk improve distribution and smoothness.
• Capacity: 75 L maximum with an expanded loading gate for quick refills.
• Uniform Spreading: Improved by the spiral channel spinning disk.
• Real-Time Weighing: Monitors payload levels for optimal use.

Durability and Reliability:

• Rigorous Testing: Proven for reliability and safety in demanding environments.

Safety and Navigation:

• Binocular Vision & Dual Radar: Advanced sensors and radars provide precise obstacle detection and terrain mapping for safe navigation.

Integrated Functionality:

• Multi-Use Drone: Combines surveying, spraying, and spreading capabilities.
• High-Resolution FPV Camera: Captures detailed field and orchard images for precise mapping and planning.
• DJI RC Plus & RTK Service: Facilitates accurate, automatic flight route generation.

Surveying Capabilities:

• Orchard Survey: Supports terrain following and obstacle detection for accurate 3D flight routes.
• Field Survey: Efficient mapping and route planning for various field sizes and conditions.

High-Performance Remote Control:

• DJI RC Plus: Features a 7-inch high-brightness screen and an 8-core processor for smooth operation and intelligent route planning.

Smart Agriculture Integration:

• Ecosystem Compatibility: Pair with Mavic 3M for multispectral data to optimize inputs and maximize yields. Use prescription maps for variable rate application and field patrols.

The DJI AGRAS T50 is engineered to enhance agricultural efficiency with advanced features and reliable performance for all your drone farming needs.

IN THE BOX

• 1x Aircraft
• 1x Air-Cooled Heat Sink
• 1x Tool Box
• Manuals

Tool Box includes:

• 1x Remote Controller
• 1x Remote Controller Strap
• 1x USB-C Cable
• Screws and Other Accessories (Sealing Rings, Single-Layer Centrifugal Disk, Propeller Washers, Phillips Screws, M5×10 Screws, Hose Nuts)
• Tools (Double-Ended Wrench, 2.5 mm Hex Key, 3.0 mm Hex Key, 4.0 mm Hex Key)

Specifications

Aircraft:

Weight: 39.9 kg (without battery), 52 kg (with battery)

Max Takeoff Weight:

Spraying: Up to 92 kg (at sea level)

Spreading: Up to 103 kg (at sea level)

Max Diagonal Wheelbase: 2200 mm

Dimensions:

Arms and Propellers Unfolded: 2800×3085×820 mm

Arms Unfolded, Propellers Folded: 1590×1900×820 mm

Arms and Propellers Folded: 1115×750×900 mm

Hovering Accuracy Range (with strong GNSS signal):

RTK Enabled: Horizontal ±10 cm, Vertical ±10 cm

RTK Disabled: Horizontal ±60 cm, Vertical ±30 cm

Radar Module Enabled: ±10 cm

RTK/GNSS Operating Frequency:

RTK: GPS L1/L2, GLONASS F1/F2, BeiDou B1I/B2I/B3I, Galileo E1/E5b, QZSS L1/L2

GNSS: GPS L1, GLONASS F1, BeiDou B1I, Galileo E1, QZSS L1

Max Configurable Flight Radius: 2000 m

Max Wind Resistance: 6 m/s

Propulsion System - Motors:

Stator Size: 100×33 mm

KV: 48 rpm/V

Power: 4000 W per rotor

Propulsion System - Propellers:

Material: Nylon carbon fiber filament

Dimension: 54 in (1371.6 mm)

Propeller Rotation Diameter: 1375 mm

Quantity: 8

Dual Atomizing Spraying System - Spray Tank

Material: Plastic (HDPE)

Volume: 40 L

Operating Payload: 40 kg

Quantity: 1

Dual Atomizing Spraying System - Sprinklers

Model: LX8060SZ

Quantity: 2

Nozzle Distance: 1570 mm (Rear Nozzles)

Droplet Size: 50-500 μm

Effective Spray Width: 4-11 m (at 3 m above crops)

Dual Atomizing Spraying System - Delivery Pumps

Type: Impeller pump (magnetic drive)

Quantity: 2

Single Pump Flow Rate: 0-12 L/min

Max Flow Rate:

16 L/min (with 2 sprinklers)

24 L/min (with 4 sprinklers)

Phased Array Radar System:

Model:

Forward Radar: RD241608RF

Rear Radar: RD241608RB

Terrain Following: Max slope of 50°; Altitude detection range: 1-50 m; Stabilization range: 1.5-30 m

Obstacle Avoidance:

Sensing Range: 1-50 m (multidirectional)

Field of View (FOV):

Forward Radar: Horizontal 360°, Vertical ±45°, Upward ±45° (cone)

Rear Radar: Vertical 360°, Horizontal ±45°

Working Conditions: Requires flying above 1.5 m over obstacles, with a horizontal speed ≤10 m/s and vertical speed ≤3 m/s

Safety Limit Distance: 2.5 m (distance between the propeller front and the obstacle after braking)

Sensing Direction: 360° multidirectional

Binocular Vision System:

Measurement Range: 0.5-29 m

Effective Sensing Speed: ≤10 m/s

Field of View (FOV): Horizontal 90°, Vertical 106°

Operating Environment: Requires adequate light and discernible surroundings

Remote Controller:

Model: RM700B

Operating Frequency:

2.4000-2.4835 GHz

5.725-5.850 GHz

Max Transmission Distance:

7 km (FCC)

5 km (SRRC)

4 km (MIC/CE)

(Conditions: unobstructed, interference-free, at 2.5 m altitude)

Wi-Fi Protocol: Wi-Fi 6

Wi-Fi Operating Frequency:

2.4000-2.4835 GHz

5.150-5.250 GHz

5.725-5.850 GHz

Bluetooth Protocol: Bluetooth 5.1

Bluetooth Operating Frequency: 2.4000-2.4835 GHz

GNSS: GPS+Galileo+BeiDou

Screen: 7.02-inch LCD touchscreen, 1920×1200 pixels, 1200 cd/m² brightness

Operating Temperature: -20° to 50°C (-4° to 122°F)

Storage Temperature:

<1 month: -30° to 45°C (-22° to 113°F)

1-3 months: -30° to 35°C (-22° to 95°F)

6 months to 1 year: -30° to 30°C (-22° to 86°F)

Charging Temperature: 5° to 40°C (41° to 104°F)

Internal Battery Runtime: 3 hours 18 minutes

External Battery Runtime: 2 hours 42 minutes

Charging Type: Recommended use of a certified USB-C charger, max 65 W and 20 V, such as the DJI 65W Portable Charger

Charging Time: 2 hours for internal or combined batteries (with standard DJI charger)
