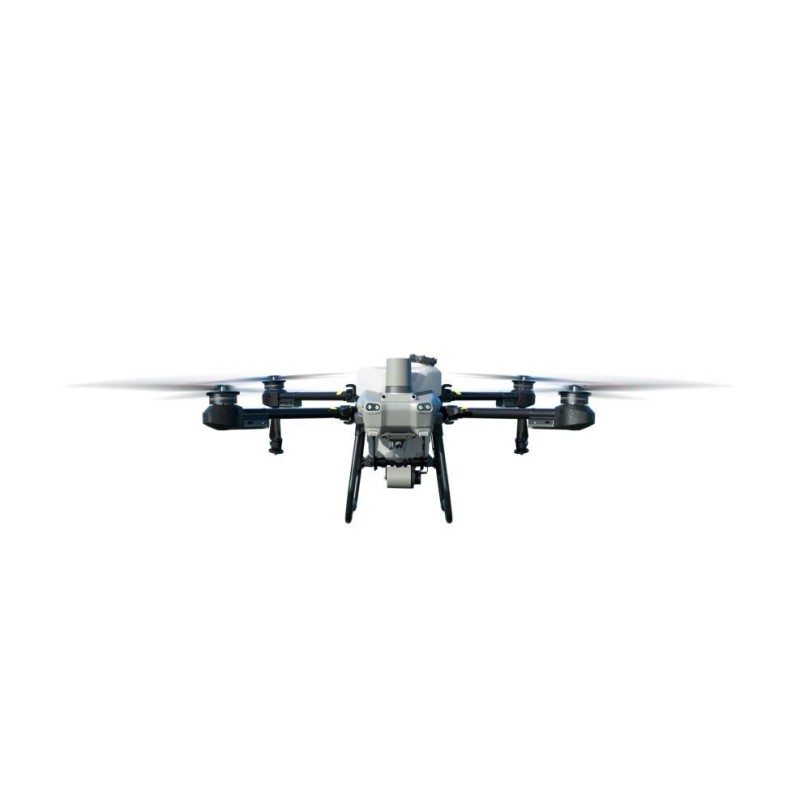

DJI Agras T25 Agriculture Drone

The DJI AGRAS T25 sets a new benchmark for compact agricultural drones. Lightweight and agile, the T25 is designed for easy solo operation, allowing for straightforward handling, takeoff, and landing. It supports a payload capacity of up to 20 kg for spraying and 25 kg for spreading. With advanced features including Front and Rear Phased Array Radars, a Binocular Vision System, and a high-resolution FPV gimbal camera, the T25 excels in various tasks across diverse terrains.

Lightweight and Agile

• Foldable Design: Optimized for solo operation with a 21% reduction in unfolded dimensions compared to its predecessor.
• Compact Size: Facilitates easy transport, takeoff, and landing.

Versatile Payload Capabilities

• Spraying: 20 kg tank with a 16 L/min flow rate.
• Spreading: 25 kg tank with a 72 kg/min flow rate.

Enhanced Signal Stability

• Offline Operations: Reliable even without cellular coverage.
• Transmission Range: 2 km with O3 Transmission.
• Optional DJI Relay: This module ensures seamless real-time video transmission, providing a stable connection even in areas with signal obstructions. It can be paired easily with the drone and supports long hours of operation through its PD protocol power bank. (Note: The DJI Relay is sold separately and requires a standard tripod connector for mounting, which is not included in the package.)

All-Scenario Adaptability

• Operation Modes: Fully automatic and manual with Orchard Mode and Variable Rate Application.

Advanced Sensing and Avoidance

• Multidirectional Obstacle Sensing: Enhanced with Front and Rear Active Phased Array Radars.
• Terrain Following: Effective up to 50° slopes.

Optional Four-Sprinkler Kit

• Increased Efficiency: The optional 4-sprinkler kit boosts the flow rate to 24 L/min, enhancing spraying coverage and efficiency. It also includes Reverse Directional Spray functionality, simplifying manual operations without requiring turns. (Note: The four-sprinkler kit is available separately and can be added based on operational needs.)

Efficient Spreading and Spraying

• Spraying System: Dual Atomizing Spraying System with a high flow rate of up to 16 L/min (24 L/min with additional sprinklers). Ensures uniform coverage and leak-free operation.
• Spreading System: New spreader and spiral channel spinning disk for improved efficiency and smoothness.

Reliable and Safe

• Durability: Tested extensively to ensure reliability and safety in demanding environments.
• Advanced Safety Features: Binocular Vision and Dual Radar enhance obstacle detection and terrain following.

Integrated Surveying, Spraying, and Spreading

• Versatile Operations: Combines aerial surveying, spraying, and spreading in one drone.
• High-Resolution Imaging: Real-time field and orchard images with DJI RC Plus and RTK service for precise mapping and automated flight routes.

Remote Controller

• Large High-Brightness Screen: 7-inch display with an 8-core processor for smooth operation and detailed views.
• Efficient Route Planning: Reduces unnecessary flights and improves operational efficiency.

Signal Stability

• Upgraded O3 Transmission System: Ensures robust signal quality over tall crops and in areas without cellular coverage.

Upgrade your agricultural drone capabilities with the DJI AGRAS T25, the compact and versatile solution for efficient farming operations.

In the Box

• 1x Aircraft
• 1x Tool Box
• Manuals

The tool box includes:

• 1x Remote Controller
• 1x Remote Controller Strap
• 1x USB-C Cable
• Screws and Other Accessories (Sealing Rings, Single-Layer Centrifugal Disk, Propeller Washers, Phillips Screws, M5×10 Screws, Hose Nuts)
• Tools (Double-Ended Wrench, 2.5 mm Hex Key, 3.0 mm Hex Key, 4.0 mm Hex Key)

Specifications

Aircraft:

Weight: 25.4 kg (excluding battery), 32 kg (including battery)

Max Takeoff Weight:

Spraying: 52 kg (at sea level)

Spreading: 58 kg (at sea level)

Max Diagonal Wheelbase: 1925 mm

Dimensions:

Unfolded: 2585×2675×780 mm (arms and propellers)

Arms Unfolded, Propellers Folded: 1475×1540×780 mm

Fully Folded: 1050×690×820 mm

Hovering Accuracy (with strong GNSS signal):

RTK Enabled: Horizontal ±10 cm, Vertical ±10 cm

RTK Disabled: Horizontal ±60 cm, Vertical ±30 cm (radar module enabled: ±10 cm)

RTK/GNSS Operating Frequency:

RTK: GPS L1/L2, GLONASS F1/F2, BeiDou B1I/B2I/B3I, Galileo E1/E5b, QZSS L1/L2

GNSS: GPS L1, GLONASS F1, BeiDou B1I, Galileo E1, QZSS L1

Max Configurable Flight Radius: 2000 m

Max Wind Resistance: 6 m/s

Propulsion System - Motors:

Stator Size: 100×28 mm

KV: 59 rpm/V

Power: 4600 W per rotor

Propulsion System - Propellers:

Material: Nylon carbon fiber filament

Dimension: 50 inches

Propeller Rotation Diameter: 1270 mm

Quantity: 4

Dual Atomizing Spraying System - Spray Tank

Material: Plastic (HDPE)

Volume: 20 L

Operating Payload: 20 kg

Quantity: 1

Dual Atomizing Spraying System - Sprinklers

Model: LX8060SZ

Quantity: 2

Nozzle Distance: 1368 mm (Rear Nozzles)

Droplet Size: 50-500 μm

Effective Spray Width: 4-7 m (at a height of 3 m above the crops)

Dual Atomizing Spraying System - Delivery Pumps

Type: Impeller pump (magnetic drive)

Quantity: 2

Single Pump Flow Rate: 0-12 L/min

Max Flow Rate: 16 L/min (with 2 sprinklers), 24 L/min (with 4 sprinklers)

Phased Array Radar System:

Model:

Forward Phased Array Radar: RD241608RF

Rear Phased Array Radar: RD241608RB

Terrain Following:

Max Slope: 50° (mapping-free operation)

Altitude Detection Range: 1-50 m

Stabilization Working Range: 1.5-30 m

Obstacle Avoidance:

Sensing Range: 1-50 m (multidirectional)

Field of View:

Forward Radar: Horizontal 360°, Vertical ±45°, Upward ±45° (cone)

Rear Radar: Vertical 360°, Horizontal ±45°

Working Conditions: Flying above obstacles at least 1.5 m with horizontal speed ≤10 m/s and vertical speed ≤3 m/s

Safety Limit Distance: 2.5 m (distance between front of propellers and obstacle after braking)

Sensing Direction: 360° multidirectional

Binocular Vision System:

Measurement Range: 0.5-29 m

Effective Sensing Speed: ≤10 m/s

Field of View: Horizontal 90°, Vertical 106°

Operating Environment: Adequate light and discernible surroundings

Remote Controller:

Model: RM700B

Operating Frequency: 2.4000-2.4835 GHz, 5.725-5.850 GHz

Max Transmission Distance:

7 km (FCC)

5 km (SRRC)

4 km (MIC/CE)

Wi-Fi Protocol: Wi-Fi 6

Wi-Fi Operating Frequency: 2.4000-2.4835 GHz, 5.150-5.250 GHz, 5.725-5.850 GHz

Bluetooth Protocol: Bluetooth 5.1

GNSS: GPS+Galileo+BeiDou

Screen: 7.02-inch LCD touchscreen, 1920×1200 pixels, 1200 cd/m² brightness

Operating Temperature: -20° to 50° C (-4° to 122° F)

Storage Temperature Range:

Less than one month: -30° to 45° C (-22° to 113° F)

One to three months: -30° to 35° C (-22° to 95° F)

Six months to one year: -30° to 30° C (-22° to 86° F)

Charging Temperature: 5° to 40° C (41° to 104° F)

Internal Battery Runtime: 3 hours 18 minutes

External Battery Runtime: 2 hours 42 minutes

Charging Type: Use a locally certified USB-C charger with a maximum power rating of 65 W and maximum voltage of 20 V, such as the DJI 65W Portable Charger.

Charging Time: 2 hours for internal battery or combined internal and external battery (when powered off and using a standard DJI charger)
