DJI Matrice 3TD drone + DJI Care 2 years

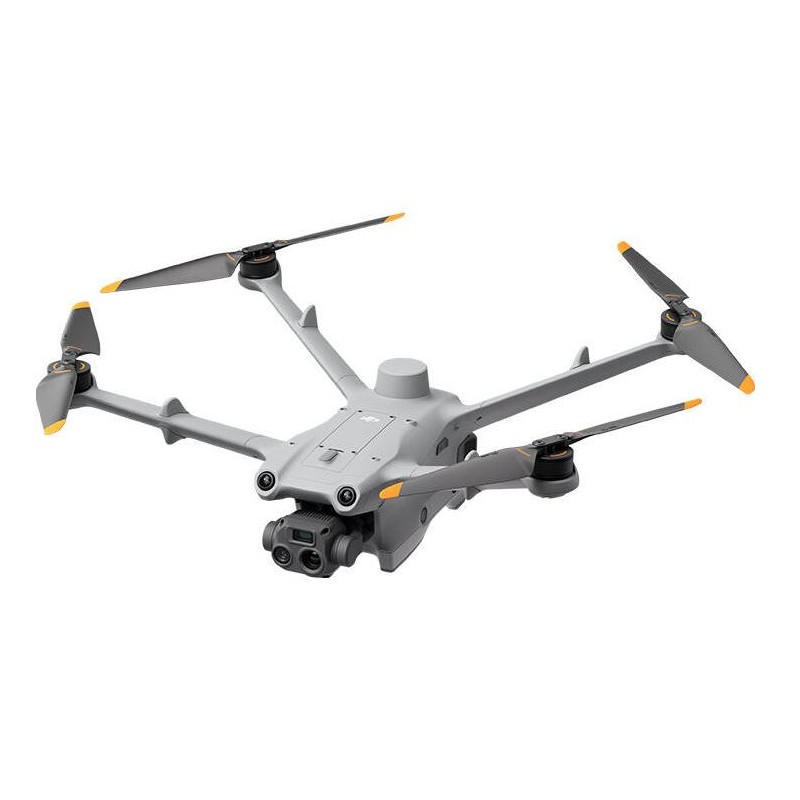

DJI Matrice 3TD Professional Drone

The DJI Matrice 3TD sets a new standard in professional drone technology. Built for seamless integration with the DJI Dock 2, it delivers unmatched durability with an IP54 rating, ensuring resistance to both dust and water. Its impressive flight autonomy of 50 minutes makes it ideal for extended missions, while the integrated RTK module provides centimeter-level positioning accuracy, a critical feature for professional-grade operations.

Advanced Imaging Capabilities

The DJI Matrice 3TD features a state-of-the-art imaging system equipped with three powerful cameras:

• A 48 MP wide-angle camera with a 1/1.32-inch CMOS sensor
• A telephoto camera with a 162 mm focal length
• An infrared camera supporting up to 28x digital zoom

With resolution reaching 1280 x 1024 in UHR mode, the drone delivers unparalleled image clarity, ensuring detailed and precise visual data for professional applications.

Resilience in Challenging Environments

Engineered for tough conditions, the DJI Matrice 3TD is IP54-certified for water and dust resistance, guaranteeing reliable performance even in harsh environments. Its robust design allows for a maximum flight time of 50 minutes, enabling uninterrupted mission execution.

When paired with the DJI Dock 2, the drone autonomously recharges and performs missions without human intervention, enhancing efficiency and reliability.

Safety and Precision

Equipped with six-directional obstacle detection sensors, the Matrice 3TD ensures optimal safety during flight. The integrated RTK module offers precise, centimeter-level positioning critical for demanding tasks. With a lifespan of 400 battery cycles, this drone provides a durable and high-performance solution tailored for complex professional needs.

Kit Contents

• DJI Matrice 3TD drone (without battery and camera)
• DJI Care Enterprise Basic 2-year activation code (must be activated on the manufacturer's website within 48 hours of launching the drone)

Technical Specifications

Aircraft - General

Weight: 1410 g

Max Takeoff Weight: 1610 g

Dimensions: 335×398×153 mm (L×W×H, without propellers)

Wheelbase: Diagonal Wheelbase: 463.2 mm, Left-Right Wheelbase: 359.9 mm, Front-Rear Wheelbase: 291.4 mm

Max Ascent Speed: 6 m/s (Normal Mode), 8 m/s (Sport Mode)

Max Descent Speed: 6 m/s (Normal Mode), 6 m/s (Sport Mode)

Max Horizontal Speed (at sea level, no wind): Normal Mode: 15 m/s flying forward, 12 m/s flying backward, 10 m/s flying sideways ; Sport Mode: 21 m/s flying forward, 18 m/s flying backward, 16 m/s flying sideways

Max Wind Speed Resistance: During Operation: 12 m/s, During Takeoff/Landing: 8 m/s

Max Takeoff Altitude: 4000 m

Max Flight Time: 50 minutes

Max Hovering Time: 40 minutes

Max Operating Radius: 10 km

Max Flight Distance: 43 km

Max Pitch Angle: 25° (Normal Mode), 25° (Sport Mode)

Max Angular Velocity: 250°/s

Global Navigation Satellite System: GPS + Galileo + BeiDou + GLONASS

Hovering Accuracy Range: Vertical: ±0.1 m (with vision positioning), ±0.5 m (with GNSS positioning), ±0.1 m (with RTK positioning) ; Horizontal: ±0.3 m (with vision positioning), ±0.5 m (with GNSS positioning), ±0.1 m (with RTK positioning)

Operating Temperature: -20° to 45° C (-4° to 113° F)

Ingress Protection Rating: IP54

Motor Model: 2607

Propeller Model: 1149, foldable, non-quick release

RTK Module: Integrated on the aircraft

Beacon: Integrated on the aircraft

Aircraft - Wide-Angle Camera

Image Sensor: DJI Matrice 3TD: 1/1.32-inch CMOS, Effective Pixels: 48 MP

Lens: DJI Matrice 3TD FOV: 82°, Format Equivalent: 24 mm, Aperture: f/1.7, Focus: 1 m to ∞

Lens Defogging: Supported

ISO Range: 100-25600

Shutter Speed: Electronic Shutter: 8-1/8000 s

Max Image Size: 8064×6048

Still Photography Modes: Single, Timed, Smart Low-Light, Panorama

Video Resolution: H.264, 4K: 3840×2160@30fps, FHD: 1920×1080@30fps

Video Bitrate: 4K: 85 Mbps, FHD: 30 Mbps

Supported File System: exFAT

Photo Format: JPEG

Video Format: MP4 (MPEG-4 AVC/H.264)

Aircraft - Tele Camera

Image Sensor: 1/2-inch CMOS, Effective Pixels: 12 MP

Lens: FOV: 15°, Format Equivalent: 162 mm, Aperture: f/4.4, Focus: 3 m to ∞

Lens Defogging: Supported

ISO Range: 100-25600

Shutter Speed: Electronic Shutter: 8-1/8000 s

Max Image Size: 4000×3000

Still Photography Modes: Single, Timed, Smart Low-Light

Video Resolution: H.264, 4K: 3840×2160@30fps, FHD: 1920×1080@30fps

Video Bitrate: 4K: 85 Mbps, FHD: 30 Mbps

Digital Zoom: 8x (56x hybrid zoom)

Aircraft - Infrared Camera (DJI Matrice 3TD)

Thermal Imager: Uncooled VOx Microbolometer

Pixel Pitch: 12 μm

Frame Rate: 30 Hz

Lens: FOV: 61°, Format Equivalent: 40 mm, Aperture: f/1.0, Focus: 5 m to ∞

Sensitivity: ≤ 50 [email protected]

Temperature Measurement Method: Spot Measurement, Area Measurement

Temperature Measurement Range: -20° to 150° C, 0° to 500° C

Palette: Various options available

Photo Format: JPEG (8-bit), R-JPEG (16-bit)

Video Resolution: Normal Mode: 640×512@30fps, UHR Infrared Image Mode: 1280×1024@30fps

Video Bitrate: 6 Mbps

Video Format: MP4 (MPEG-4 AVC/H.264)

Still Photography Modes: Single Normal Mode, Timed Normal Mode

Digital Zoom: 28x

Infrared Wavelength: 8-14 μm

Infrared Temperature Measurement Accuracy: ±2° C or ±2%

Aircraft - Gimbal

Stabilization: 3-axis mechanical gimbal (tilt, roll, pan)

Mechanical Range: Tilt: -135° to +45°, Roll: -45° to +45°, Pan: -27° to +27°

Controllable Range: Tilt: -90° to +35°, Pan: Not controllable

Max Control Speed (tilt): 100°/s

Angular Vibration Range: ±0.005°

Aircraft - Sensing

Sensing Type: The aircraft supports six-directional obstacle sensing.

Forward Measurement Range: 0.5-21 m, Detection Range: 0.5-200 m, Effective Sensing Speed: Flight Speed ≤ 15 m/s

Backward Measurement Range: 0.5-23 m, Effective Sensing Speed: Flight Speed ≤ 12 m/s

Lateral Measurement Range: 0.5-15 m, Effective Sensing Speed: Flight Speed ≤ 10 m/s

Upward Measurement Range: 0.5-21 m, Effective Sensing Speed: Flight Speed ≤ 6 m/s

Downward Measurement Range: 0.5-14 m, Effective Sensing Speed: Flight Speed ≤ 6 m/s

Operating Environment: Forward, Backward, Left, Right, and Upward: Surfaces with discernible patterns and adequate lighting; Downward: Diffuse reflective surface with diffuse reflectivity > 20%

Aircraft - Video Transmission

Video Transmission System: DJI O3 Enterprise Transmission

Live View Quality: 720p/30fps, 1080p/30fps

Operating Frequency: 2.4000-2.4835 GHz, 5.150-5.850 GHz

Antenna: 4 antennas, 2T4R

Transmitter Power (EIRP): 2.4 GHz: < 33 dBm (FCC), < 20 dBm (CE/SRRC/MIC) ; 5.1 GHz: < 23 dBm (CE) ; 5.8 GHz: < 33 dBm (FCC/SRRC), < 14 dBm (CE)

Max Transmission Distance (unobstructed, free of interference):

DJI Matrice 3TD: FCC: 15 km, CE: 8 km, SRRC: 8 km, MIC: 8 km

Max Transmission Distance (unobstructed, with interference):

Strong Interference: 1.5-3 km (FCC/CE/SRRC/MIC), Medium Interference: 3-9 km (FCC), 3-6 km (CE/SRRC/MIC), Low Interference: 9-15 km (FCC), 6-8 km (CE/SRRC/MIC)

Max Download Speed: 5 MB/s (with DJI Dock 2), 15 MB/s (with DJI RC Pro Enterprise)

Lowest Latency: Approximately 110 to 150 milliseconds (from aircraft to dock)

Antenna: 4 antennas, 2T4R

Transmitter Power (EIRP): 2.4 GHz: < 33 dBm (FCC), < 20 dBm (CE/SRRC/MIC) ; 5.1 GHz: < 23 dBm (CE) ; 5.8 GHz: < 33 dBm (FCC/SRRC), < 14 dBm (CE)

Aircraft - Storage

Supported Memory Cards: U3/Class10/V30 or above

Recommended microSD Cards:

SanDisk Extreme 32GB V30 A1 microSDHC

SanDisk Extreme PRO 32GB V30 A1 microSDHC

SanDisk Extreme 512GB V30 A2 microSDXC

Lexar 1066x 64GB V30 A2 microSDXC

Kingston Canvas Go! Plus 64GB V30 A2 microSDXC

Kingston Canvas React Plus 64GB V90 A1 microSDXC

Kingston Canvas Go! Plus 128GB V30 A2 microSDXC

Kingston Canvas React Plus 128GB V90 A1 microSDXC

Kingston Canvas React Plus 256GB V90 A2 microSDXC

Samsung PRO Plus 256GB V30 A2 microSDXC
