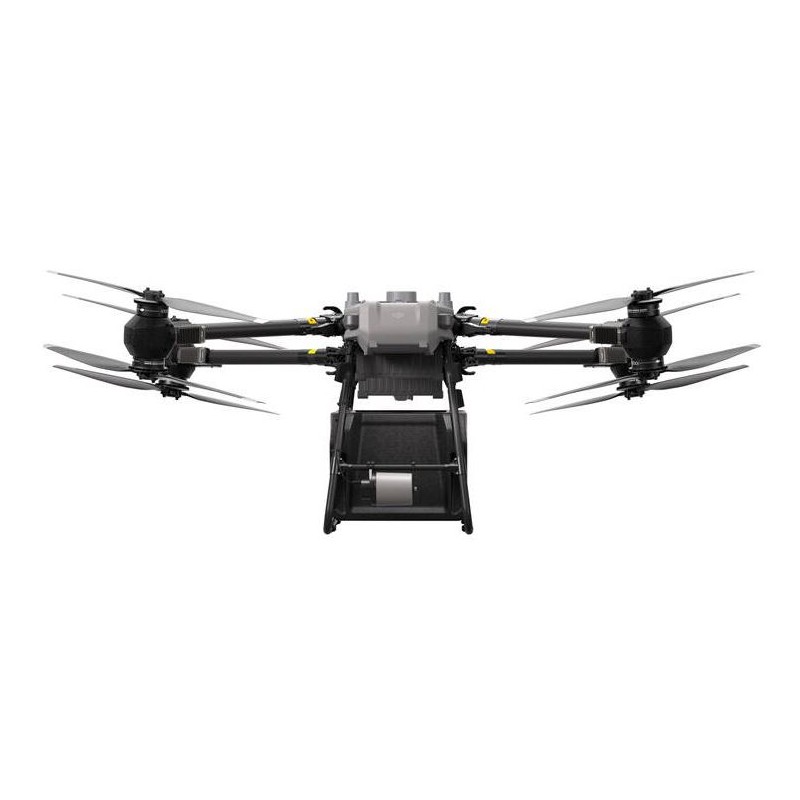

DJI FlyCart 30 Drone

The DJI FlyCart 30 introduces a groundbreaking solution for long-distance, heavy-duty aerial transport. Equipped with advanced signal transmission, intelligent features, and versatile operation modes, it sets new benchmarks for safe, economical, and efficient logistics.

Heavy Payloads, Long Distances

• 30 kg Maximum Payload
• 28 km Maximum Flight Distance Without Payload
• 16 km Flight Distance with Full Payload
• 20 m/s Maximum Speed

The first three indicators are measured in dual battery mode, ensuring reliable performance even under demanding conditions.

Designed for Extreme Environments

• 6,000 m Maximum Flight Altitude
• -20° to 45° C (-4° to 113° F) Operating Temperature
• 12 m/s Maximum Wind Resistance

Advanced Signal Transmission

• 20 km O3 Video Transmission
• 4G Enhanced Video Transmission
• Dual Operator Mode
• High-Resolution FPV Gimbal Camera

Uncompromising Safety and Intelligence

• IP55 Protection ensures durability against dust and water.
• Intelligent Obstacle Sensing combines radars and binocular vision to avoid collisions.
• Dual Battery System with redundancy ensures safe returns in case of single battery failure.
• Integrated Parachute provides emergency response for stable landings.

Convenient Features for Any Mission

• Foldable Design for portability.
• 70 L EPP Cargo Case for streamlined loading.
• Winch System for precision delivery.

Optimized for All-Weather Operations The FlyCart 30 excels in adverse conditions, withstanding extreme altitudes, temperatures, and wind speeds. Its rugged design and IP55 protection rating guarantee reliable performance across diverse environments.

Flexible Payload Configurations

• Cargo Mode offers up to 40 kg capacity for streamlined delivery.
• Winch Mode supports precise aerial drops using a retractable cable system, enhancing versatility.

Seamless Control and Monitoring The DJI RC Plus remote features a 7-inch high-bright screen and supports dual-operator mode, enabling effortless collaboration. Stable connectivity is ensured through 20 km O3 video transmission and 4G backup, providing real-time visuals and uninterrupted operations.

Efficient Delivery Management The DJI Pilot 2 and DJI DeliveryHub platforms simplify mission planning and execution:

• Monitor real-time flight and cargo status.
• Optimize routes with 2.5D mapping and terrain sensing.
• Automate tasks using route recording and replay.
• Collaborate effectively with centralized resource management tools.

Enhanced Safety Features

• Alternate Landing Sites ensure safe landings in emergencies.
• Takeoff and Landing Protection integrates sound and light prompts, propeller delay, and RTK-enabled positioning.
• Real-Time Alerts notify operators of abnormalities, ensuring proactive responses.

One-Stop Solution for Drone Delivery The DJI FlyCart 30 revolutionizes aerial logistics with its powerful combination of hardware and software, making it an indispensable tool for next-generation delivery solutions.

Package Contents

• FlyCart 30
• Cargo Box
• DJI RC Plus Remote Controller
• WB37 Remote Controller Battery (installed in the remote controller)
• 100W USB-C Charger
• Remote Controller Shoulder Strap
• Power Cable with EU Plug
• USB-A to USB-C Cable
• USB-C to USB-C Cable
• Safety Goggles
• Battery Cover
• Basic Tool Kit

Specifications

Aircraft

• Weight:
  • 42.5 kg (without battery)
  • 65 kg (with two DB2000 batteries)
• Max Takeoff Weight: 95 kg (with cargo at sea level)
• Max Diagonal Wheelbase: 2200 mm
• Dimensions:
  • 1590 x 1900 x 947 mm (LxWxH) (arms unfolded, propellers folded)
  • 2800 x 3085 x 947 mm (LxWxH) (arms & propellers unfolded)
  • 1115 x 760 x 1027 mm (LxWxH) (arms & propellers folded)
• Folding Method: Towards body
• Loadable Battery Quantity: 2
• Hovering Endurance (empty weight):
  • 29 mins (dual battery mode)
  • 15 mins (single battery mode)
    Data collected under controlled conditions.
• Hovering Endurance (max weight):
  • 18 mins (30 kg load, dual battery mode)
  • 8 mins (40 kg load, single battery mode)
• Max Flight Distance (empty weight):
  • 28 km (dual battery mode)
  • 12 km (single battery mode)
• Max Flight Distance (max weight):
  • 16 km (30 kg load, dual battery mode)
  • 8 km (40 kg load, single battery mode)
• Max Flight Time (max weight):
  • 18 mins (30 kg load, dual battery mode)
  • 9 mins (40 kg load, single battery mode)
• Operating Temperature: -20° to 45° C
• Ingress Protection Rating: IP55
• Hovering Accuracy:
  • RTK enabled: ±10 cm horizontal, ±10 cm vertical
  • RTK disabled: ±60 cm horizontal, ±30 cm vertical (radar enabled: ±10 cm)
• RTK/GNSS Frequencies:
  • RTK: GPS L1/L2, Galileo F1/F2, BeiDou B1I/B2I/B3I, Galileo E1/E5b, QZSS L1/L2
  • GNSS: GPS L1, BeiDou B1I, Galileo F1, Galileo E1, QZSS L1
• Max Pitch Angle: 30°
• Max Ascent Speed: 5 m/s
• Max Descent Speed: 3 m/s (vertical), 5 m/s (tilted)
• Max Horizontal Speed: 20 m/s
• Max Flight Altitude: 6000 m (without payload)
• Max Wind Speed Resistance: 12 m/s

Propulsion System

• Stator Size: 100x33 mm
• Motor KV Value: 48 rpm/V
• Max Motor Power: 4000 W/rotor
• Propellers Material: Carbon fiber composite
• Propellers Diameter: 54 inches
• Propellers Type: Foldable double-blade

LED Light

• Illumination Distance: 10 m
• Illumination Mode: 60 Hz, automatic

DJI O3 Image Transmission

• Signal Range: 20 km (FCC), 8 km (CE/SRRC/MIC)
• Operating Frequency: 2.4 GHz and 5.8 GHz
• Data Security: AES-256
• ADS-B: Supported

Radar and Vision Systems

• Phased Array Radar: Altitude detection up to 200 m
• Binocular Vision: FOV horizontal 90°, vertical 106°
• FPV Camera: 1920x1440 resolution, DFOV 149°, 30fps

Cargo Case

• Dimensions: 754x472x385 mm (outer), 573x416x305 mm (inner)
• Material: EPP with aluminum alloy frame
• Weight: Approx. 3 kg

Parachute

• Max Payload: ≤ 95 kg
• Dimensions: 300x200x120 mm
• Weight: Approx. 2.1 kg
• Operating Temperature: -20° to 45° C

Battery (DJI DB2000)

• Capacity: 38000 mAh
• Voltage: 52.22 V
• Weight: Approx. 11.3 kg
• Charging Power: Max 5700 W

Remote Controller (DJI RC Plus)

• Screen: 7.02-inch, 1920x1200, 1200 nits brightness
• Battery Life: 6 hours (built-in + external)
• Ingress Protection: IP54
• Connectivity: Wi-Fi 6, Bluetooth 5.1

Guaranteed Software Updates Until: 2026/12/31
