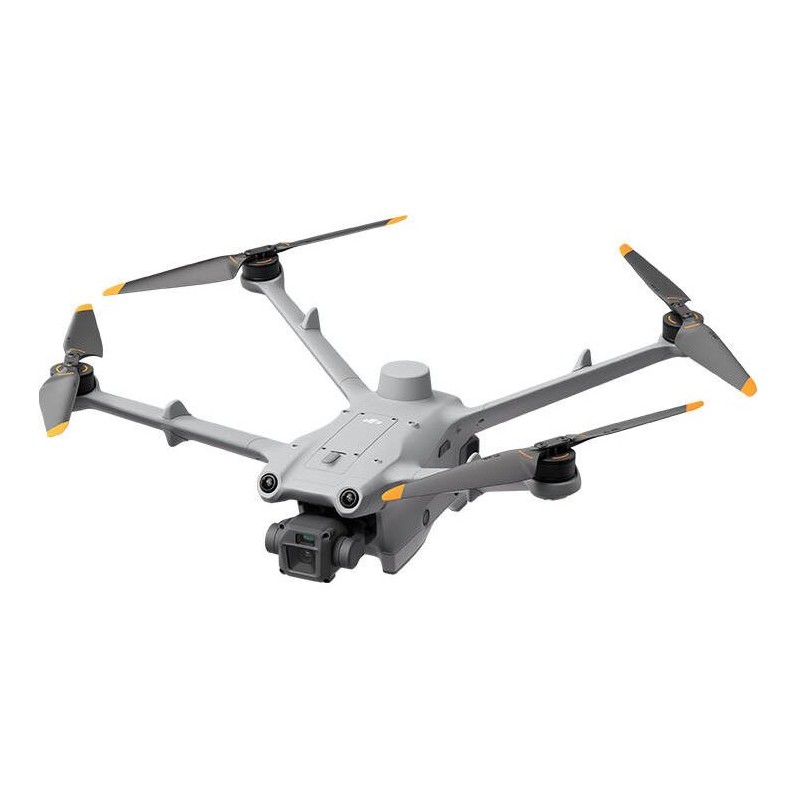

DJI Matrice 3D drone + DJI Care 2 years

DJI Matrice 3D for DJI Dock 2

Equipped with a 20 MP wide-angle camera (24 mm) featuring a 4/3 CMOS sensor and a mechanical shutter, as well as a 12 MP telephoto camera (162 mm) with a 1/2 CMOS sensor, the DJI Matrice 3D is perfectly suited for routine mapping flights. It is ideal for inspection tasks and construction-related operations, offering precision and reliability in demanding environments.

Included in the package:

• DJI Matrice 3D Drone (without battery and controller)
• DJI Care Enterprise Basic 2-Year Code (activation required within 48 hours of first use on the manufacturer’s website)

Specifications:

Aircraft - General

Weight: 1410 g

Max Takeoff Weight: 1610 g

Dimensions: 335×398×153 mm (L×W×H, without propellers)

Wheelbase: Diagonal Wheelbase: 463.2 mm, Left-Right Wheelbase: 359.9 mm, Front-Rear Wheelbase: 291.4 mm

Max Ascent Speed: 6 m/s (Normal Mode), 8 m/s (Sport Mode)

Max Descent Speed: 6 m/s (Normal Mode), 6 m/s (Sport Mode)

Max Horizontal Speed (at sea level, no wind): Normal Mode: 15 m/s flying forward, 12 m/s flying backward, 10 m/s flying sideways ; Sport Mode: 21 m/s flying forward, 18 m/s flying backward, 16 m/s flying sideways

Max Wind Speed Resistance: During Operation: 12 m/s, During Takeoff/Landing: 8 m/s

Max Takeoff Altitude: 4000 m

Max Flight Time: 50 minutes

Max Hovering Time: 40 minutes

Max Operating Radius: 10 km

Max Flight Distance: 43 km

Max Pitch Angle: 25° (Normal Mode), 25° (Sport Mode)

Max Angular Velocity: 250°/s

Global Navigation Satellite System: GPS + Galileo + BeiDou + GLONASS

Hovering Accuracy Range: Vertical: ±0.1 m (with vision positioning), ±0.5 m (with GNSS positioning), ±0.1 m (with RTK positioning) ; Horizontal: ±0.3 m (with vision positioning), ±0.5 m (with GNSS positioning), ±0.1 m (with RTK positioning)

Operating Temperature: -20° to 45° C (-4° to 113° F)

Ingress Protection Rating: IP54

Motor Model: 2607

Propeller Model: 1149, foldable, non-quick release

RTK Module: Integrated on the aircraft

Beacon: Integrated on the aircraft

Aircraft - Wide-Angle Camera

Image Sensor: DJI Matrice 3D: 4/3 CMOS, Effective Pixels: 20 MP

Lens: DJI Matrice 3D FOV: 84°, Format Equivalent: 24 mm, Aperture: f/2.8-f/11, Focus: 1 m to ∞

Lens Defogging: Supported

ISO Range: 100-6400

Shutter Speed: Electronic Shutter: 8-1/8000 s, Mechanical Shutter: 8-1/2000 s

Max Image Size: 5280×3956

Still Photography Modes: Single: 20 MP, Timed: 20 MP, 0.7/1/2/3/5/7/10/15/20/30/60 s, Smart Low-Light: 20 MP, Panorama: 20 MP (raw image); 100 MP (stitched image)

Video Resolution: H.264, 4K: 3840×2160@30fps, FHD: 1920×1080@30fps

Video Bitrate: 4K: 130 Mbps, FHD: 70 Mbps

Supported File System: exFAT

Photo Format: JPEG

Video Format: MP4 (MPEG-4 AVC/H.264)

Aircraft - Tele Camera

Image Sensor: 1/2-inch CMOS, Effective Pixels: 12 MP

Lens: FOV: 15°, Format Equivalent: 162 mm, Aperture: f/4.4, Focus: 3 m to ∞

Lens Defogging: Supported

ISO Range: 100-6400

Shutter Speed: Electronic Shutter: 8-1/8000 s

Max Image Size: 4000×3000

Photo Format: JPEG

Video Format: MP4 (MPEG-4 AVC/H.264)

Still Photography Modes: Single: 12 MP, Timed: 12 MP, 0.7/1/2/3/5/7/10/15/20/30/60 s, Smart Low-Light: 12 MP

Video Resolution: H.264, 4K: 3840×2160@30fps, FHD: 1920×1080@30fps

Video Bitrate: 4K: 85 Mbps, FHD: 30 Mbps

Digital Zoom: 8x (56x hybrid zoom)

Aircraft - Gimbal

Stabilization: 3-axis mechanical gimbal (tilt, roll, pan)

Mechanical Range: Tilt: -135° to +45°, Roll: -45° to +45°, Pan: -27° to +27°

Controllable Range: Tilt: -90° to +35°, Pan: Not controllable

Max Control Speed (tilt): 100°/s

Angular Vibration Range: ±0.005°

Aircraft - Sensing

Sensing Type: The aircraft supports six-directional obstacle sensing.

Forward Measurement Range: 0.5-21 m, Detection Range: 0.5-200 m, Effective Sensing Speed: Flight Speed ≤ 15 m/s

Backward Measurement Range: 0.5-23 m, Effective Sensing Speed: Flight Speed ≤ 12 m/s

Lateral Measurement Range: 0.5-15 m, Effective Sensing Speed: Flight Speed ≤ 10 m/s

Upward Measurement Range: 0.5-21 m, Effective Sensing Speed: Flight Speed ≤ 6 m/s

Downward Measurement Range: 0.5-14 m, Effective Sensing Speed: Flight Speed ≤ 6 m/s

Operating Environment: Forward, Backward, Left, Right, and Upward: Surfaces with discernible patterns and adequate lighting; Downward: Diffuse reflective surface with diffuse reflectivity > 20%

Aircraft - Video Transmission

Video Transmission System: DJI O3 Enterprise Transmission

Live View Quality: 720p/30fps, 1080p/30fps

Operating Frequency: 2.4000-2.4835 GHz, 5.150-5.850 GHz

Antenna: 4 antennas, 2T4R

Transmitter Power (EIRP): 2.4 GHz: < 33 dBm (FCC), < 20 dBm (CE/SRRC/MIC) ; 5.1 GHz: < 23 dBm (CE) ; 5.8 GHz: < 33 dBm (FCC/SRRC), < 14 dBm (CE)

Max Transmission Distance (unobstructed, free of interference):

DJI Matrice 3D: FCC: 15 km, CE: 8 km, SRRC: 8 km, MIC: 8 km (Measured in ideal outdoor conditions; actual range may vary. Pay attention to RTH reminders in DJI FlightHub 2.)

Max Transmission Distance (unobstructed, with interference):

Strong Interference: 1.5-3 km (FCC/CE/SRRC/MIC), Medium Interference: 3-9 km (FCC), 3-6 km (CE/SRRC/MIC), Low Interference: 9-15 km (FCC), 6-8 km (CE/SRRC/MIC)

Max Download Speed: 5 MB/s (with DJI Dock 2), 15 MB/s (with DJI RC Pro Enterprise)

Lowest Latency: Approximately 110 to 150 milliseconds (from aircraft to dock)

Antenna: 4 antennas, 2T4R

Transmitter Power (EIRP): 2.4 GHz: < 33 dBm (FCC), < 20 dBm (CE/SRRC/MIC) ; 5.1 GHz: < 23 dBm (CE) ; 5.8 GHz: < 33 dBm (FCC/SRRC), < 14 dBm (CE)

Aircraft - Storage

Supported Memory Cards: U3/Class10/V30 or above

Recommended microSD Cards:

SanDisk Extreme 32GB V30 A1 microSDHC

SanDisk Extreme PRO 32GB V30 A1 microSDHC

SanDisk Extreme 512GB V30 A2 microSDXC

Lexar 1066x 64GB V30 A2 microSDXC

Kingston Canvas Go! Plus 64GB V30 A2 microSDXC

Kingston Canvas React Plus 64GB V90 A1 microSDXC

Kingston Canvas Go! Plus 128GB V30 A2 microSDXC

Kingston Canvas React Plus 128GB V90 A1 microSDXC

Kingston Canvas React Plus 256GB V90 A2 microSDXC

Samsung PRO Plus 256GB V30 A2 microSDXC

Aircraft - Battery

Capacity: 7811 mAh

Voltage: 14.76 V

Max Charging Voltage: 17.0 V

Type: Li-ion 4S

Chemical System: LiNiMnCoO2

Energy: 115.2 Wh

Weight: 544 g

Cycle Count: 400

Charging Temperature: 5° to 45° C

Aircraft - Power Adapter

Input: 100-240 V (AC), 50/60 Hz, 2.5 A

Output Power: 100 W

Output: Max output power of 100 W (total)

Aircraft - Charging Base

Input: USB-C: 5-20 V, 5.0 A

Output: Battery Port: 12-17 V, 8.0 A

Rated Power: 100 W

Charging Type: One battery charged at a time

Charging Temperature: 5° to 40° C

Others

Guaranteed software updates until 2025/12/31
