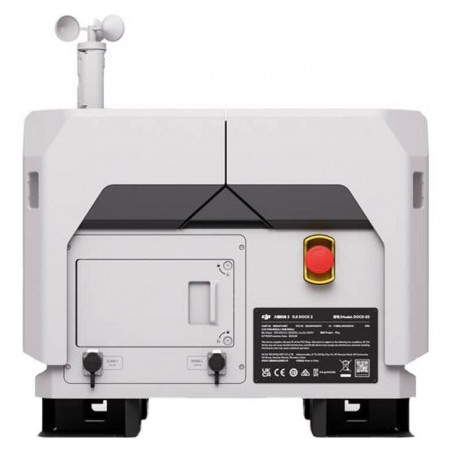

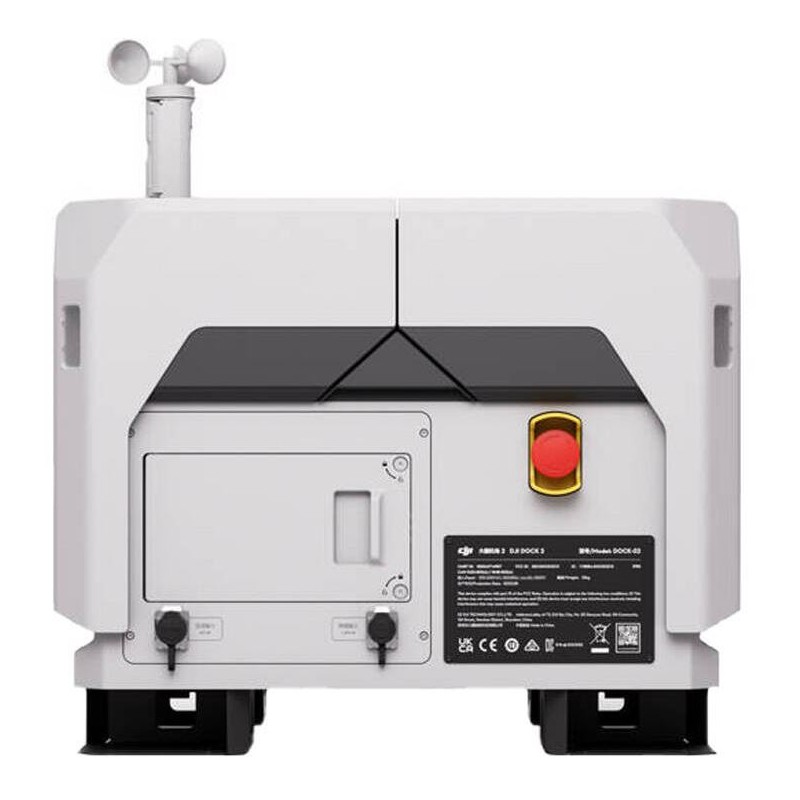

DJI Dock 2 Docking station
The more capable yet noticeably smaller DJI Dock 2 is designed to deploy Matrice 3D or 3TD drones with ease and security. It is lightweight, offers advanced operational capabilities, and incorporates cloud-based intelligent functions to enhance efficiency and quality in automated operations.
7297.54 $ net price (non-EU countries)
Viktoriia Turzhanska
Product Manager
/
+48723706700
+48723706700
+48723706700
[email protected]
Anatolii Livashevskyi
Product Manager /
+48721808900 +48721808900 +48721808900
[email protected]
Michał Skrok
Product Manager
/
+48721807900 +48721807900
[email protected]
Description
The more capable yet noticeably smaller DJI Dock 2 is designed to deploy Matrice 3D or 3TD drones with ease and security. It is lightweight, offers advanced operational capabilities, and incorporates cloud-based intelligent functions to enhance efficiency and quality in automated operations.
Key Features
- Lightweight and Easy to Deploy
- IP55 Ingress Protection
- 10km Max Effective Operating Radius
- Integrated Environmental Monitoring System
- Cloud-Based Modeling
- FlyTo Tasks
- Private Deployment
- Third-Party Payload Support
Lightweight Design
DJI Dock 2 is 75% smaller and 68% lighter than its predecessor, making it easily transportable by just two individuals. This design ensures flexible installation and significantly reduces installation costs.
Efficient Site Evaluation
The aircraft can quickly assess the surrounding environment using vision sensors before deployment. This enables it to determine GNSS signal strength efficiently, reducing site selection time from five hours to twelve minutes or less.
Rugged, Reliable, Recharged
- IP55 Dustproof and Waterproof: Designed for durability, DJI Dock 2 has an IP55 rating for dust and water resistance, allowing it to operate reliably in harsh climates and environments.
- Integrated Environmental Monitoring System: Equipped with sensors for rainfall, wind speed, and temperature, the Dock monitors real-time weather changes. Combined with online weather forecasting, it can issue timely warnings or terminate flight tasks via DJI FlightHub 2 to minimize risks.
- Improved Landing Stability: Next-gen image recognition technology ensures precise landing by identifying positioning markers on the landing pad. The new slide-ramp centering design further enhances landing accuracy.
- Built-In Backup Battery: In case of a power outage, the Dock can operate independently for over five hours using its backup battery, ensuring sufficient time for the aircraft to return and land safely.
- Six-Month Maintenance Interval: With high reliability and protection standards, the Dock requires maintenance only about every six months, reducing human resource costs.
- Abnormal Condition Notifications: If task failures or emergencies occur, DJI FlightHub 2 sends immediate email notifications. This feature allows operators to trace and troubleshoot issues effectively based on detailed information provided.
1x DJI Dock 2
1x Anemometer
4x Anchor
1x Ethernet cable connector
1x Power cable connector
1x Screwdriver
- Product Name: DJI Dock 2
- Total Weight: 34 kg (without aircraft). Actual weight may vary due to batch material differences and external factors.
- Dimensions:
- Dock Cover Opened: 1228×583×412 mm (L×W×H)
- Dock Cover Closed: 570×583×465 mm (L×W×H)
(Dimensions exclude the wind speed gauge height of 145 mm but include the mounting base brackets height of 55 mm.)
- Input Voltage: 100-240 V (AC), 50/60 Hz
- Input Power: Max 1000 W
- Operating Temperature: -25° to 45° C (-13° to 113° F). Below -20° C (-4° F), the dock enters standby mode, and flight tasks cannot be performed.
- Ingress Protection Rating: IP55
- Number of Drones Accommodated: 1
- Max Allowable Landing Wind Speed: 8 m/s
- Max Operating Altitude: 4000 m
- Receiving Frequency: Supports GPS, BeiDou2, BeiDou3, GLONASS, and Galileo satellite systems.
- Positioning Accuracy: Horizontal: 1 cm + 1 ppm (RMS); Vertical: 2 cm + 1 ppm (RMS).
- Output Voltage: 28 V DC
- Charging Time: Approximately 32 minutes (from 20% to 90% in a controlled environment of 25° C/77° F).
- System Type: O3 Enterprise
- Operating Frequency:
- 2.4000–2.4835 GHz
- 5.725–5.850 GHz
- Antenna Design: Built-in with four antennas, supporting intelligent switching (2T4R).
- Transmitter Power (EIRP): Varies by region and frequency band (e.g., <33 dBm for FCC at both frequencies).
- Operating Voltage: 28 V DC
- Type: TEC Air Conditioning
- Battery Capacity: 12 Ah
- Output Voltage: 12 V
- Type: Lead-acid battery with over five hours of life in optimal conditions. Note that during power outages, functions like aircraft charging and air conditioning are unavailable.
- Ethernet Port Speed: Supports up to 10/100/1000 Mbps adaptive Ethernet connections.
Supports various sensors, including wind speed, rainfall, ambient temperature, water immersion, in-cabin temperature, and humidity sensors.
Both internal and external cameras feature:
- Resolution: 1920×1080
- Field of View (FOV): 151°
- Auxiliary Light: White light
- AC Power Port Protection: Rated at 20 kA; meets EN/IEC standards for Type II/Class II protection.
- Ethernet Port Protection: Rated at 10 kA; meets EN/IEC standards for Category C protection.
- Applications: DJI Pilot 2 for deployment and commissioning via DJI RC Pro Enterprise.
- Cloud Platforms: Default support for DJI FlightHub 2 and third-party platforms via DJI Cloud API.
- Expansion: Open protocol support through DJI Cloud API and edge computing for external data communication.
Data sheet
