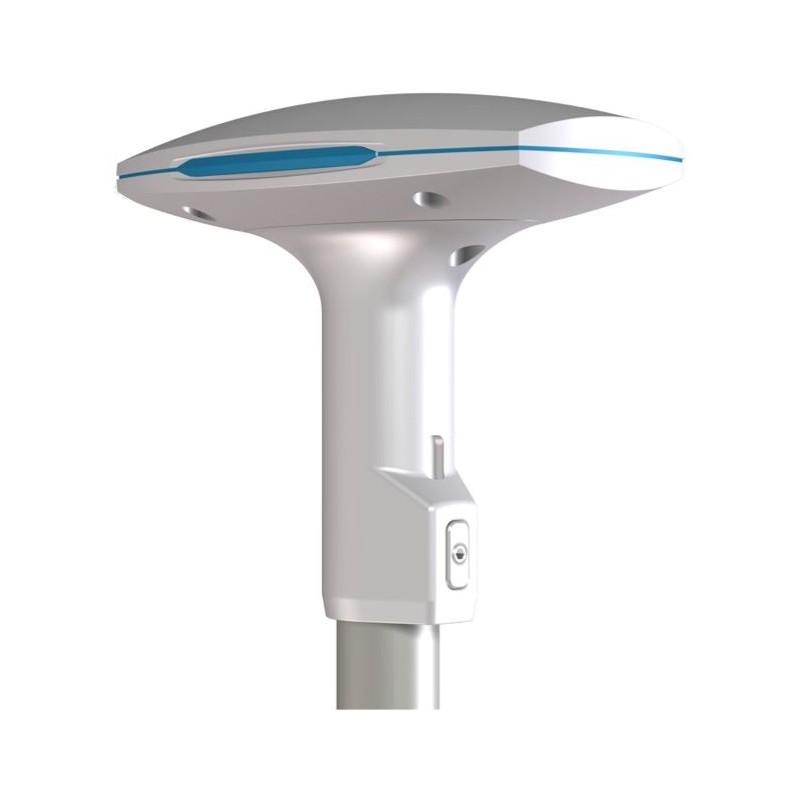

Thrane LT-1000 Navigational Reference Unit (51-100142)

The LT-1000 Navigation Reference Unit (NRU) represents a cutting-edge maritime heading sensor with an integrated GNSS/GPS receiver, developed by Lars Thrane A/S. Tailored for both leisure and professional maritime sectors, the LT-1000 NRU adheres to all requisite standards and certifications for global maritime navigation equipment.

Performance Features:

Compact yet highly advanced, the LT-1000 NRU integrates 12 precision sensors including magnetometers, gyros, accelerometers, barometer, thermometer, and GNSS/GPS receiver. Leveraging sensor fusion and Kalman filtering, it delivers real-time data such as true heading, roll, pitch, position, ground speed, course over ground, air pressure, and temperature with exceptional precision and resolution. Equipped with advanced technologies including Kalman filtering, magnetic variation calculation based on the World Magnetic Model (WMM), and compensation for soft and hard iron, it ensures accurate navigation data in diverse conditions. The LT-1000 NRU also supports multiple satellite systems (GPS, GPS & GLONASS, or GPS & BeiDou) and Satellite-Based Augmentation Systems (SBAS) such as EGNOS, WAAS, and MSAS.

Installation & Navigation Features:

Easy to mount on a 1” pole (with optional roof mount), the LT-1000 NRU features a single cable supporting NMEA 0183, NMEA 2000, and power. Its built-in magnetometer calibration algorithm swiftly compensates for heading deviation, ensuring reliable navigation data output. An external PC installation and service software is available for optional configuration and maintenance.

Additional Features:

• True heading, magnetic heading, deviation, variation, roll, pitch, UTC time and date, position, satellite information, ground speed, course over ground, air pressure, and temperature.
• 72-ch. GNSS (GPS/GLONASS/BeiDou) satellite receiver with SBAS correction.
• Standard and Adaptive deviation calibration algorithm.
• Simultaneous support for NMEA 0183 and NMEA 2000.
• Configurable NMEA 0183 sentences and data rate.
• Factory calibrated and functionally tested over temperature prior to shipment.
• Worldwide maritime certification.

System Components:

• LT-1000 NRU
• Pole Mount & Roof Mount
• 10m Cable Multi 8-pin Simple-Cut (M)
• Screw-in Conn. NMEA 2000 Micro-C
• A4 Stainless Steel Wood Screw
• Quick Installation Guide
• Safety Instructions Sheet
• Unit Test Sheet

Specifications:

Certification & Standards: CE, IEC 60945, IEC 60950, EN 300 440, FCC, IC, RCM, RoHS, NMEA 0183, NMEA 2000.

Equipment Class: Protected, according to IEC 60945.

Operational Temperature: -40°C to +55°C (-40°F to +131°F).

Waterproof Rating: IP46.

Warranty: 2 years.

Maintenance: None.
