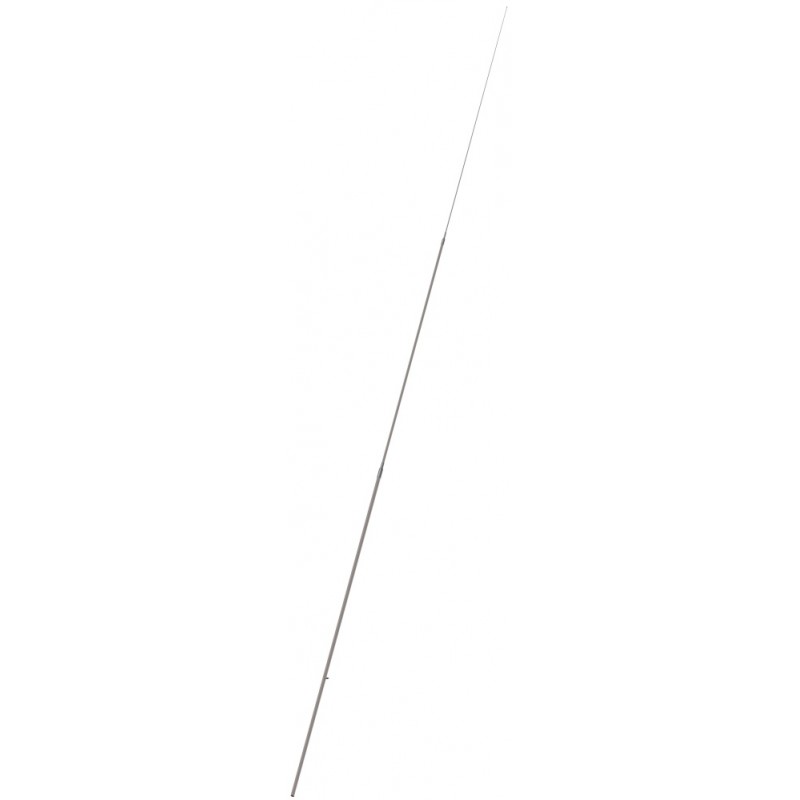

Scan Antenna HF9000 TX/RX 9 m three-part LF/HF Fibreglass Antenna, with brackets (13900-012)

Product Overview

• Professional HF Antenna: A 9-meter high-performance HF antenna designed for professional applications.
• GMDSS Compatibility: Specifically engineered for GMDSS installations, ensuring reliable communication.
• Durable Construction: Features a rugged design with chrome-plated solid brass joints for enhanced durability and long-term performance.
• Rail Mounting Design: Optimized for rail or pole installations with a Rail Bracket Kit (Large).
• Side Feed Configuration: Side fed via an open single wire for efficient signal transmission.
• Omni-Directional Radiation: Provides consistent 360-degree signal coverage.

Packaging Information

• Packaging Type: Robust carton tube for safe transportation.
• Dimensions: Ø 86 mm x 4000 mm.
• Weight: Approximately 11.0 kg.

Electrical Specifications

• Frequency Range: Operates from 1.4 to 30 MHz, covering MF and HF bands.
• Polarisation: Vertical for optimal signal propagation.
• Maximum Input Power: Handles up to 1200 W PEP.
• Static Capacitance: 100 pF for stable operation.
• Insulation Resistance: 10 GOhm to minimize signal loss.
• Electric Length: 7870 mm.

Mechanical Details

• Color: White for a clean, professional appearance.
• Height: 9 meters.
• Weight: 7.1 kg.
• Diameter: Tapers from Ø 40 mm to Ø 5 mm.
• Mounting Method: Compatible with a Rail Bracket Kit (Large) for secure mounting on rail or pole setups (Ø 30 - 90 mm).
• Mounting Instructions: Included in the package.
• Materials: Constructed from PU-painted heavy-duty glass-fiber tubes and chromed solid brass for excellent durability.
• Wind Resistance: Capable of withstanding survival wind speeds of up to 55 m/s (125 mph).
• Temperature Range: Operates reliably between -55°C and +70°C, tested to IEC 60068-2-1 and IEC 60068-2-2 standards.
• Connector: Screw terminal for secure connections.
• Cable: Cable not supplied; requires an open single wire.
• Serial Number: Clearly displayed on the product label for identification.

Ordering Details

• Part Number: 13900-012 (brackets included).
